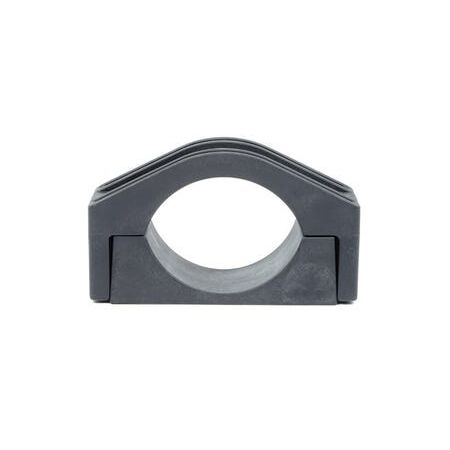

Dutch Clamp SE Type 100-135 | Short-Circuit Resistant | Easy Installation | Durable Steel by Cabac
Dutch clamp SE type 100-135 made from durable steel—ideal for securing pipes and cables. Built for contractors and DIY enthusiasts, it offers easy installation and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dutch Clamp SE Type 100-135 | Durable Steel Construction | Easy Installation by Matchmaster
Brand: Cabac
SKU: DC-SE100-135
Alternatively Known As: Dutch Clamp SE Cable Clamp, High Voltage Cable Clamp, Medium Voltage Cable Clamp, Cable Cleat SE Type
Technical Specifications
- Suitable for cables with diameter from 15 mm to 170 mm
- Manufactured from glass fibre reinforced polyamide
- Resistant to short-circuit currents up to 202kA
- Temperature range: -40°C to 125°C (225°C momentarily)
- Certified to NEN-EN-IEC 61914:2009
- Non-magnetic and non-conductive
- Resistant to oils, chemicals, UV, ozone, salt, moisture, acids, and nuclear radiation
- Dimensions (H x L x W): 50mm x 150mm x 130mm
- Weight: 0.5 kg
Key Features
- Resistant to short-circuit currents up to 202kA
- Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, acids, and nuclear radiation
- Self-extinguishing V-0 (UL94), Halogen free
- Temperature range from -40°C to 125°C (225°C momentarily)
- No magnetism or conductivity
- Custom mounting available and very simple installation
- Fastening materials can be supplied to size
- No oxidation, corrosion or sharp angles
- Recyclable
- Lifetime product warranty
- Certified in accordance with NEN-EN-IEC 61914:2009
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper mounting and compliance with electrical safety standards.
Applications
- Fastening of single or multicore medium and high voltage cables
- Electrical installations requiring short-circuit resistant cable clamps
- Industrial and utility cable management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Recyclable materials reduce environmental impact
- Halogen-free and self-extinguishing materials enhance safety and reduce toxic emissions
Warranty Information
Lifetime product warranty provided by the manufacturer.
Available Now
The Cabac Dutch Clamp SE Type 100-135 is available now for immediate purchase. Ideal for electrical and industrial cable management applications requiring high short-circuit resistance.
