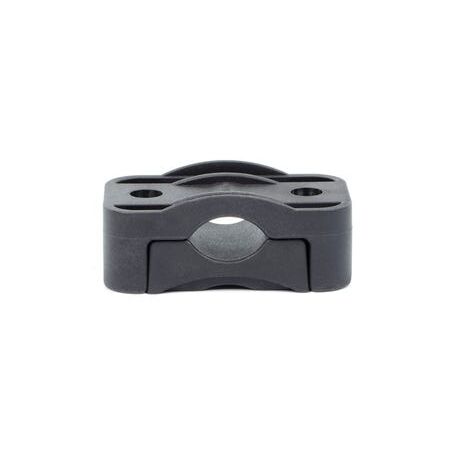

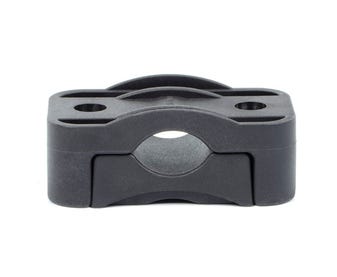

Dutch Clamp SE Type 15-26 | Durable Steel | Easy Installation | Versatile Use by Cabac

BRAND: CABAC
SKU: DC-SE15-26
$21.50 List price: $26.10
+
The Dutch Clamp SE Type 15-26 is designed for secure mounting with durable steel construction and easy installation—ideal for various applications. Built for professionals, it ensures reliable performance and versatility in use.

Product Name/Title: Dutch Clamp SE Type 15-26 | Durable Steel Construction | Easy Installation | Versatile Use by Matchmaster

Brand: Cabac

SKU: DC-SE15-26

Alternatively Known As: Dutch Clamp SE Cable Clamp, Medium Voltage Cable Clamp, High Voltage Cable Cleat, Short Circuit Resistant Cable Clamp

Technical Specifications
  • Suitable for cable diameters from 15 mm to 170 mm
  • Manufactured from glass fibre reinforced polyamide
  • Certified to NEN-EN-IEC 61914:2009
  • Temperature range: -40°C to 125°C (225°C momentarily)
  • Halogen free and self-extinguishing V-0 (UL94)
  • Non-magnetic and non-conductive
  • Dimensions (H x L x W): 50mm x 150mm x 100mm
  • Weight: 0.3 kg
Key Features
  • Resistant to short-circuit currents up to 202kA
  • Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, acids, and nuclear radiation
  • Self-extinguishing V-0 (UL94), Halogen free
  • Temperature range from -40°C to 125°C (225°C momentarily)
  • No magnetism or conductivity
  • Custom mounting available and very simple installation
  • Fastening materials can be supplied to size
  • No oxidation, corrosion or sharp angles
  • Recyclable
  • Lifetime product warranty
  • Certified in accordance with NEN-EN-IEC 61914:2009
Professional Installation Requirements
  • Installation should be performed by qualified professionals to ensure proper mounting and compliance with electrical safety standards.
Applications
  • Fastening of single or multicore medium and high voltage cables in electrical installations
  • Suitable for industrial, commercial, and utility cable management requiring short-circuit resistant clamps
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Recyclable materials reduce environmental impact
  • Durable construction extends product life, reducing waste
Warranty Information

Lifetime product warranty provided by the manufacturer.

Available Now

The Cabac DUTCH CLAMP SE TYPE 15-26 is available for immediate purchase, ideal for secure cable management in medium and high voltage electrical installations.
