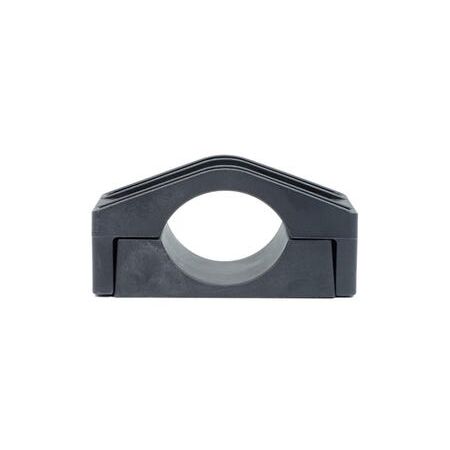

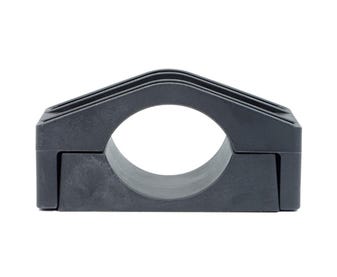

Dutch Clamp SE Type 75-100 | Short-Circuit Resistant | Durable Steel Construction | Easy Installation by Cabac
The Dutch Clamp SE Type 75-100 is designed for secure fastening with durable steel construction and easy installation—ideal for electrical and construction applications. Built for professionals, it ensures reliable performance in various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dutch Clamp SE Type 75-100 | Durable Steel Construction | Easy Installation | Versatile Use by Matchmaster
Brand: Cabac
SKU: DC-SE75-100
Alternatively Known As: Dutchclamp SE Cable Clamp, High Voltage Cable Clamp, Short Circuit Resistant Cable Clamp
Technical Specifications
- Material: Glass fibre reinforced polyamide
- Short-circuit current resistance: up to 202kA
- Temperature range: -40°C to 125°C (225°C momentarily)
- Certified to NEN-EN-IEC 61914:2009
- Halogen free, self-extinguishing V-0 (UL94)
- Non-magnetic and non-conductive
- Dimensions (H x L x W): 75mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Resistant to short-circuit currents up to 202kA
- Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, acids, and nuclear radiation
- Self-extinguishing V-0 (UL94), Halogen free
- Temperature range from -40°C to 125°C (225°C momentarily)
- No magnetism or conductivity
- Custom mounting available and very simple installation
- Fastening materials can be supplied to size
- No oxidation, corrosion or sharp angles
- Recyclable
- Lifetime product warranty
- Certified in accordance with NEN-EN-IEC 61914:2009
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper fastening and compliance with electrical safety standards.
Applications
- Fastening of single or multicore medium and high voltage cables
- Suitable for cables with diameter from 15 mm to 170 mm
- Electrical installations requiring short-circuit resistant cable clamps
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Recyclable materials reduce environmental impact
- Halogen free and self-extinguishing materials enhance safety and reduce toxic emissions
Warranty Information
Lifetime product warranty provided by the manufacturer.
Available Now
The Cabac Dutch Clamp SE Type 75-100 is available now for immediate purchase. Ideal for electrical installations requiring secure and short-circuit resistant cable fastening.
