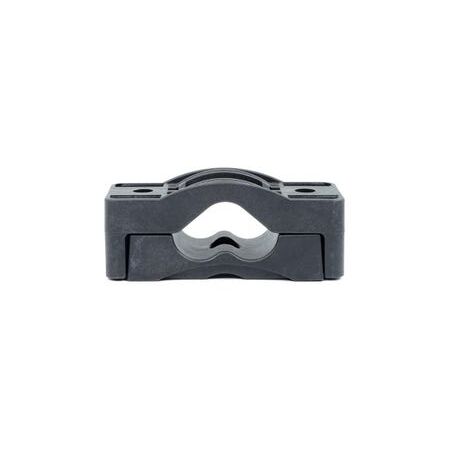

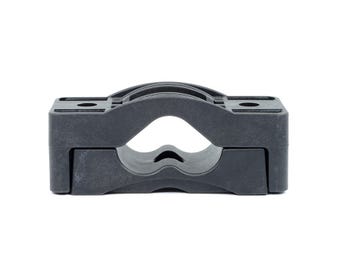

Dutch Clamp Triple Type 27-38 | Durable Steel | High Short-Circuit Resistance | Versatile Mounting Options by Cabac
The Dutch Clamp Triple Type 27-38 is designed for secure mounting with durable steel construction and versatile mounting options—ideal for various applications. Built for professionals, it ensures reliable performance and ease of use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dutch Clamp Triple Type 27-38 | Durable Steel Construction | Versatile Mounting Options by Matchmaster
Brand: Cabac
SKU: DC-TPL27-38
Alternatively Known As: Trefoil Cable Clamp, Triple Cable Clamp, Dutchclamp Triple Clamp, Cable Cleat Triple Type
Technical Specifications
- Material: Glass fibre reinforced polyamide
- Short-circuit current resistance: up to 150kA
- Temperature range: -40°C to 125°C (225°C momentarily)
- Certified to NEN-EN-IEC 61914:2009
- Non-magnetic and non-conductive
- Halogen free and self-extinguishing V-0 (UL94)
- Dimensions (H x L x W): 100mm x 100mm x 100mm
- Weight: 0.3 kg
Key Features
- Resistant to short-circuit currents/forces up to 150kA
- Stackable design for flexible installation
- Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, acids, and nuclear radiation
- Self-extinguishing V-0 (UL94) and halogen free
- Temperature range from -40°C to 125°C (225°C momentarily)
- No magnetism or conductivity
- Custom mounting options available with simple installation
- Fastening materials can be supplied to size
- No oxidation, corrosion or sharp angles
- Recyclable material
- Lifetime product warranty
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure proper mounting and compliance with electrical safety standards.
Applications
- Mounting three low, medium or high voltage cables in a triangular (trefoil) formation
- Electrical installations requiring high short circuit force resistance
- Industrial and commercial cable management systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable glass fibre reinforced polyamide
- Halogen free and self-extinguishing material reduces environmental impact
- Durable design reduces need for frequent replacements
Warranty Information
Lifetime product warranty provided by the manufacturer.
Available Now
The Cabac Dutch Clamp Triple Type 27-38 is available for immediate purchase, ideal for electrical installations requiring secure and durable cable management.
