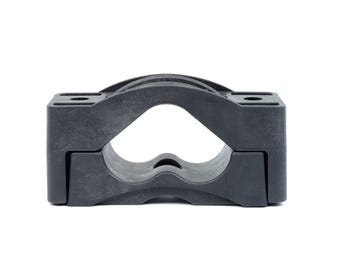

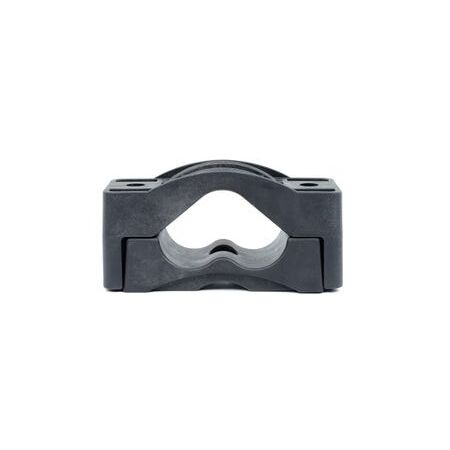

Dutch Clamp Triple Type | 38-51mm | Durable Steel Construction | Easy Installation by Cabac
Dutch clamp triple type designed for 38-51mm pipes—ideal for plumbing and construction applications. Built for durability with robust steel construction, ensuring secure and reliable fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dutch Clamp Triple Type | 38-51mm | Durable Steel Construction | Easy Installation by Matchmaster
Brand: Cabac
SKU: DC-TPL38-51
Alternatively Known As: Trefoil Cable Clamp, Triple Cable Clamp, Dutch Triple Clamp, Cable Cleat Triple Type
Technical Specifications
- Material: Glass fibre reinforced polyamide
- Short-circuit current resistance: Up to 150kA
- Temperature range: -40°C to 125°C (225°C momentarily)
- Certified to NEN-EN-IEC 61914:2009
- Self-extinguishing V-0 (UL94) rating
- Halogen free
- Non-magnetic and non-conductive
- Dimensions (H x L x W): 100mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Resistant to short-circuit currents/forces up to 150kA
- Stackable design for flexible installation
- Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, acids, and nuclear radiation
- Self-extinguishing V-0 (UL94) and halogen free
- Temperature range from -40°C to 125°C (225°C momentarily)
- No magnetism or conductivity
- Custom mounting options available
- Fastening materials can be supplied to size
- No oxidation, corrosion or sharp angles
- Recyclable material
- Lifetime product warranty
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper mounting and compliance with electrical safety standards.
Applications
- Mounting three low, medium or high voltage cables in a triangular (trefoil) formation
- Ideal for installations with high short circuit forces
- Cable management in industrial and electrical infrastructure
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable glass fibre reinforced polyamide
- Halogen free and self-extinguishing material reduces environmental hazards
- Durable design reduces need for frequent replacements
Warranty Information
Lifetime product warranty provided by the manufacturer.
Available Now
The Cabac Dutch Clamp Triple Type 38-51 is available for immediate purchase, ideal for electrical cable management in industrial and commercial applications.
