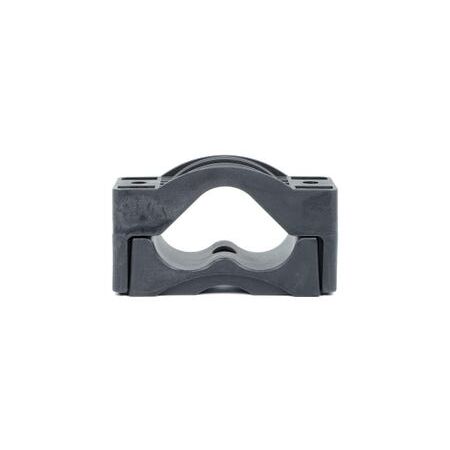

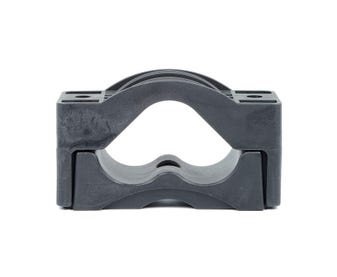

Dutch Clamp Triple Type 51-69 | Durable Steel | Easy Installation | Versatile Use by Cabac
The Dutch Clamp Triple Type 51-69 is designed for secure fastening with durable steel construction and easy installation—ideal for various applications. Built for professionals and DIY enthusiasts, it offers versatility and reliability in every project.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dutch Clamp Triple Type 51-69 | Durable Steel Construction | Easy Installation | Versatile Use by Dutch
Brand: Cabac
SKU: DC-TPL51-69
Alternatively Known As: Trefoil Cable Clamp, Triple Cable Clamp, Dutchclamp Triple Clamp, Cable Cleat Triple Type
Technical Specifications
- Material: Glass fibre reinforced polyamide
- Short-circuit current resistance: up to 150kA
- Temperature range: -40°C to 125°C (225°C momentarily)
- Certified in accordance with NEN-EN-IEC 61914:2009
- Self-extinguishing V-0 (UL94), halogen free
- Non-magnetic and non-conductive
- Dimensions (H x L x W): 100mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Resistant to short-circuit currents/forces up to 150kA
- Stackable design for flexible installation
- Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, acids, and nuclear radiation
- Self-extinguishing V-0 (UL94) and halogen free
- Temperature range from -40°C to 125°C (225°C momentarily)
- No magnetism or conductivity
- Custom mounting available with simple installation
- Fastening materials can be supplied to size
- No oxidation, corrosion or sharp angles
- Recyclable material
- Lifetime product warranty
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals to ensure proper mounting and compliance with safety standards.
Applications
- Mounting three low, medium or high voltage cables in a triangular (trefoil) formation
- Ideal for installations with high short circuit forces
- Cable management in industrial and electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable glass fibre reinforced polyamide
- Halogen free and self-extinguishing material reduces environmental hazards
- Durable design reduces need for frequent replacements
Warranty Information
Lifetime product warranty provided by the manufacturer.
Available Now
The Cabac Dutch Clamp Triple Type 51-69 is available for immediate purchase, ideal for electrical installations requiring secure and durable cable management solutions.
