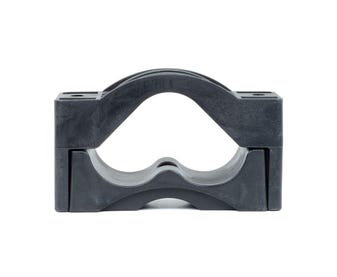

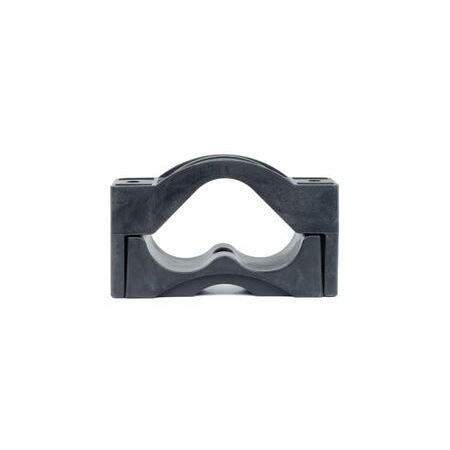

Dutch Clamp Triple Type 69-90 | 150kA Short-Circuit Resistance | Stackable Design | Durable Steel by Cabac
The Dutch Clamp Triple Type 69-90 is designed for secure mounting with durable steel construction and easy installation—ideal for electrical and construction applications. Built for professionals, it ensures reliable support for various setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dutch Clamp Triple Type 69-90 | Durable Steel Construction | Easy Installation by Matchmaster
Brand: Cabac
SKU: DC-TPL69-90
Alternatively Known As: Trefoil Cable Clamp, Triple Cable Clamp, Dutchclamp Triple Clamp, High Voltage Cable Clamp
Technical Specifications
- Material: Glass fibre reinforced polyamide
- Short-circuit current resistance: up to 150kA
- Temperature range: -40°C to 125°C (225°C momentarily)
- Certified to NEN-EN-IEC 61914:2009
- Non-magnetic and non-conductive
- Resistant to oils, chemicals, UV, ozone, salt, moisture, acids, and nuclear radiation
- Self-extinguishing V-0 (UL94) rating
- Stackable design
- Dimensions (H x L x W): 90mm x 69mm x 90mm
- Weight: 0.5 kg
Key Features
- Resistant to short-circuit currents/forces up to 150kA
- Stackable design for flexible installation
- Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, acids, and nuclear radiation
- Self-extinguishing V-0 (UL94) and halogen free
- Temperature range from -40°C to 125°C (225°C momentarily)
- No magnetism or conductivity
- Custom mounting options available with simple installation
- Fastening materials can be supplied to size
- No oxidation, corrosion or sharp angles
- Recyclable material
- Lifetime product warranty
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper mounting and compliance with electrical safety standards.
Applications
- Mounting three low, medium or high voltage cables in a triangular (trefoil) formation
- Electrical installations requiring resistance to high short circuit forces
- Industrial and commercial cable management systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable glass fibre reinforced polyamide
- Halogen free and self-extinguishing material reduces environmental impact
- Durable design reduces need for frequent replacements
Warranty Information
Lifetime product warranty provided by the manufacturer.
Available Now
The Cabac Dutch Clamp Triple Type 69-90 is available for immediate purchase, ideal for electrical installations requiring secure and durable cable management solutions.
