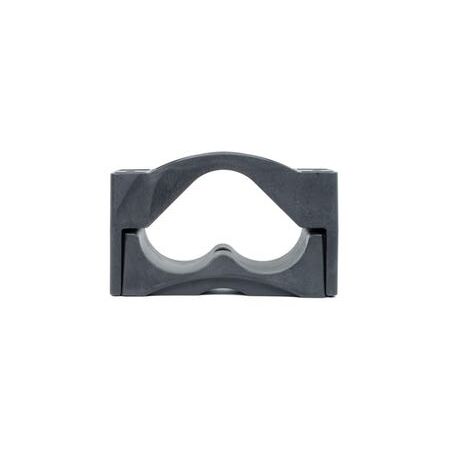

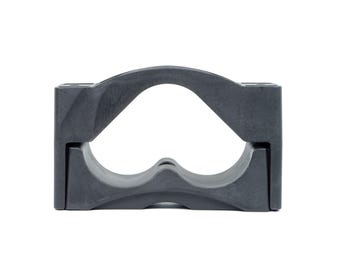

Dutch Clamp Triple Type | 90-118 mm | Durable Steel Construction | Easy Installation by Cabac
Dutch clamp triple type designed for 90-118 mm pipes—ideal for plumbing and construction applications. Built for durability with robust steel construction, ensuring easy installation and reliable support.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dutch Clamp Triple Type | 90-118 mm | Durable Steel Construction | Easy Installation by Matchmaster
Brand: Cabac
SKU: DC-TPL90-118
Alternatively Known As: Trefoil Cable Clamp, Triple Cable Clamp, Dutch Triple Clamp, Cable Cleat Triple Type
Technical Specifications
- Material: Glass fibre reinforced polyamide
- Short-circuit current resistance: Up to 150kA
- Temperature range: -40°C to 125°C (225°C momentarily)
- Certified to NEN-EN-IEC 61914:2009
- Halogen free and self-extinguishing V-0 (UL94)
- Non-magnetic and non-conductive
- Resistant to oils, chemicals, UV, ozone, salt, moisture, acids, and nuclear radiation
- Dimensions (H x L x W): 90mm x 150mm x 120mm
- Weight: 0.5 kg
Key Features
- Resistant to short-circuit currents/forces up to 150kA
- Stackable design for flexible installation
- Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, acids, and nuclear radiation
- Self-extinguishing V-0 (UL94), Halogen free
- Temperature range from -40°C to 125°C (225°C momentarily)
- No magnetism or conductivity
- Custom mounting available with simple installation
- Fastening materials can be supplied to size
- No oxidation, corrosion, or sharp angles
- Recyclable material
- Lifetime product warranty
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure proper mounting and compliance with electrical safety standards.
Applications
- Mounting three low, medium, or high voltage cables in a triangular (trefoil) formation
- Electrical installations requiring high short circuit force resistance
- Industrial and commercial cable management systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable glass fibre reinforced polyamide
- Halogen free and self-extinguishing material reduces environmental hazards
- Durable design reduces need for frequent replacements
Warranty Information
Lifetime product warranty provided by the manufacturer.
Available Now
The Cabac Dutch Clamp Triple Type 90-118 is available for immediate purchase, ideal for electrical cable management in industrial and commercial applications.
