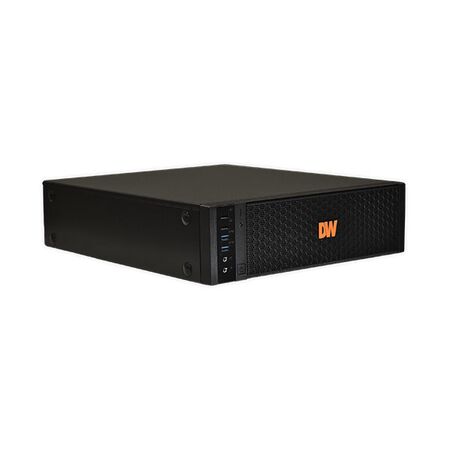

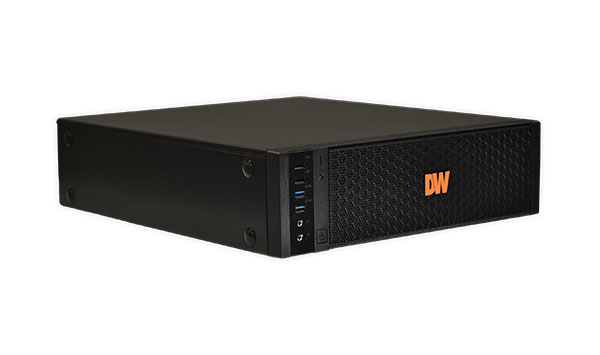

DW Server BJ-DX1 80 Mbps Dual Network Ports Linux Ness
Ness DW server features 80 Mbps throughput, dual network ports and Linux. Ideal for CCTV video management installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DW BJ-DX1 Server, Blackjack DX1 Server, Digital Watchdog DX1 IP Video Server, CCTV Recording Server
Technical Specifications
- Model: BJ-DX1
- Part Number: 123-212-SP
- Operating System: Linux Ubuntu pre-installed on SSD
- Video Management Software: DW Spectrum IPVMS Server
- Processor: Intel Celeron
- Memory: 8 GB
- Maximum Recording Throughput: 80 Mbps
- Network Interfaces: 2 x 1G Ethernet RJ45 ports
- Storage: 1 x SSD for operating system and software; 2 x SATA ports
- Maximum Internal Storage: Up to 2 x 20 TB HDD, with hard drives not included
- Video Outputs: 1 x True HD, 1 x DVI-D, 1 x D-Sub; one display output at a time
- Remote Clients: Windows, Linux Ubuntu and Mac
- Mobile Applications: iOS and Android apps available
- Form Factor: Slim desktop
- Power Supply: 300 W
- Operating Temperature: 5 °C to 40 °C
- Operating Humidity: 20% to 90% RH
- Certification: NDAA and TAA compliant
- Warranty Specification: 3 years parts and labour, return-to-base warranty
- Dimensions (H x L x W): 97mm x 402mm x 335mm
- Weight: 7.1 kg
Key Features
- Designed for recording and managing multiple IP cameras
- 80 Mbps video recording throughput
- Dual Gigabit Ethernet ports for network connectivity
- Linux Ubuntu and DW Spectrum IPVMS pre-installed
- Supports ONVIF-conformant IP cameras
- SSD supplied for the operating system and VMS software
- Expandable SATA storage with support for up to 2 x 20 TB HDDs
- Hard drives are not included
- Includes USB keyboard and mouse
- Slim desktop chassis for CCTV control-room or equipment-room installations
- DW Spectrum recording licences are available separately
Professional Installation Requirements
- Installation and configuration should be performed by a suitably qualified security or CCTV integrator. Network configuration, camera commissioning, storage setup and connection to mains power should follow the equipment manufacturer's instructions and applicable Australian requirements.
Applications
- IP CCTV video recording
- Commercial and industrial surveillance systems
- Small to medium multi-camera security installations
- Centralised video management using DW Spectrum IPVMS
- Security control rooms and monitoring stations
- ONVIF-based multi-brand IP camera systems
Standards & Compliance
- AS/NZS 62676.1.1:2020 is applicable to general requirements for video surveillance systems used for security applications
- AS/NZS 62676.1.2:2020 is applicable to video transmission performance requirements within video surveillance systems
- Product-specific Australian Standards certification was not stated in the available manufacturer documentation
Environmental Benefits
- Expandable storage can extend the usable service life of the server and reduce replacement waste
- SSD-based operating-system storage avoids requiring a separate mechanical drive for the OS
- Supports centralised digital recording, reducing reliance on physical video media
Warranty Information
Ness Corporation lists Digital Watchdog cameras, recorders and servers with a 3-year warranty from date of purchase. The product datasheet specifies a 3-year parts and labour return-to-base warranty. Servers with a Dell service tag may be subject to Dell warranty terms.
Available Now
Available through Ness Corporation and authorised Australian security-equipment distributors; confirm current stock and lead time before ordering.
