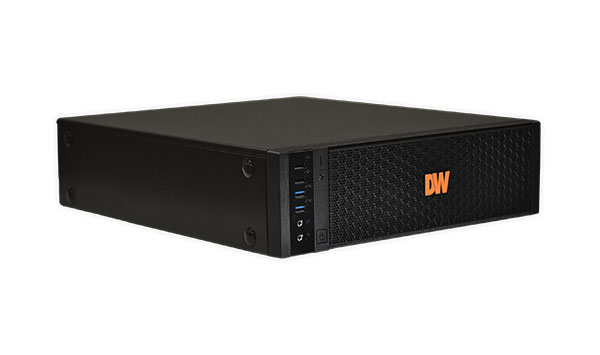

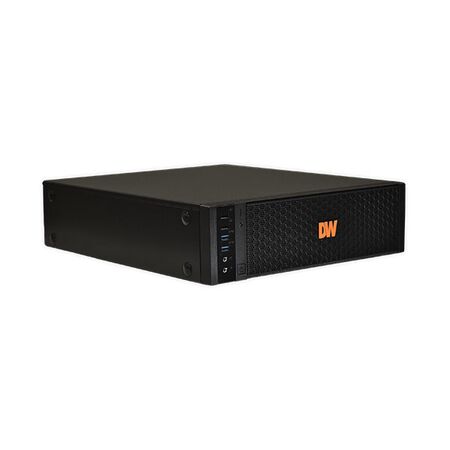

DW Server BJ-DX3 180 Mbps Dual Network Ports Linux Ness
Ness DW server features 180 Mbps throughput, dual network ports and Linux. Ideal for CCTV video management installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DW BJ-DX3 Server, Digital Watchdog Blackjack DX3 Server, DX3 IP Video Management Server
Technical Specifications
- Manufacturer: Digital Watchdog
- Model: BJ-DX3
- Operating System: Linux Ubuntu
- VMS Software: DW Spectrum IPVMS Server pre-installed
- Processor: Intel Core i3
- Memory: 16 GB
- Recording Throughput: Up to 180 Mbps
- Storage Interface: 2 x SATA ports
- Maximum Storage: Up to 2 x 20 TB HDDs; hard drives not included
- Network Ports: 1 x 1G Ethernet and 1 x 2.5G Ethernet, RJ45
- Video Outputs: 1 x DisplayPort and 1 x True HD output
- Power Supply: 300 W
- Operating Temperature: 5°C to 40°C
- Operating Humidity: 20% to 90% RH
- Form Factor: Slim desktop
- Camera Compatibility: ONVIF-conformant IP cameras
- Certification and Compliance: NDAA and TAA compliant
- Included Accessories: USB keyboard and mouse
- Dimensions (H x L x W): 98.5mm x 402mm x 334mm
- Weight: 7.09 kg
Key Features
- Up to 180 Mbps IP video recording throughput
- Linux Ubuntu operating system and DW Spectrum IPVMS pre-installed
- Dual network connectivity for flexible CCTV network design
- Supports recording and management of IP cameras of any resolution
- Two SATA storage bays for optional surveillance-grade hard drives
- Supports ONVIF-conformant IP cameras
- Dual-stream recording capability
- Slim desktop chassis suitable for security-system server installations
- DW Spectrum recording licences are purchased separately
- Hard drives are not included
Professional Installation Requirements
- Configuration should be performed by a suitably qualified CCTV, security or IT technician. Any fixed mains electrical work must be completed by a licensed electrician in accordance with applicable Australian wiring requirements.
Applications
- IP CCTV video management
- Commercial and industrial security surveillance
- Multi-camera recording and remote video serving
- Small to medium enterprise video surveillance systems
- Centralised management of ONVIF network cameras
- Scalable DW Spectrum IPVMS installations
Standards & Compliance
- AS/NZS 62676.1.1:2020 - relevant system requirements for video surveillance systems used in security applications
- AS/NZS 3000:2018 - relevant requirements where the server is connected as part of a fixed electrical installation
Environmental Benefits
- Hard drives are optional, allowing storage capacity to be matched to the installation and avoiding unnecessary hardware at supply
- Centralised IP video management can reduce the need for multiple separate recording devices
- Slim desktop form factor reduces installation space and associated material requirements
- Upgradeable storage can extend the useful service life of the server and reduce replacement waste
Warranty Information
3-year parts and labour return-to-base warranty through the Ness Australian distribution channel. Warranty excludes removal, reinstallation and transport costs, subject to the manufacturer's terms.
Available Now
Available through Ness and authorised Australian security-system distributors, subject to current distributor stock.
