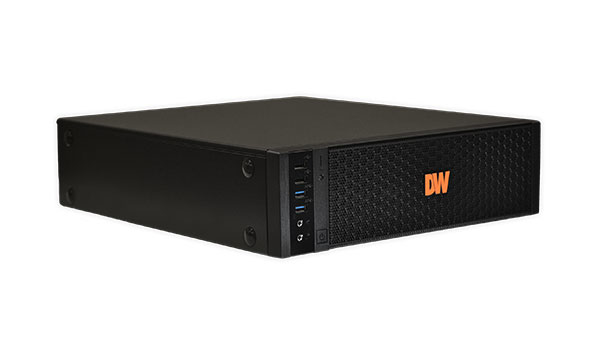

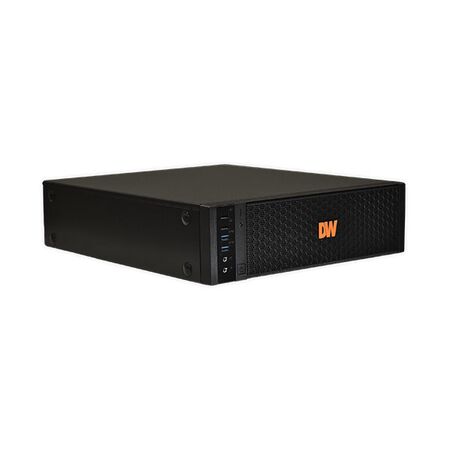

DW Server BJ-DX5 360 Mbps Dual Network Ports Linux Ness
Ness DW server features 360 Mbps throughput, dual network ports and Linux. Ideal for CCTV video management installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DW BJ-DX5 Server, Blackjack DX5 Server, Digital Watchdog DX5 Video Server, CCTV Recording Server
Technical Specifications
- Recording Throughput: Up to 360 Mbps
- Operating System: Linux Ubuntu
- Video Management Software: DW Spectrum IPVMS pre-installed
- Processor: Intel Core i5
- Memory: 16 GB
- Network Ports: 2 x Ethernet ports
- Storage: Factory-fitted SSD for operating system and software; 2 x SATA bays for up to 2 x 20 TB HDDs
- Video Outputs: True HD, DVI-D and D-Sub for system configuration
- Form Factor: Slim desktop
- Power Supply: 300 W
- Operating Temperature: 5°C to 40°C
- Operating Humidity: 20% to 90% RH
- Camera Compatibility: ONVIF-conformant IP cameras
- Included Accessories: USB keyboard and mouse
- Hard Drives: Not included
- Compliance Claims: NDAA and TAA compliant
- Dimensions (H x L x W): 97mm x 402mm x 335mm
- Weight: 5.5 kg
Key Features
- Supports recording and management of IP cameras at up to 360 Mbps
- Dual network ports for network segregation or flexible system integration
- Linux Ubuntu and DW Spectrum IPVMS installed on a separate SSD
- Supports up to 40 TB of additional internal HDD storage
- Designed for single- and multi-sensor IP cameras of varying resolutions
- Dual-stream recording capability
- Once-off DW Spectrum recording licences with no annual software fee
- Slim desktop enclosure for CCTV control-room and server-room installations
Professional Installation Requirements
- Configuration, network integration, storage installation and CCTV system commissioning should be performed by a suitably qualified security or IT installer. Follow the server, electrical and network installation requirements applicable to the site.
Applications
- IP CCTV recording and video management
- Commercial and industrial security surveillance
- Multi-camera security installations
- Control-room video monitoring
- Retail, education, healthcare and transport surveillance systems
Standards & Compliance
- AS/NZS 62676.1.1:2020 is the applicable system-level reference for video surveillance systems used in security applications; the product datasheet does not state certification to this standard.
- AS/NZS 62368.1 may apply to the safety of the audio/video and information-technology equipment configuration; product-specific certification should be confirmed from the supplied compliance documentation.
Environmental Benefits
- Hard drives are not included, allowing storage capacity to be selected, upgraded or replaced without replacing the complete server
- Replaceable SATA storage supports longer service life and can reduce electronic waste
- SSD-based operating-system storage provides lower mechanical wear than a hard-disk operating-system drive
- Expandable storage architecture supports system growth without immediate replacement of the server chassis
Warranty Information
Ness Corporation lists Digital Watchdog cameras, recorders and servers with a 3-year warranty from date of purchase. Warranty claims are subject to Ness Corporation terms and return-to-base conditions. ([ness.com.au](https://ness.com.au/product-warranty))
Available Now
Available through Ness Corporation and authorised Australian security-equipment distributors, subject to current product range and stock status.
