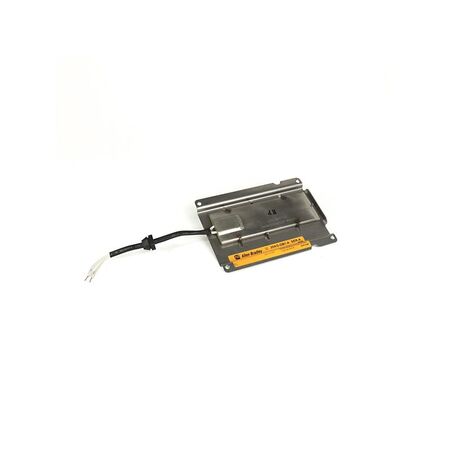

Dynamic Brake Resistor | Small Duty Internal Mount | 400-690V AC Compatible | by Allen-Bradley
The Dynamic Brake Resistor is designed for small duty applications, featuring an internal mount suitable for C frame drives. With compatibility for 400-690V AC input systems, it’s perfect for industrial motor control and variable frequency drives requiring dynamic braking. This resistor enhances energy efficiency by dissipating excess energy during braking, making it ideal for manufacturing and automation equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Dynamic Brake Resistor
- Duty: Small
- Mounting: Internal
- Input Voltage: 400-690V AC
- Frame: C Frame
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 5 kg
Key Features
- Dynamic brake resistor for small duty applications
- Internal mount design suitable for C frame drives
- Compatible with 400-690V AC input systems
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with industrial motor control systems to ensure safety and compliance.
Applications
- Industrial motor control systems
- Variable frequency drives requiring dynamic braking
- Manufacturing and automation equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps improve energy efficiency by dissipating excess energy during braking
- Reduces wear on mechanical braking components
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 20ADDB1C Dynamic Brake Resistor is available now for immediate purchase, ideal for industrial motor control and automation applications.
