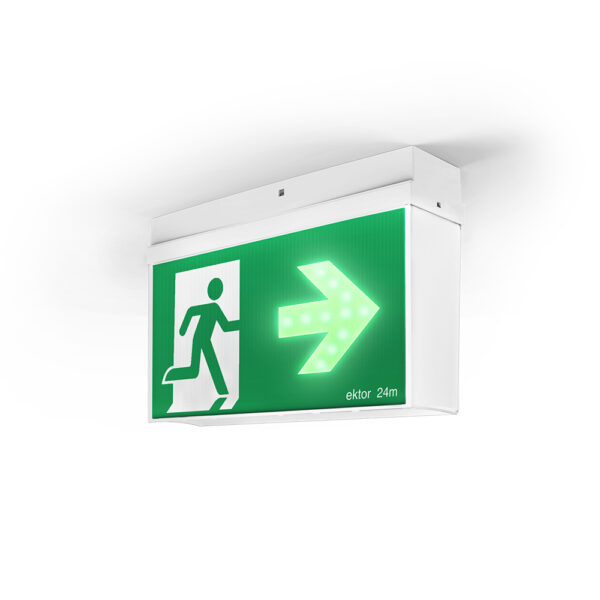

Dynamic Emergency Exit Light | Wireless Driver | Maintained Mode | 90 Minutes Duration | by Ektor
The Dynamic Emergency Exit Light with wireless driver is designed for reliable emergency lighting in commercial and public spaces. Featuring a maintained mode with a 90-minute duration and a viewing distance of 24 meters, this light ensures safety during power outages. Built with a durable polycarbonate body and IP20 rating, it's perfect for wall or ceiling installation in offices, retail, and hospitality venues.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Wireless Emergency Exit Light, Maintained Emergency Exit Sign, Dynamic Exit Light
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Maximum Wattage: 6 W
- Standby Power: 2.5 W
- Driver Type: Wireless (IEC62386-104) with DT1
- Emergency Duration: 90 minutes
- Emergency Output Power: 3200 mW
- Viewing Distance: 24 meters
- Installation Type: Wall or Ceiling
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Wiring Type: Re-wireable terminal block (5 pin)
- Emergency Classification: C0:C12.5, C90:C20
- Replacement Battery Code: 01303
- Product Design Life: 8 years
- Dimensions (H x L x W): 150mm x 100mm x 300mm
- Weight: 1.5 kg
Key Features
- Wireless driver compliant with IEC62386-104 with DT1 for test and monitoring
- Maintained emergency mode with 90 minutes duration
- Polycarbonate body and diffuser with IP20 rating
- Emergency output power of 3200 mW and viewing distance of 24 meters
- Re-wireable terminal block (5 pin) for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with Australian electrical and safety standards.
Applications
- Commercial buildings emergency exit lighting
- Public spaces requiring maintained emergency lighting
- Wall or ceiling installation in offices, retail, and hospitality venues
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during standby and emergency operation
- Wireless monitoring reduces the need for manual testing, lowering maintenance resource use
Warranty Information
6 years return to base warranty for commercial use.
Available Now
The Ektor Lynk Mercury Dynamic Emergency Exit Light with Wireless is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
