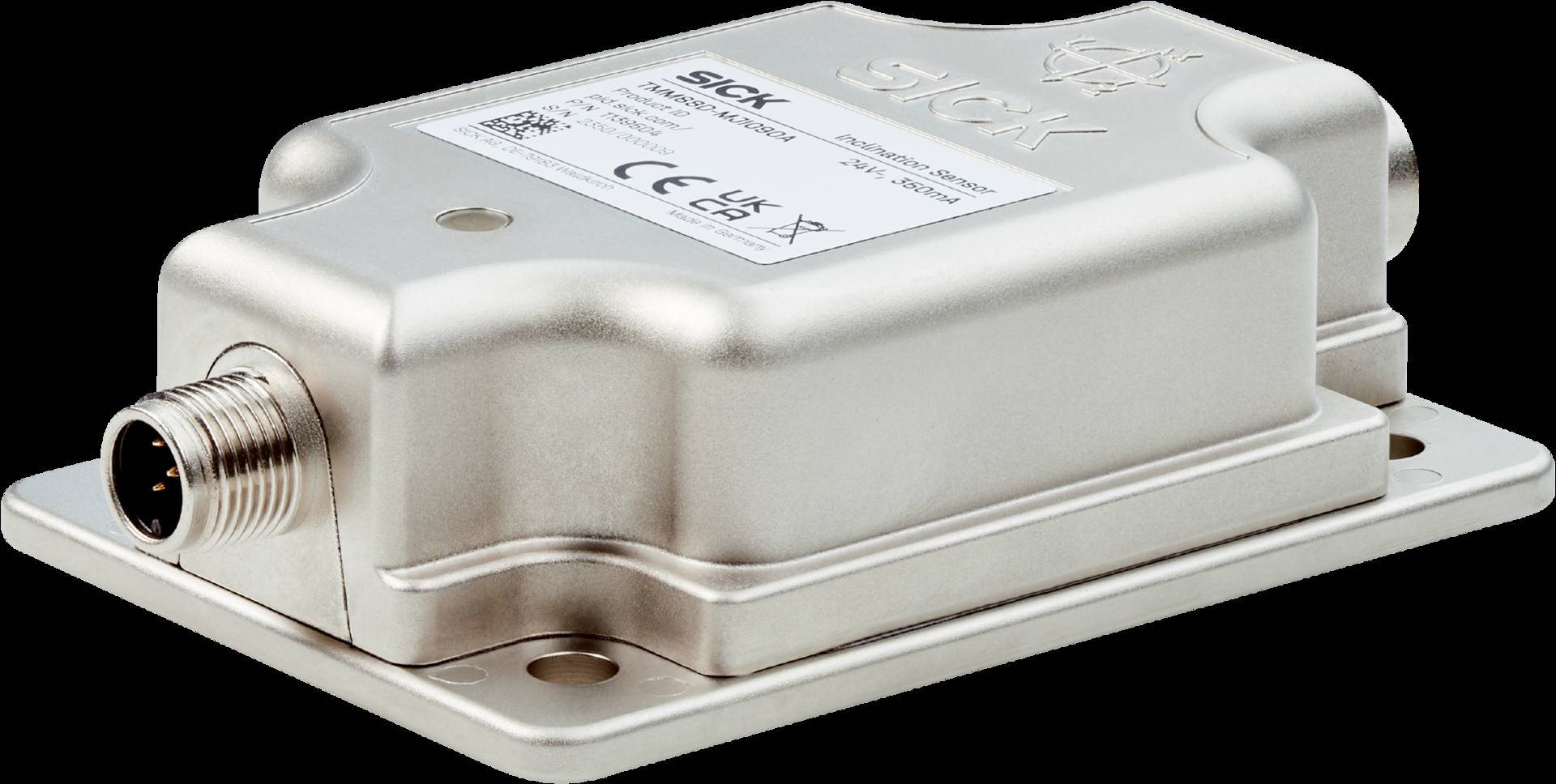

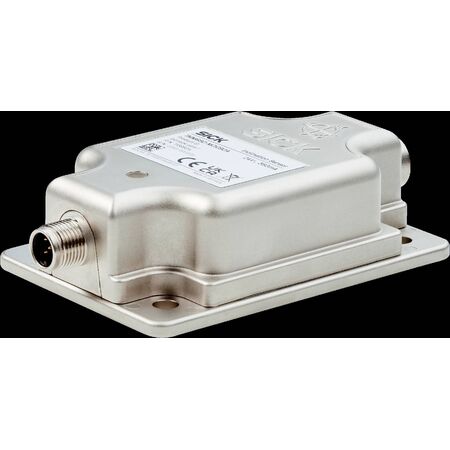

Dynamic Inclination Sensor TMS/TMM88 | 2-Axis Measurement | IP67/69 Rated | High Accuracy 0.1° | by SICK
The TMS/TMM88 Dynamic inclination sensor offers precise 2-axis measurement with high accuracy up to 0.1°, making it ideal for industrial automation and motion control systems. Designed for harsh environments, this rugged sensor features an IP67/69 enclosure rating and supports CANopen and SAE J1939 communication interfaces, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dynamic Inclination Sensor TMS/TMM88 | 2-Axis Measurement | IP67/69 Rated | High Accuracy 0.1° | by SICK
Brand: SICK
SKU: 1139501
Alternatively Known As: Dynamic inclination sensor, MEMS inertial sensor, six-axis IMU sensor, industrial angle sensor
Technical Specifications
- Number of axis: 2
- Measurement principle: static and dynamic
- Communication interface: CANopen, SAE J1939
- Housing material: die-cast zinc
- Connection: male and female connectors
- Shock resistance: 100 g
- Enclosure rating: IP67/69
- Dimensions (H x L x W): 30mm x 100mm x 60mm
- Weight: 0.5 kg
Key Features
- Single-axis (360°) and two-axis (+/-90°) inclination sensing based on a six-axis IMU
- Adaptive intelligent sensor fusion filter for high precision and quick response
- High accuracy up to 0.1° for dynamic movements
- Interfaces include CANopen and SAE J1939
- Customizable settings for flexible application adaptation
- Shock resistance up to 100 g
- Rugged design with enclosure rating IP67/69
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor integration and CANopen communication protocols is recommended.
Applications
- Industrial automation for dynamic inclination measurement
- Motion control systems requiring precise angle detection
- Harsh environment applications needing rugged sensor solutions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High precision reduces energy waste in industrial processes by improving control accuracy
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TMS/TMM88 Dynamic inclination sensors are available for immediate purchase, ideal for industrial motion control and harsh environment applications.
