Dynamic Inclination Sensor TMS/TMM88 | 2-Axis Measurement | IP67/69 Rated | High Accuracy 0.1° | by SICK

BRAND: SICK
SKU: 1139504
$2,192.20 List price: $2,755.40
+

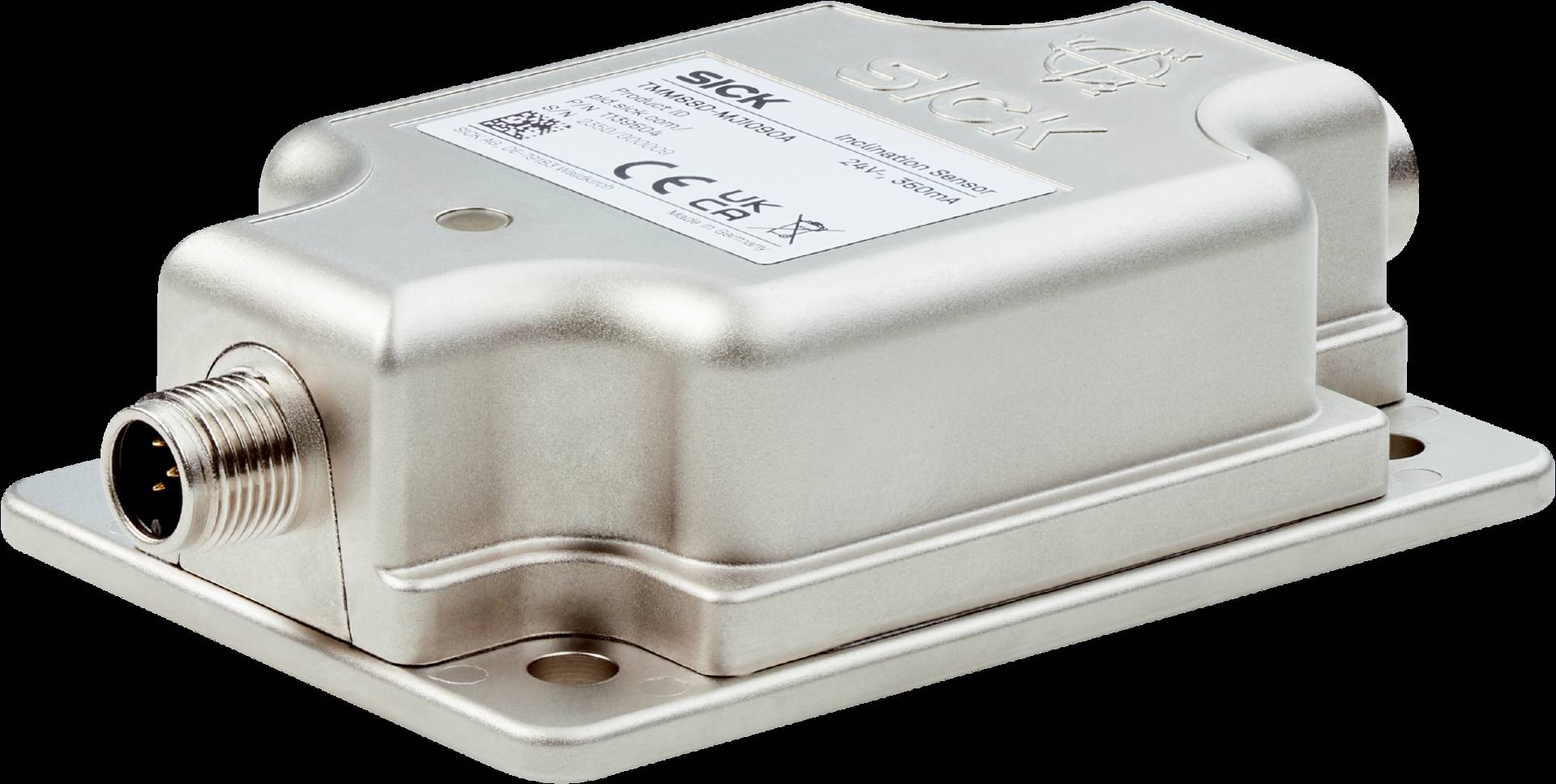

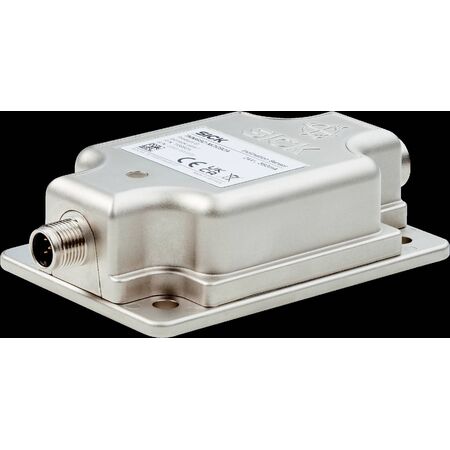

The TMS/TMM88 Dynamic inclination sensor offers precise 2-axis measurement with high accuracy up to 0.1°, making it ideal for industrial automation and motion control systems. With a rugged design and IP67/69 enclosure rating, it withstands harsh environments while providing reliable performance. Perfect for applications requiring dynamic inclination measurement, this sensor features customizable settings and a robust communication interface.

Product Name/Title: Dynamic Inclination Sensor TMS/TMM88 | 2-Axis Measurement | IP67/69 Rated | High Accuracy 0.1° | by SICK

Brand: SICK

SKU: 1139504

Alternatively Known As: Dynamic inclination sensor, MEMS inclination sensor, IMU inclination sensor, SICK angle sensor

Technical Specifications
  • Number of axis: 2
  • Measurement principle: static, dynamic
  • Communication interface: SAE J1939
  • Housing material: die-cast zinc
  • Connection: male and female connectors
  • Shock resistance: 100 g
  • Enclosure rating: IP67/69
  • Dimensions (H x L x W): 30mm x 100mm x 60mm
  • Weight: 0.5 kg
Key Features
  • Single-axis (360°) and two-axis (+/-90°) inclination sensing based on a six-axis IMU
  • Adaptive intelligent sensor fusion filter for high precision
  • High accuracy up to 0.1° for dynamic movements
  • Interfaces include CANopen and SAE J1939
  • Customizable settings for flexible application adaptation
  • Shock resistance up to 100 g
  • Rugged design with enclosure rating IP67/69
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper configuration and integration with control systems.
Applications
  • Industrial automation for dynamic inclination measurement
  • Motion control systems requiring precise angle detection
  • Harsh environment applications needing rugged sensor solutions
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces replacement frequency and waste
  • High precision reduces energy waste in control systems
Warranty Information

Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.

Available Now

The SICK TMS/TMM88 Dynamic inclination sensors are available for immediate purchase, ideal for industrial and motion control applications.
