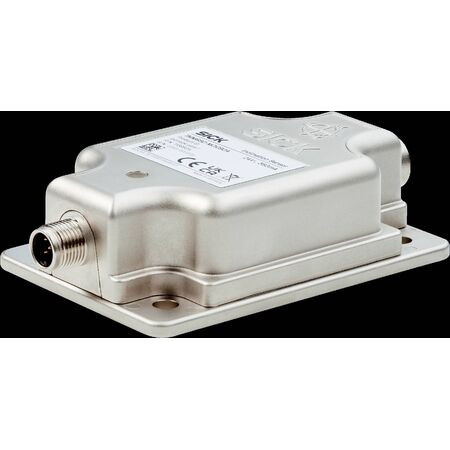

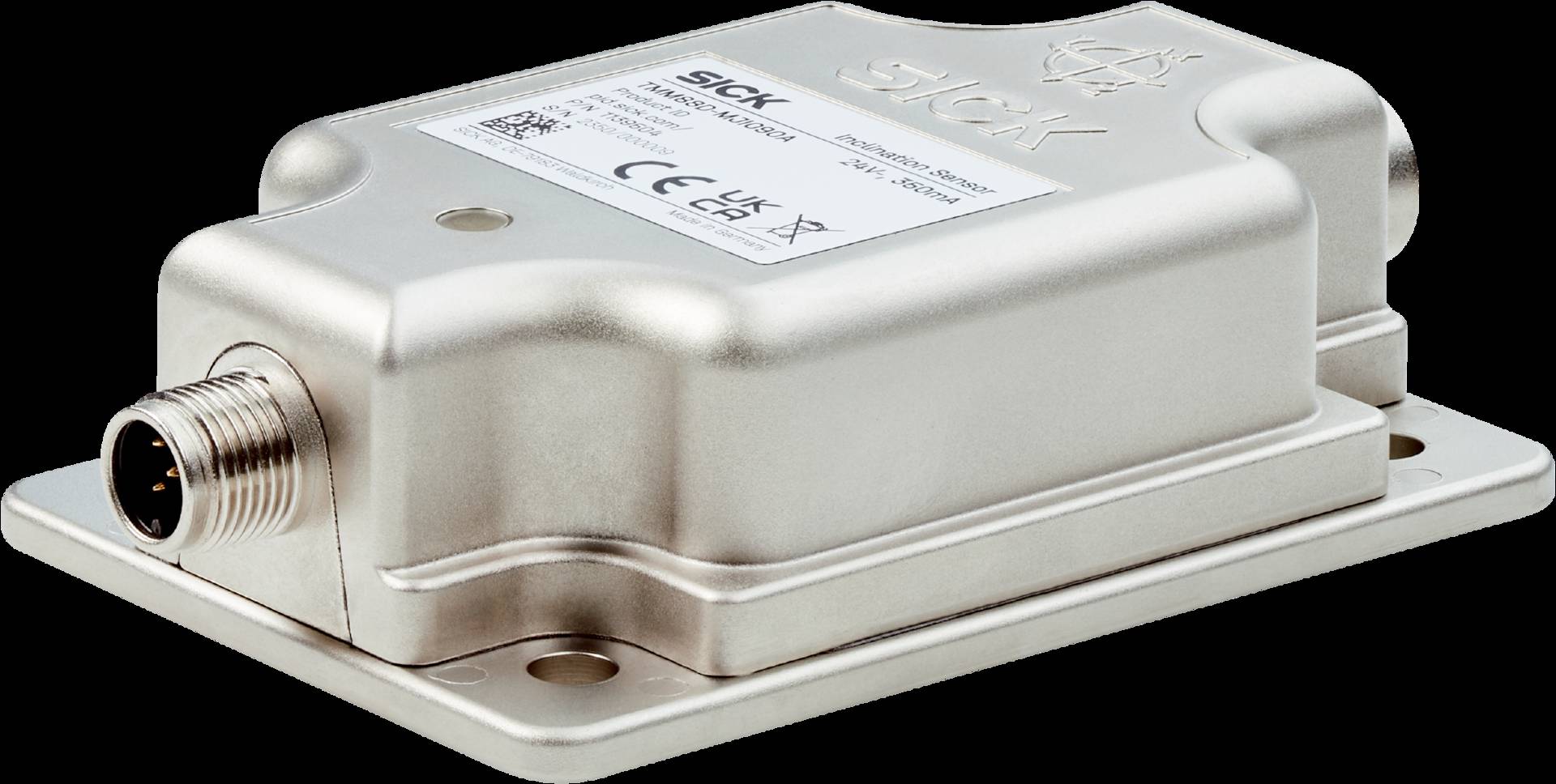

Dynamic Inclination Sensor TMS/TMM88 | High Accuracy 0.1° | IP67/69 Rated | by SICK
The TMS/TMM88 Dynamic inclination sensor is designed for precise angle detection in industrial automation, featuring high accuracy up to 0.1° and a rugged IP67/69 enclosure. Ideal for motion control systems and harsh environments, this sensor utilizes a six-axis IMU and offers customizable settings for flexible applications, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dynamic Inclination Sensor TMS/TMM88 | High Accuracy 0.1° | IP67/69 Rated | by SICK
Brand: SICK
SKU: 1139499
Alternatively Known As: Dynamic inclination sensor, MEMS inclination sensor, six-axis IMU sensor, industrial tilt sensor
Technical Specifications
- Measurement principle: static and dynamic
- Number of axis: 1
- Communication interface: CANopen, SAE J1939
- Housing material: die-cast zinc
- Connection: male and female connectors
- Shock resistance: 100 g
- Enclosure rating: IP67/69
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Single-axis (360°) and two-axis (+/-90°) inclination sensors based on a six-axis IMU
- Adaptive intelligent sensor fusion filter for high precision
- High accuracy up to 0.1° for dynamic movements
- Interfaces: CANopen, SAE J1939
- Customizable settings for flexible application adaptation
- Shock resistance up to 100 g
- Rugged design with enclosure rating IP67/69
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor integration and CANopen communication is recommended.
Applications
- Industrial automation for dynamic inclination measurement
- Motion control systems requiring precise angle detection
- Harsh environment applications needing rugged sensor solutions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High precision reduces errors and energy waste in automated systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK TMS/TMM88 Dynamic inclination sensors are available for immediate purchase, ideal for industrial motion control and automation applications.
