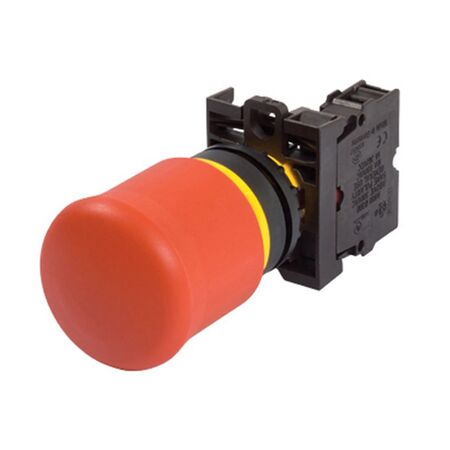

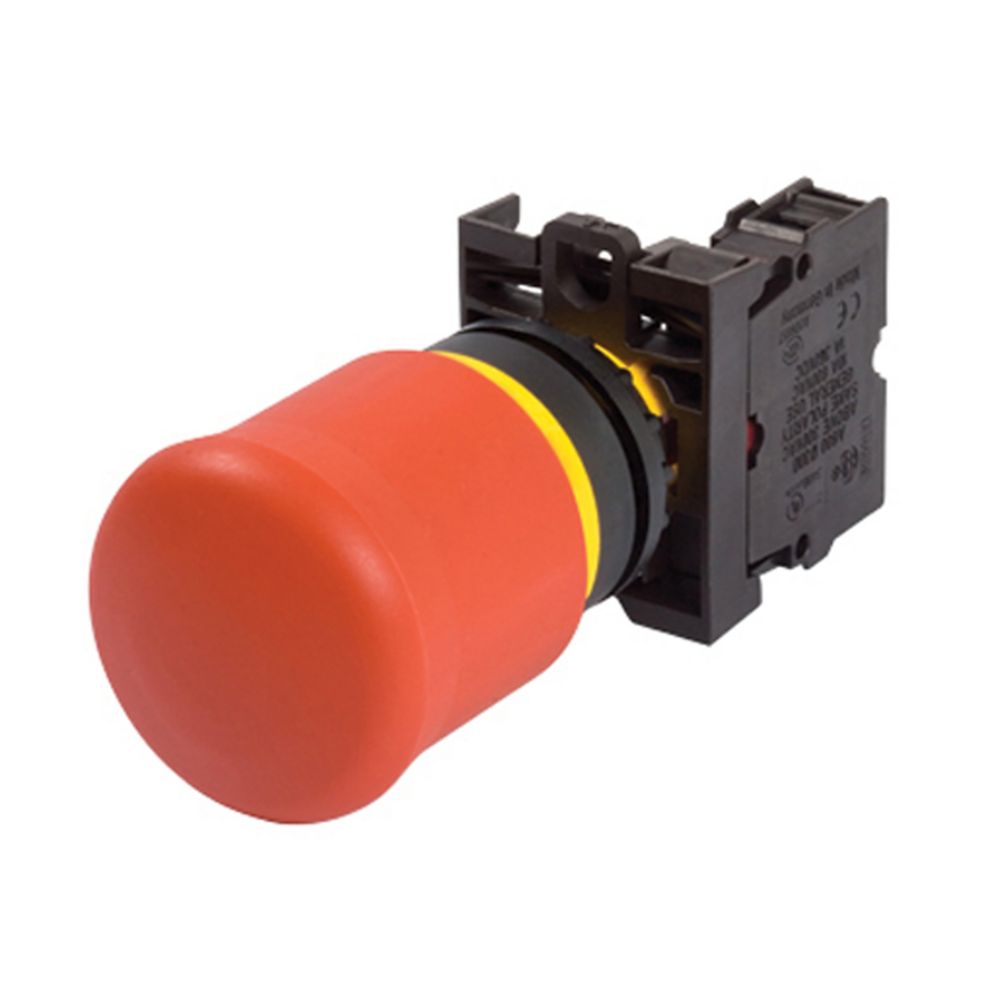

E-STOP TWIST-RELEASE 1NO/2NC | Twist-to-Release Knob | IP67 & IP69K Rated | Non-Illuminated Red Button | by Eaton
The E-STOP TWIST-RELEASE 1NO/2NC is designed for industrial safety, featuring a twist-to-release knob actuator for a reliable emergency stop. With robust environmental ratings of IP67 and IP69K, this non-illuminated red button ensures clear emergency indication in demanding applications. Ideal for control panels and machinery safety systems, it provides peace of mind in critical situations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: E-STOP TWIST-RELEASE 1NO/2NC | Twist-to-Release Knob | IP67 & IP69K Rated | Non-Illuminated Red Button | by Eaton
Brand: Eaton
SKU: M22-PVT-K12
Alternatively Known As: Eaton Emergency Stop Button, Twist Release E-Stop, M22 Emergency Stop Switch, Industrial E-Stop Pushbutton
Technical Specifications
- Size: 22.5 mm
- Actuator: Knob, twist-to-release
- Contact configuration: 1NO-2NC
- Button color: Red
- Bezel color: Silver
- Illumination: Non-illuminated
- Environmental rating: IP67, IP69K, NEMA 4X, NEMA 13
- Series: M22
- Contact blocks: Positively driven
- Dimensions (H x L x W): 13mm x 25mm x 13mm
- Weight: 0.1 kg
Key Features
- Twist-to-release knob actuator for safety reset
- Maintained actuator function
- Non-illuminated red button for clear emergency indication
- Contact configuration: 1 Normally Open (NO) and 2 Normally Closed (NC)
- Robust environmental ratings: IP67, IP69K, NEMA 4X, NEMA 13
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure compliance with safety standards and proper integration into control systems.
Applications
- Industrial machinery emergency stop control
- Safety systems in manufacturing plants
- Control panels requiring emergency stop functionality
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- High ingress protection prevents environmental damage and extends product life
Warranty Information
One (1) year from installation or eighteen (18) months from shipment, whichever occurs first, per Eaton Selling Policy 25-000.
Available Now
The Eaton M22 Twist-To-Release Emergency Stop Pushbutton 1NO/2NC is available for immediate purchase, ideal for industrial safety and control panel applications.
