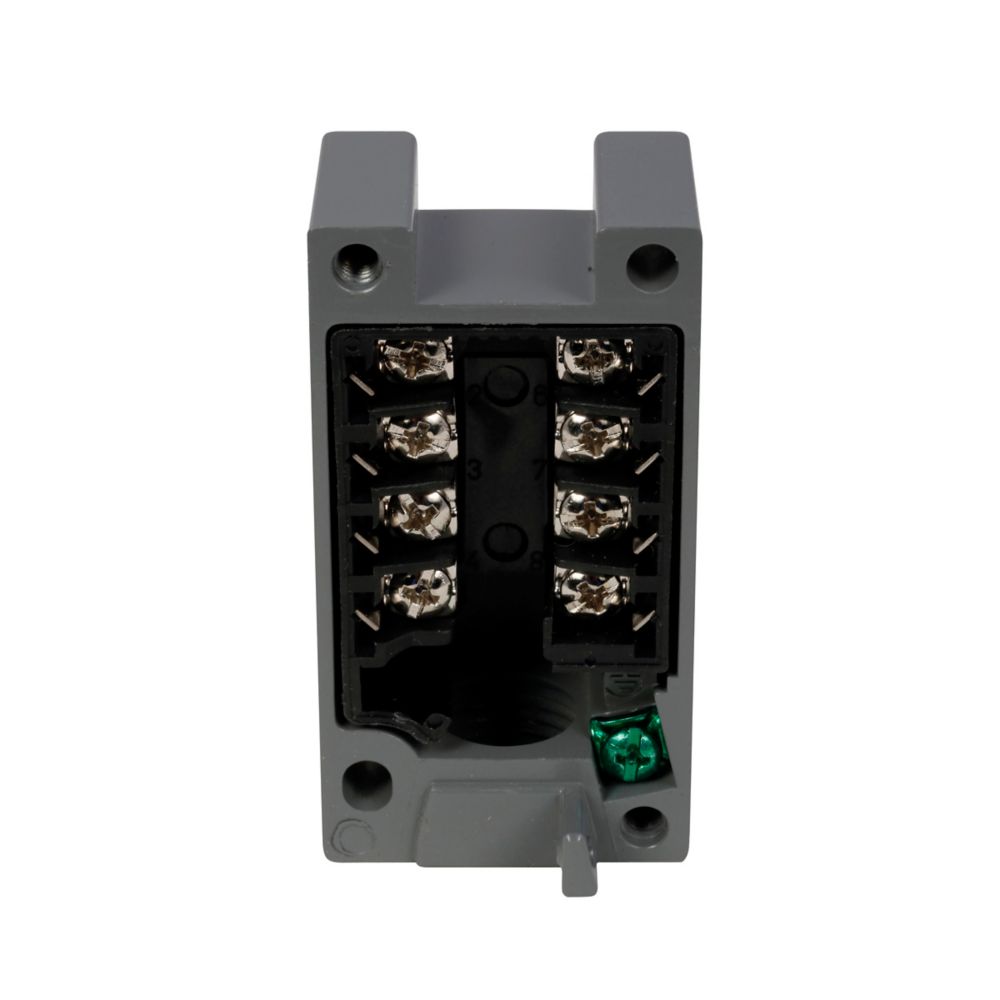

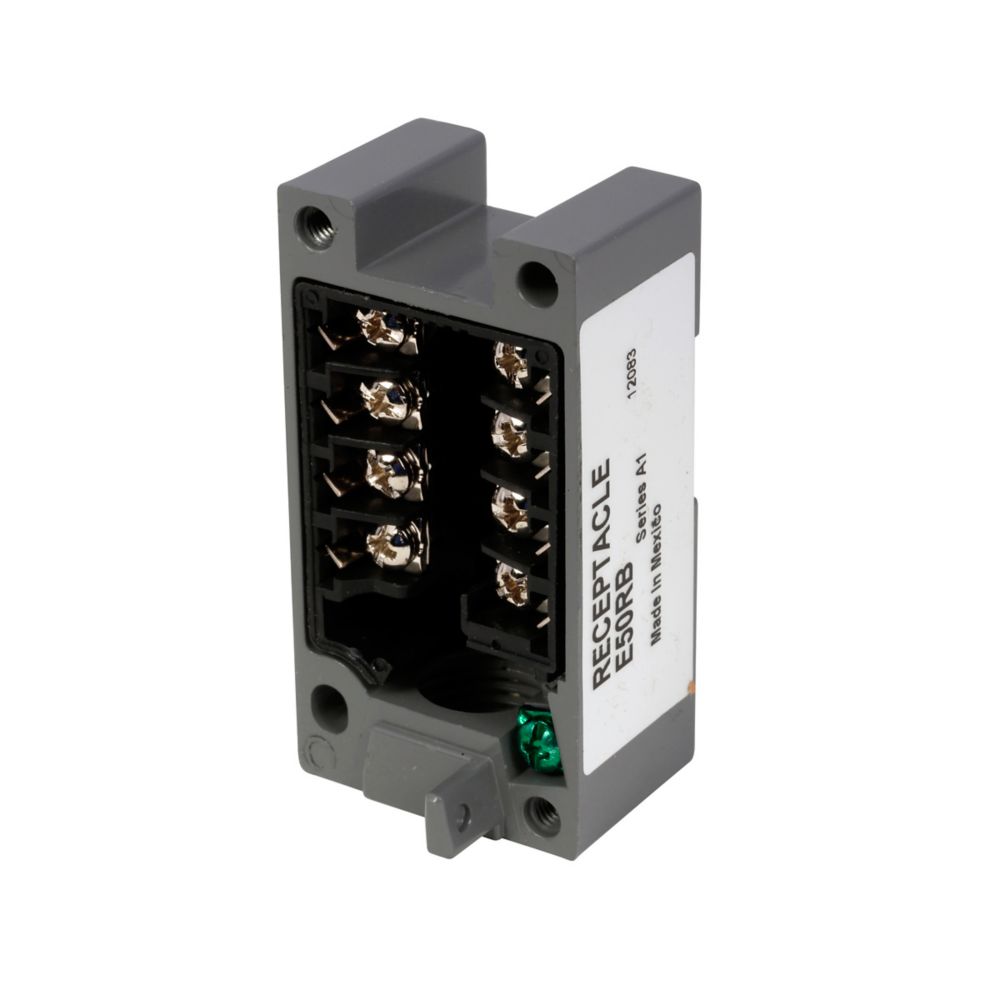

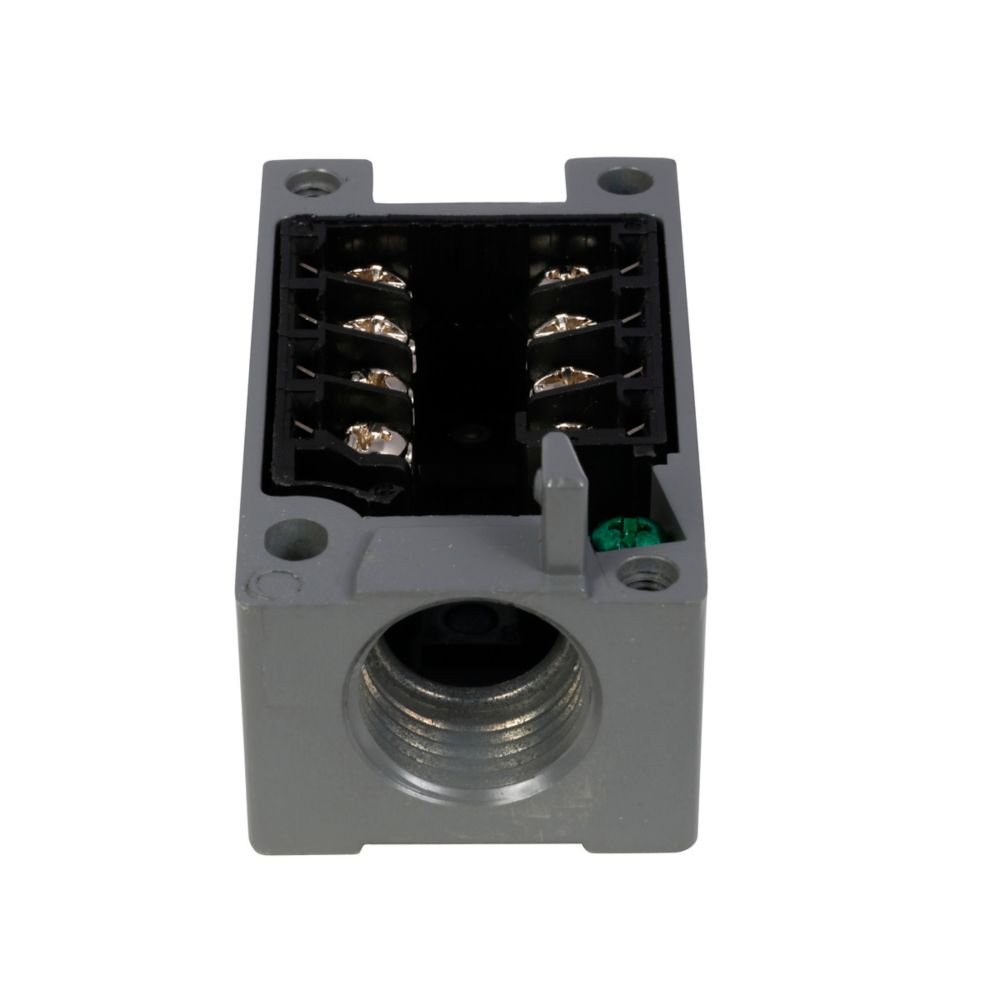

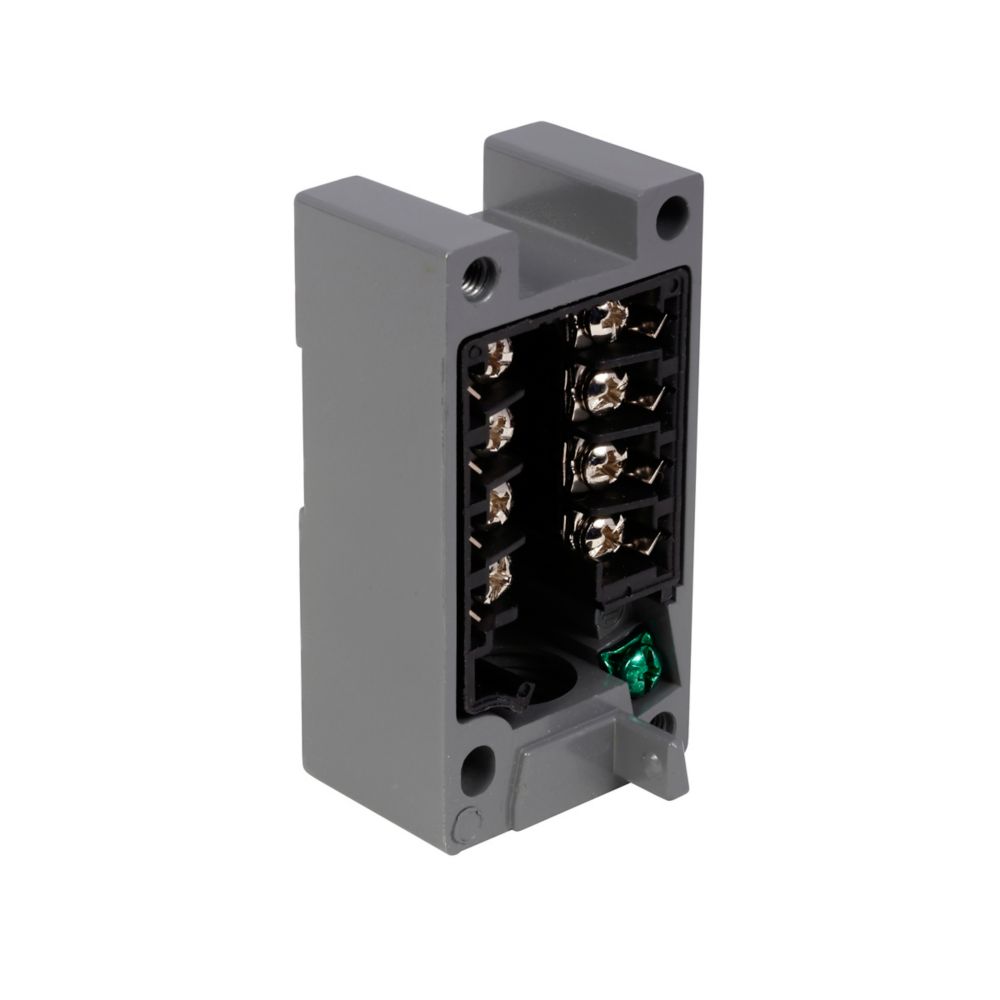

E50 20MM Surface Mount Receptacle | Heavy Duty Limit Switch | NEMA 1-6P & IP67 Rated | by Eaton
The E50 20MM Surface Mount Receptacle is designed for heavy-duty applications, featuring a robust two-pole, 9-terminal configuration and a durable die cast zinc enclosure. With an impressive operating temperature range of -40°F to 250°F and high environmental protection ratings (NEMA 1, 3, 4, 6P, IP67), this receptacle is perfect for industrial control systems and machinery requiring reliable, weatherproof electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: E50 20MM Surface Mount Receptacle | Heavy Duty Limit Switch | NEMA 1-6P & IP67 Rated | by Eaton
Brand: Eaton
SKU: E50RB20
Alternatively Known As: E50 NEMA Limit Switch Receptacle, E50RB20 Surface Mount Receptacle, Heavy Duty Limit Switch Plug-in Receptacle
Technical Specifications
- Number of poles: 2
- Terminals: 9
- Operating temperature range: -40°F to 250°F (-40°C to 121°C)
- Connection type: Screw terminal
- Enclosure material: Die cast zinc
- Environmental rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Mounting method: Surface mount
- Dimensions (H x L x W): 27mm x 74mm x 39mm
- Weight: 0.2 kg
Key Features
- Heavy duty plug-in limit switch receptacle
- Two-pole, 9-terminal configuration
- Screw terminal connection for secure wiring
- Die cast zinc enclosure for durability
- Wide operating temperature range from -40°F to 250°F (-40°C to 121°C)
- High environmental protection with NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67 ratings
- Surface mount installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial control systems requiring heavy duty limit switch receptacles
- Environments needing robust, weatherproof electrical connections
- Machinery and automation equipment with surface mount switch requirements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable construction reduces replacement frequency and waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50 20MM Surface Mount Receptacle is available for immediate purchase, ideal for industrial and commercial electrical control applications.
