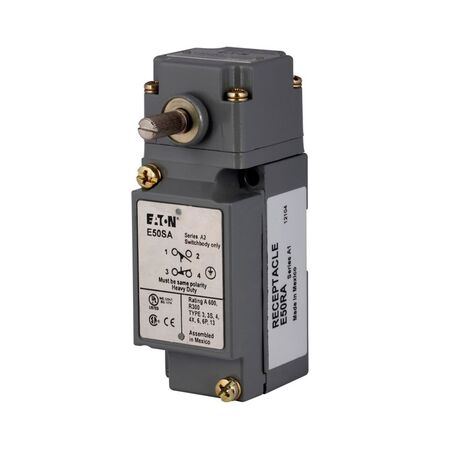

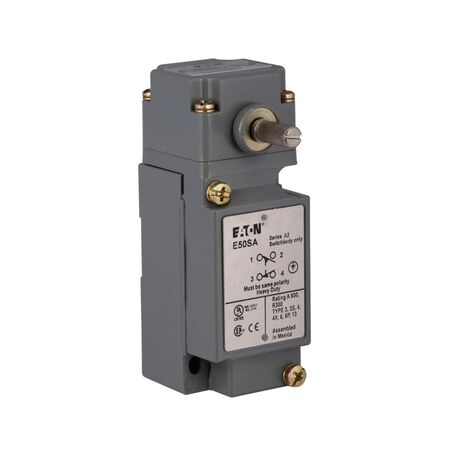

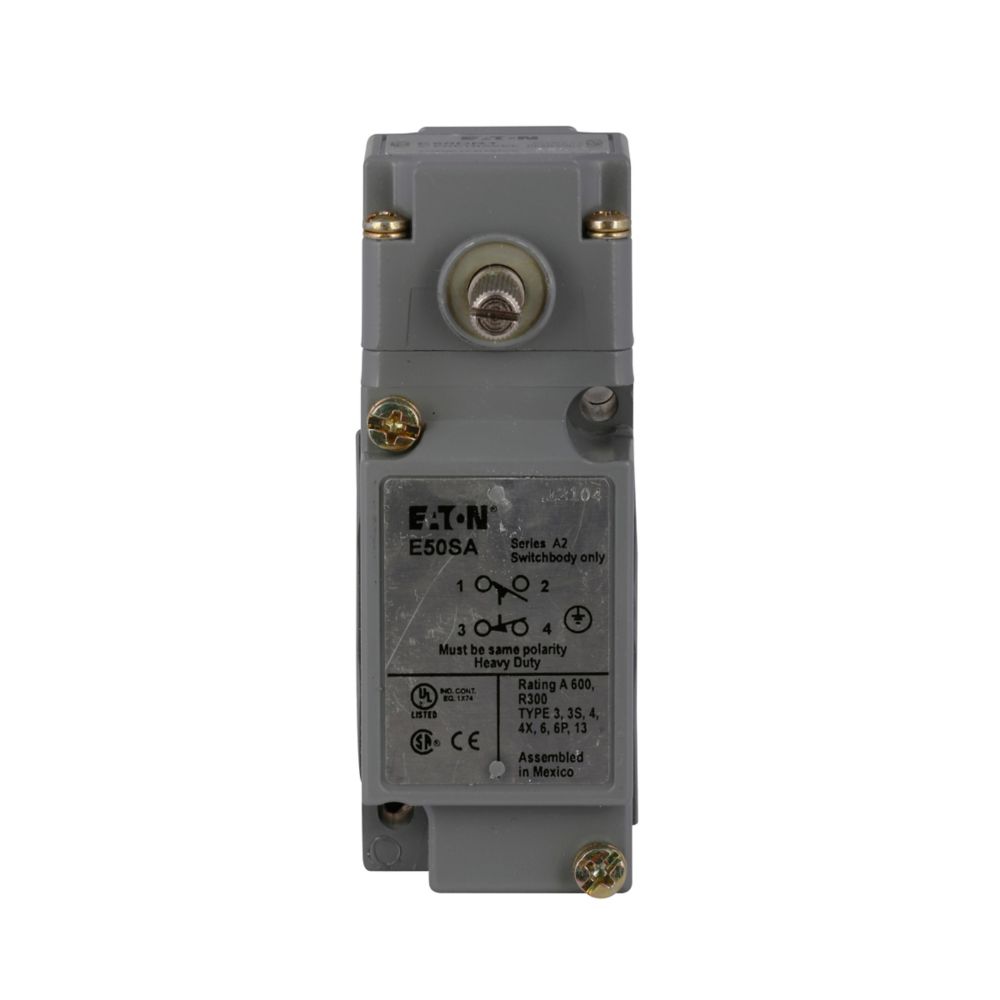

E50 Heavy Duty Limit Switch | 10A Contact Rating | NEMA 1-6P & IP67 | by Eaton
The E50 Heavy Duty Limit Switch is designed for industrial automation and control systems, featuring a robust die cast zinc enclosure and a side rotary actuator. With a contact rating of 10A at 240Vac and an impressive mechanical life of 10 million cycles, this switch is perfect for machinery safety and position sensing in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: E50 Heavy Duty Limit Switch | 10A Contact Rating | NEMA 1-6P & IP67 | by Eaton
Brand: Eaton
SKU: E50AR1
Alternatively Known As: E50 Limit Switch, Heavy Duty Rotary Limit Switch, Eaton E50AR1 Limit Switch, Industrial Limit Switch
Technical Specifications
- Contact Rating: 10A at 240Vac, 1A at 250Vdc
- Mechanical Life: 10 million cycles
- Electrical Life: 1 million cycles at full load
- Operating Temperature: -10°C to 121°C
- Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Enclosure Material: Die cast zinc
- Connection Type: Screw terminal
- Actuator Type: Side rotary
- Maximum AC Current: 10A continuous
- Maximum DC Current: 1A
- Dimensions (H x L x W): 57mm x 107mm x 39mm
- Weight: 0.5 kg
Key Features
- Heavy duty plug-in limit switch with side rotary actuator
- Contact configuration: 1 Normally Open (NO) and 1 Normally Closed (NC)
- Contact rating: 10A at 240Vac, 1A at 250Vdc
- Mechanical durability: 10 million cycles
- Electrical durability: 1 million cycles at full load
- Operating temperature range: -10°C to 121°C (14°F to 250°F)
- Environmental ratings: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67
- Die cast zinc enclosure for robust protection
- Screw terminal connection with 1/2 NPT conduit entry
- UL Listed, CSA Certified, CE Marked, RoHS Compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial control equipment to ensure compliance with safety standards and proper operation.
Applications
- Industrial automation and control systems
- Machinery safety and position sensing
- Conveyor systems
- Manufacturing equipment
- Heavy duty mechanical operations requiring limit detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable design reduces replacement frequency and waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50 Heavy Duty Limit Switch is available for immediate purchase, ideal for industrial and manufacturing applications requiring reliable limit detection and control.
