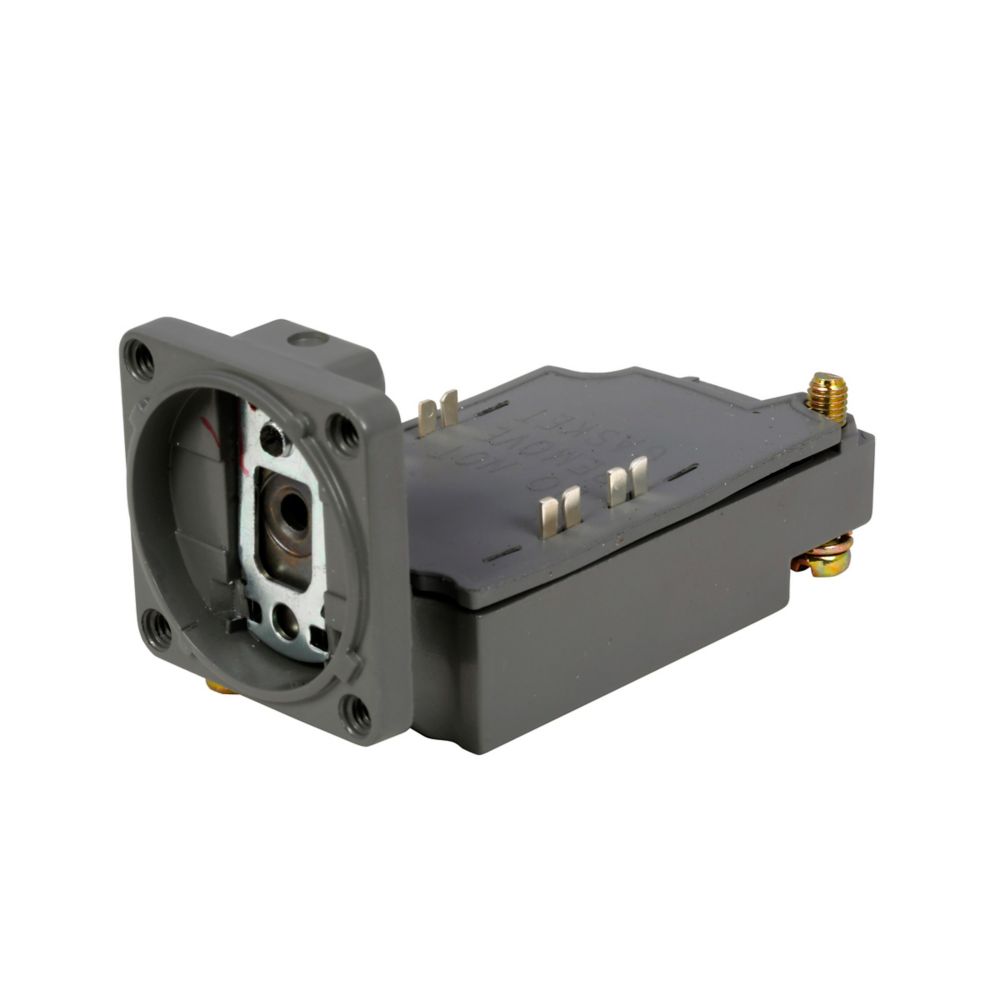

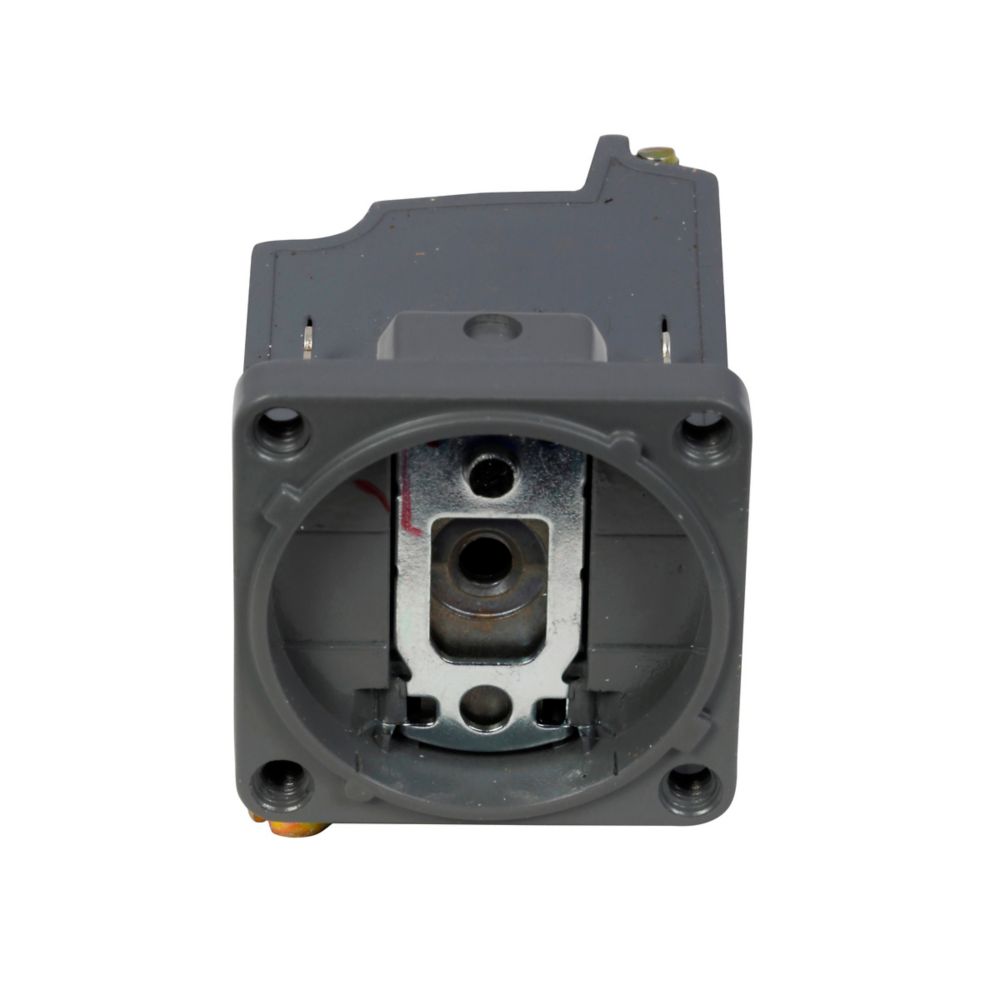

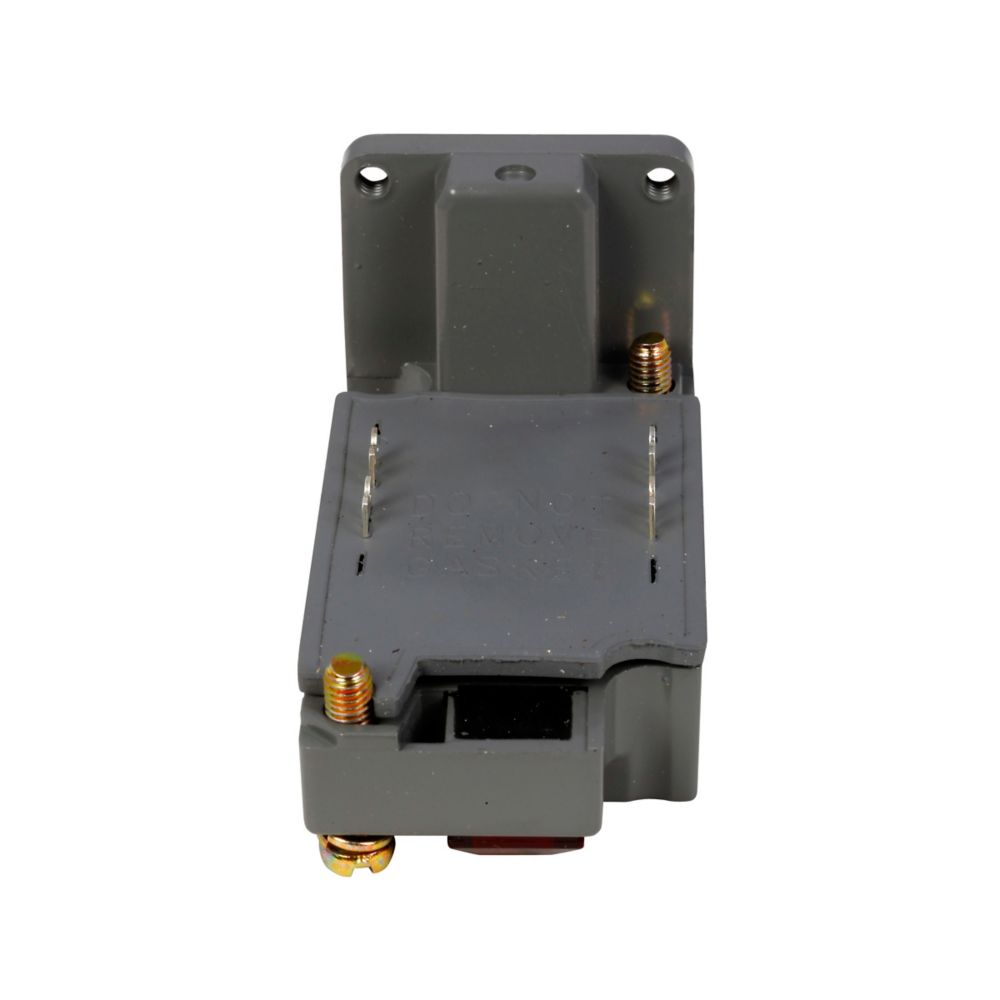

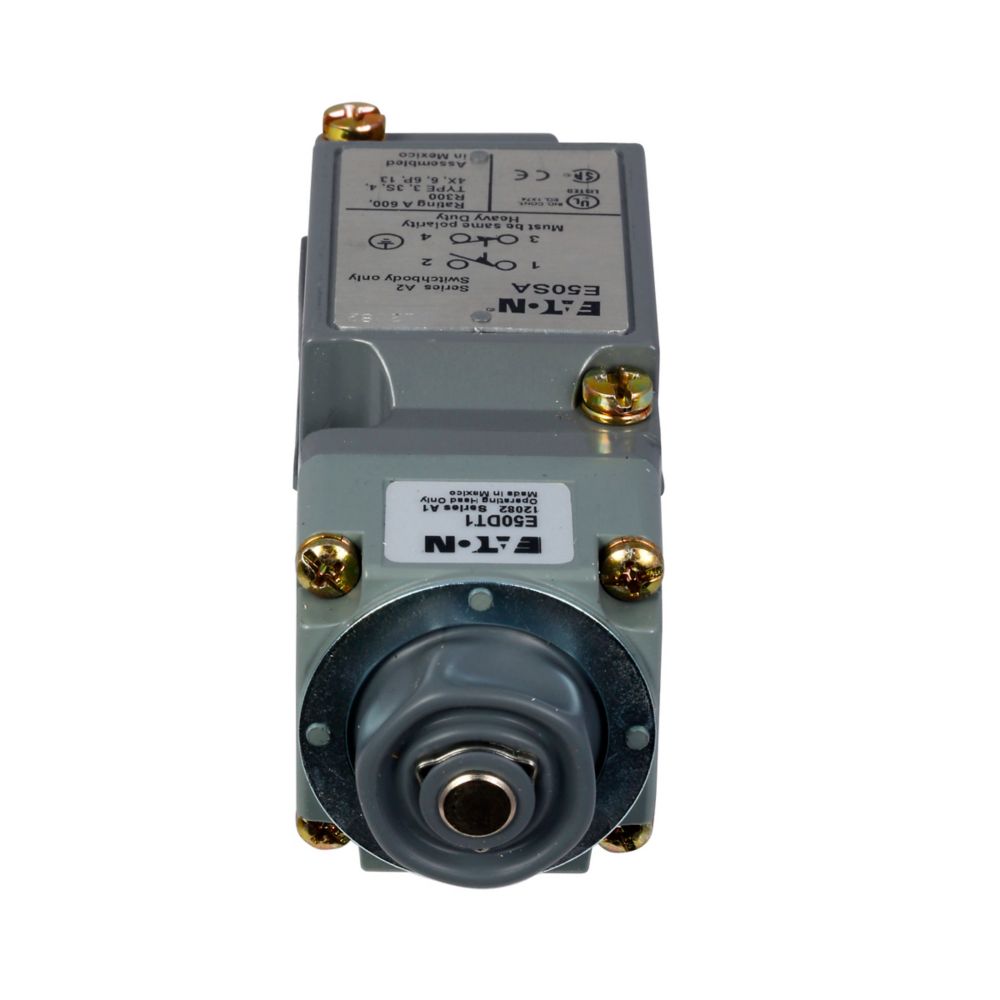

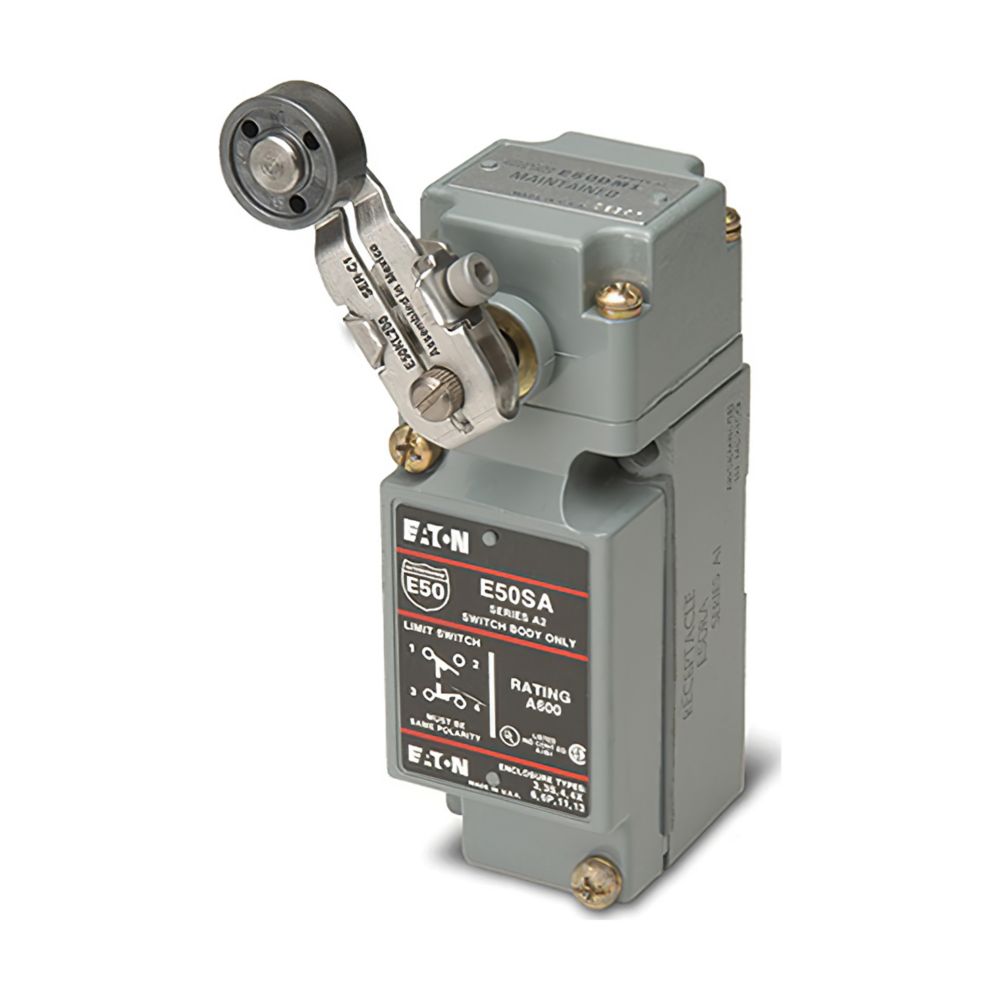

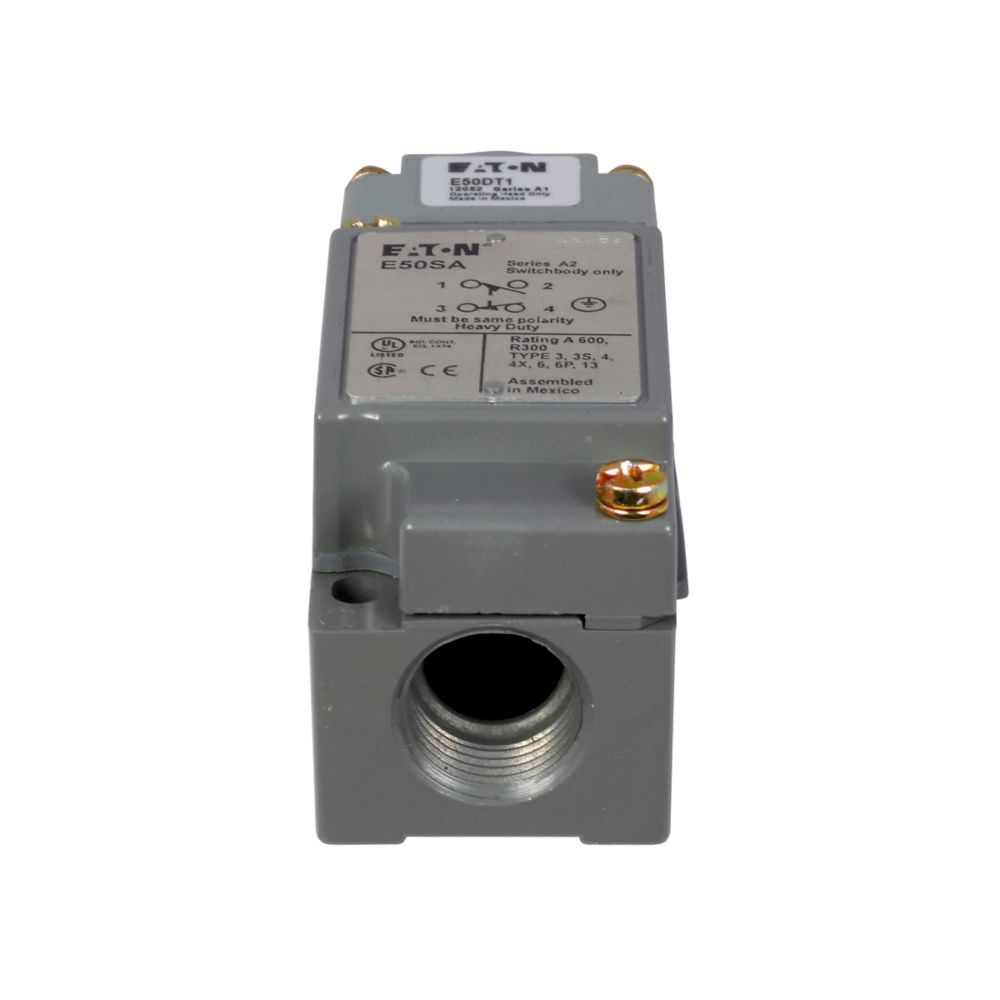

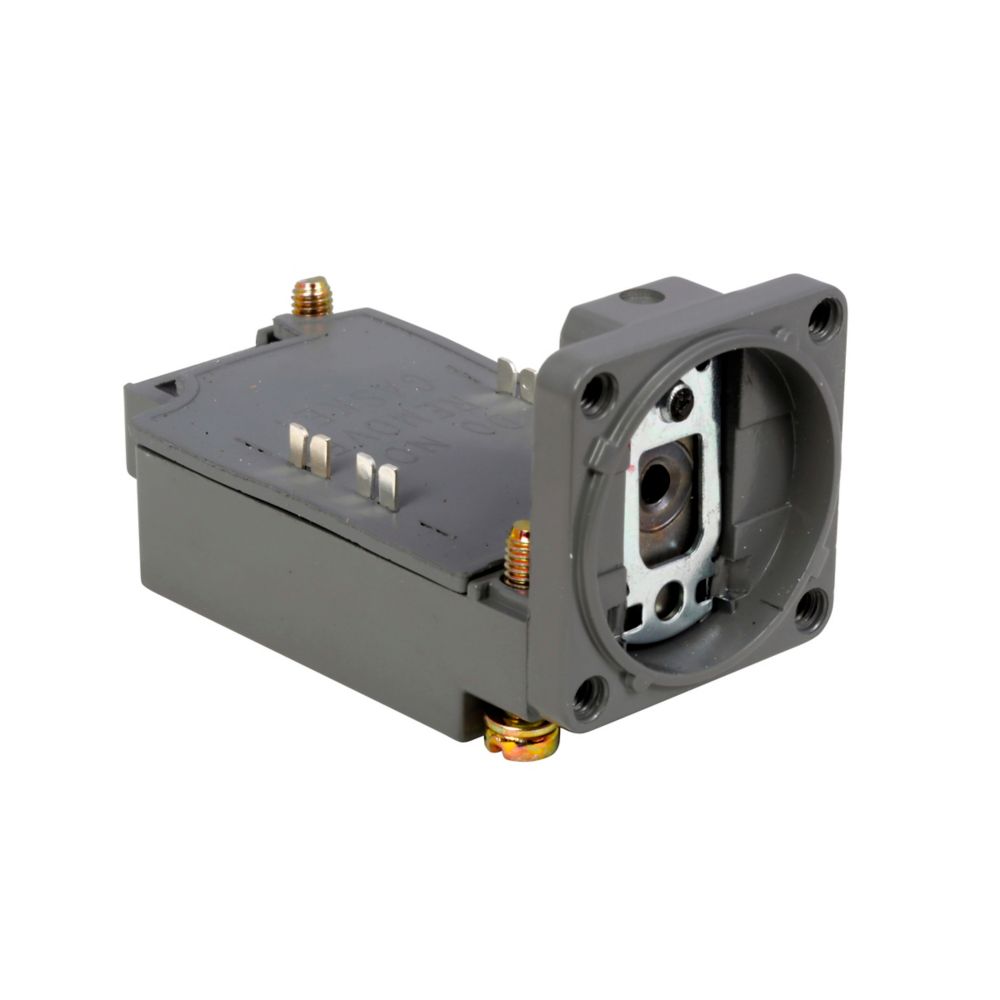

E50 Heavy Duty Limit Switch | 1NO-1NC Contact Configuration | NEMA Rated | by Eaton
The E50 Heavy Duty Limit Switch features a 1 Normally Open and 1 Normally Closed contact configuration, making it ideal for industrial machinery control and automated manufacturing equipment. With a robust die cast zinc enclosure and an impressive operating temperature range of -40°F to 250°F, this switch ensures durability and reliability in demanding environments. Rated for 10A at 240Vac, it meets various NEMA environmental standards for protection against dust and water ingress.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: E50 Heavy Duty Limit Switch | 1NO-1NC Contact Configuration | NEMA Rated | by Eaton
Brand: Eaton
SKU: E50SA
Alternatively Known As: E50 Limit Switch, Eaton E50SA Switch Body, Heavy Duty Limit Switch, NEMA Limit Switch 1NO-1NC
Technical Specifications
- Contact Configuration: 1 Normally Open (NO) - 1 Normally Closed (NC)
- Contact Rating: 10A at 240Vac, 1A at 250Vdc
- Mechanical Life: 10 million cycles
- Electrical Life: 1 million cycles at full load
- Operating Temperature Range: -40°F to 250°F (-40°C to 121°C)
- Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Enclosure Material: Die cast zinc
- Conduit Entry: 1/2 NPT
- Maximum Operating Speed: 8000 cycles per hour
- Dimensions (H x L x W): 44mm x 114mm x 83mm
- Weight: 0.19 kg
Key Features
- Heavy duty plug-in limit switch with 1 normally open and 1 normally closed contact
- Die cast zinc enclosure for durability
- Wide operating temperature range from -40°F to 250°F (-40°C to 121°C)
- High mechanical life of 10 million cycles and electrical life of 1 million cycles at full load
- Rated for 10A at 240Vac and 1A at 250Vdc
- Environmental ratings include NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67 for protection against dust and water ingress
- 1/2 NPT conduit entry for easy wiring
- UL Recognized, CSA Certified, CE Marked, and RoHS Compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial control equipment to ensure proper wiring and compliance with safety standards.
Applications
- Industrial machinery control
- Conveyor systems
- Automated manufacturing equipment
- Safety interlock systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable construction reduces replacement frequency and waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50 NEMA Heavy Duty Plug-in Limit Switch 1NO-1NC is available for immediate purchase, ideal for industrial and manufacturing control applications.
