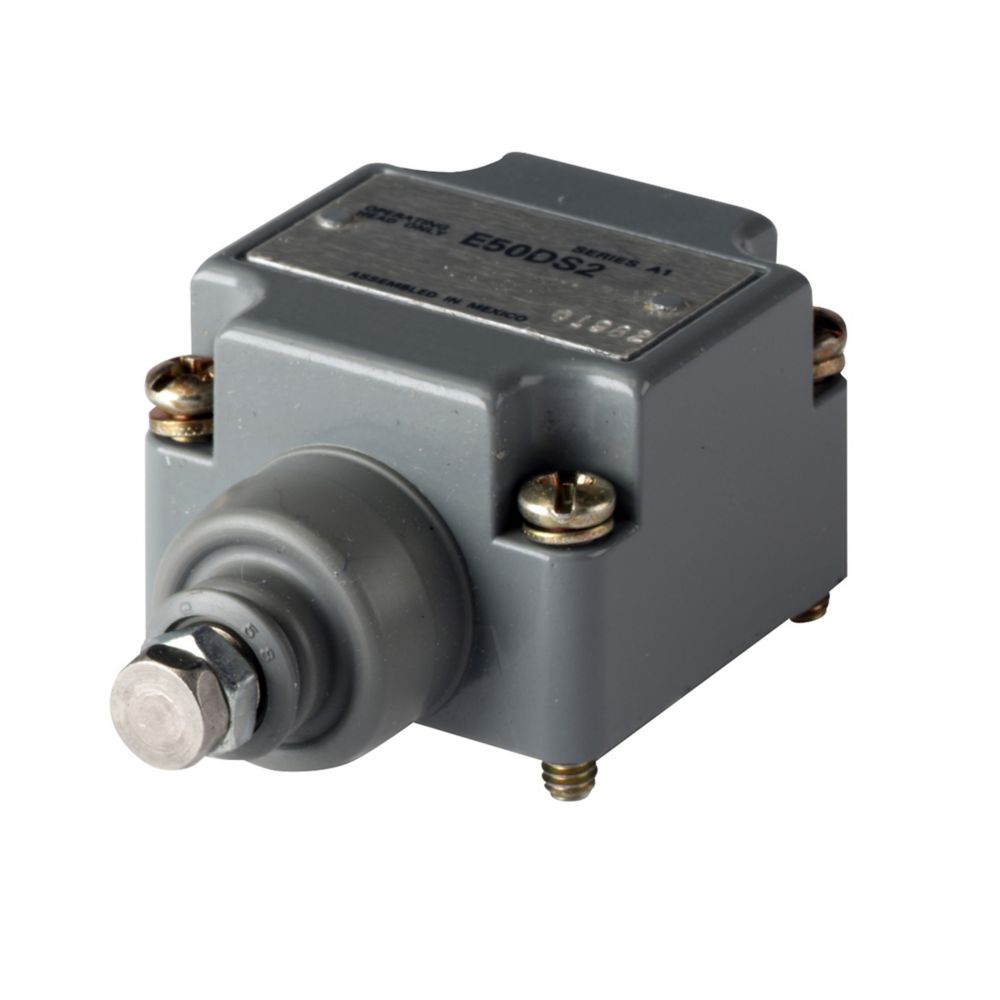

E50 Heavy Duty Limit Switch | Side Pushbutton Actuator | NEMA 1-6P & IP67 Rated | by Eaton
The E50 Heavy Duty Limit Switch is designed for industrial automation control, featuring a side pushbutton actuator and a durable die cast zinc enclosure. With an environmental rating of NEMA 1, 3, 4, 6, and IP67, it operates effectively in harsh conditions from -10°C to 121°C. Ideal for machinery safety and position sensing, this switch ensures reliable performance in heavy-duty environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: E50 Heavy Duty Limit Switch | Side Pushbutton Actuator | NEMA 1-6P & IP67 Rated | by Eaton
Brand: Eaton
SKU: E50DS2
Alternatively Known As: E50 NEMA Limit Switch, Heavy Duty Limit Switch, Industrial Limit Switch, Eaton E50DS2 Switch
Technical Specifications
- Actuator: Side pushbutton
- Enclosure Material: Die cast zinc
- Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Operating Temperature: -10°C to 121°C (14°F to 250°F)
- Terminal Type: Screw terminal
- Series: E50 heavy duty factory sealed 6P+
- Certifications: UL Recognized, CSA Certified, UL Listed, CE Marked
- Compliance: RoHS Compliant
- Dimensions (H x L x W): 71mm x 27mm x 39mm
- Weight: 0.1 kg
Key Features
- Heavy duty plug-in limit switch with side pushbutton actuator
- Die cast zinc enclosure for durability
- Wide environmental rating including NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67
- Operating temperature range from -10°C to 121°C (14°F to 250°F)
- Screw terminal connections for secure wiring
- Factory sealed 6P+ series for enhanced protection
- Certified UL Recognized, CSA Certified, UL Listed, RoHS Compliant, and CE Marked
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial control systems to ensure compliance with safety standards and proper wiring.
Applications
- Industrial automation control systems
- Machinery safety and position sensing
- Conveyor systems
- Manufacturing equipment
- Heavy duty environments requiring robust limit switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable die cast zinc housing extends product life reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50 Heavy Duty NEMA Limit Switch E50DS2 is available for immediate purchase, ideal for industrial and heavy-duty machinery applications.
