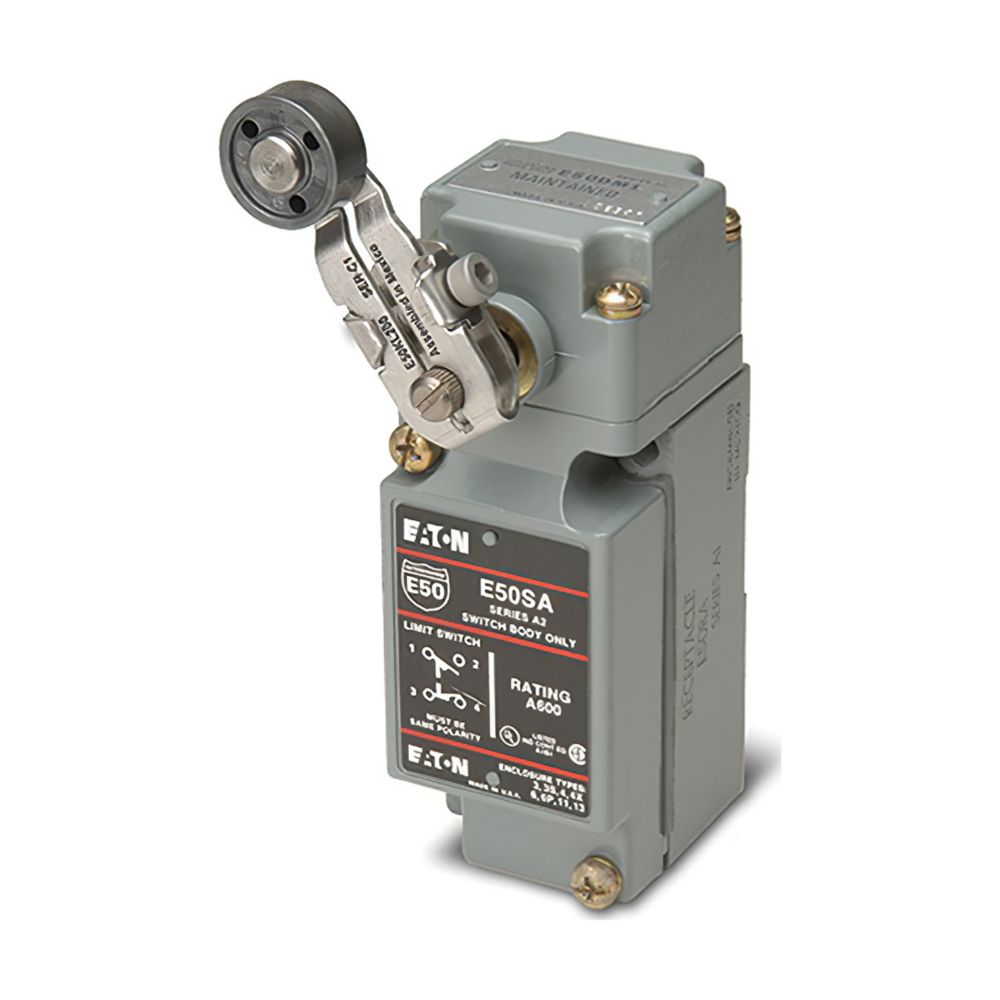

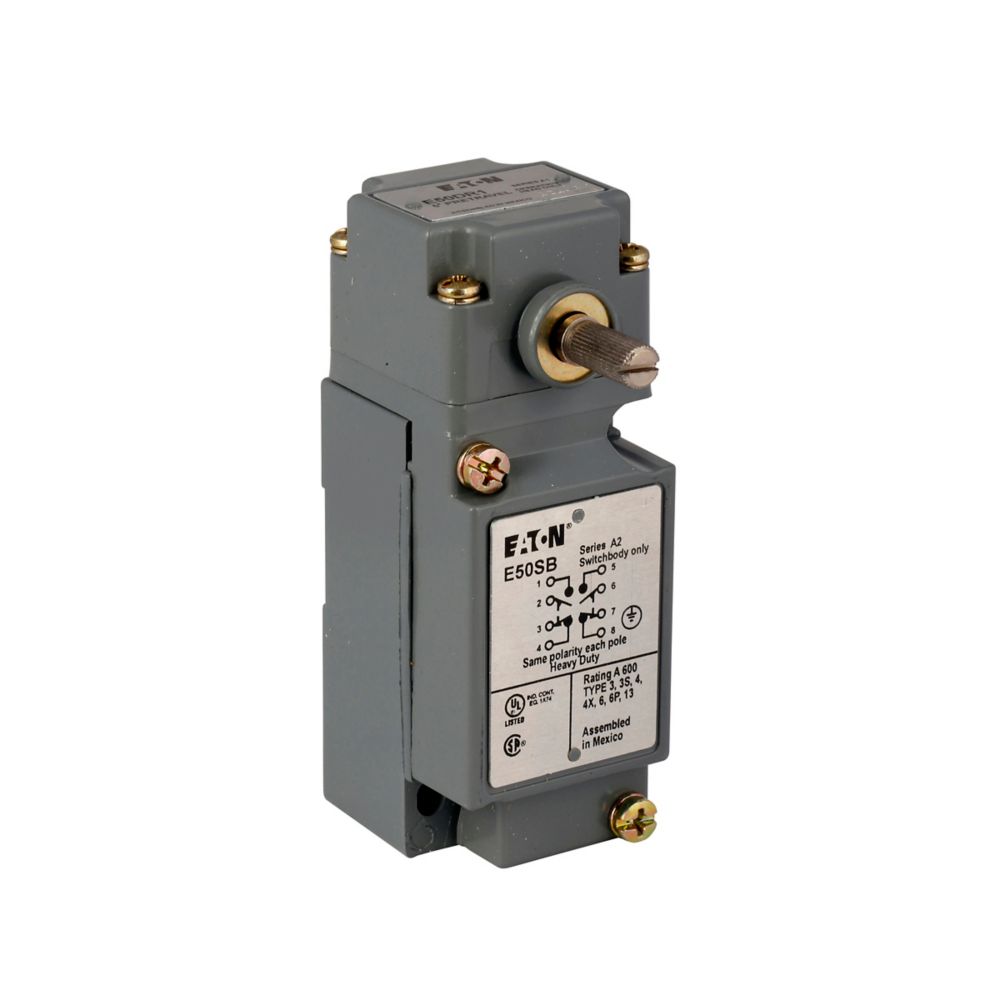

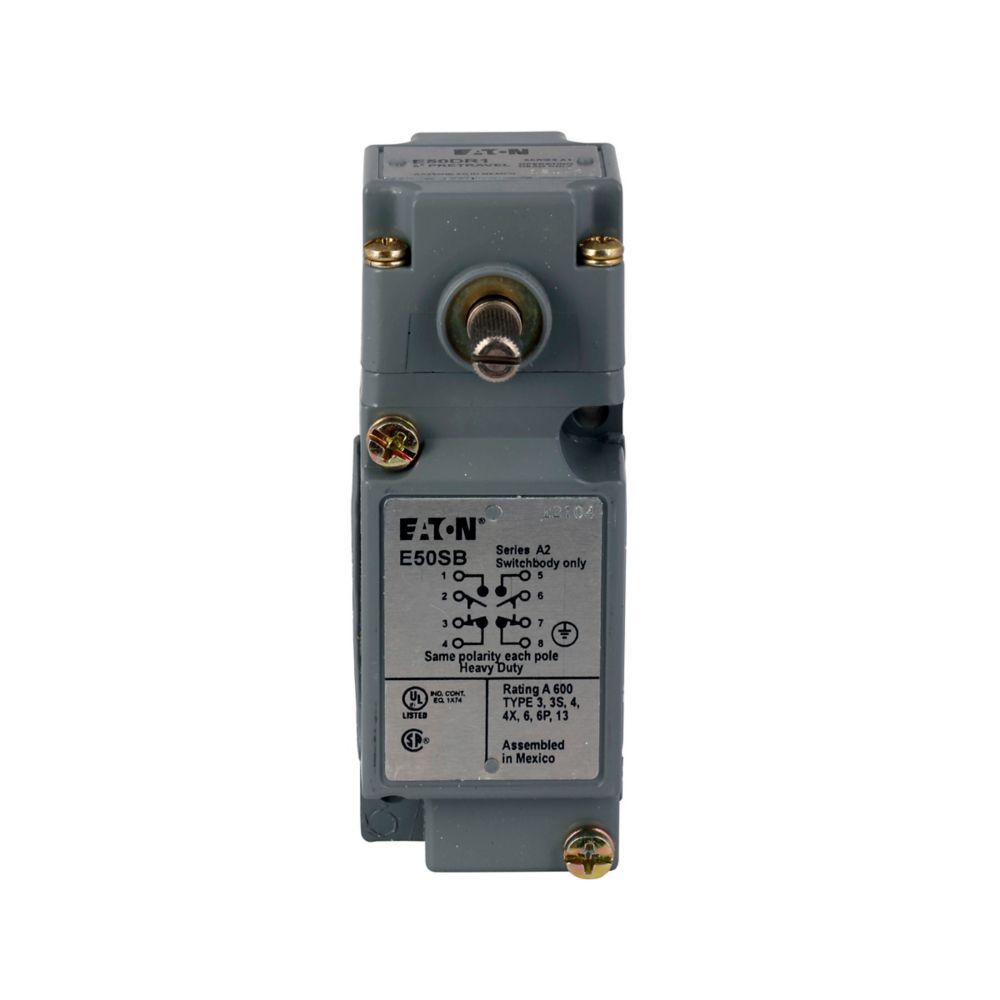

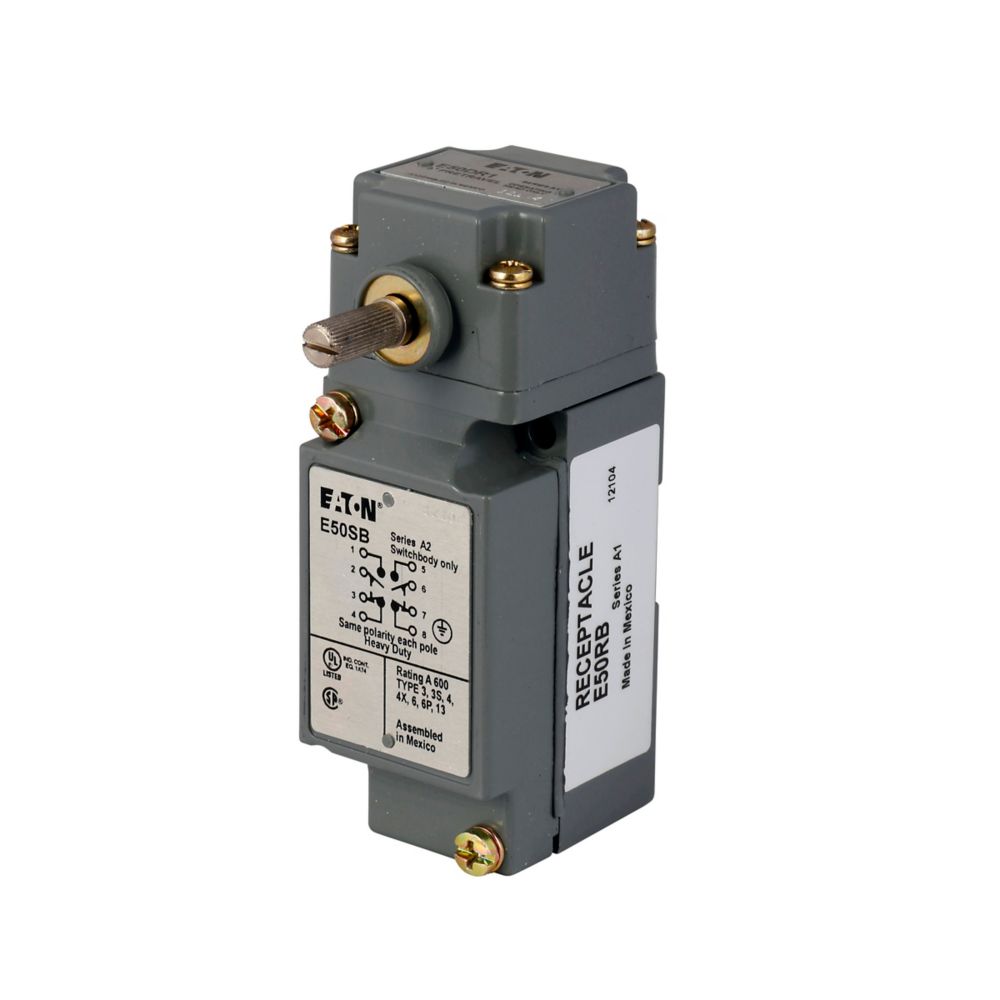

E50 Heavy Duty Limit Switch | Side Rotary Actuator | NEMA Rated | 10A Contact Rating | by Eaton
The E50 Heavy Duty Limit Switch features a side rotary actuator and a robust NEMA rating, making it ideal for industrial automation control systems. With a contact rating of 10A at 240Vac and a mechanical life of 10 million cycles, this switch ensures reliable performance in demanding environments. Perfect for conveyor systems and heavy machinery limit detection, it is designed for professional installation to meet safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: E50 Heavy Duty Limit Switch | Side Rotary Actuator | NEMA Rated | 10A Contact Rating | by Eaton
Brand: Eaton
SKU: E50BR1
Alternatively Known As: E50BR1 Limit Switch, Eaton Heavy Duty Limit Switch, NEMA Limit Switch Side Rotary, Industrial Limit Switch E50
Technical Specifications
- Contact Rating: 10A at 240Vac, 1A at 250Vdc
- Contact Configuration: 2 NO - 2 NC
- Actuator Type: Side rotary, momentary spring return
- Operating Temperature: -10°C to 121°C (14°F to 250°F)
- Mechanical Life: 10 million cycles
- Electrical Life: 100,000 cycles at full load
- Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Connection Type: Screw terminal
- Enclosure Material: Die cast zinc
- Conduit Entry: 1/2 NPT
- Dimensions (H x L x W): 57mm x 107mm x 39mm
- Weight: 0.5 kg
Key Features
- Heavy duty plug-in limit switch with side rotary actuator and spring return
- Contact configuration: 2 Normally Open (NO) and 2 Normally Closed (NC)
- Contact rating: 10A at 240Vac, 1A at 250Vdc
- Mechanical durability: 10 million cycles
- Electrical durability: 100,000 cycles at full load
- Operating temperature range: -10°C to 121°C (14°F to 250°F)
- Environmental rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67
- Die cast zinc enclosure for robust protection
- Screw terminal connection with 1/2 NPT conduit entry
- UL Listed, CSA Certified, CE Marked, RoHS Compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial control equipment to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation control systems
- Conveyor systems
- Machine safety and position detection
- Manufacturing equipment
- Heavy machinery limit detection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- RoHS compliant reducing hazardous substances
- Durable die cast zinc housing extends product life reducing waste
- High mechanical and electrical cycle life reduces replacement frequency
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50 Heavy Duty NEMA Limit Switch is available for immediate purchase, ideal for industrial and manufacturing applications requiring reliable limit detection.
