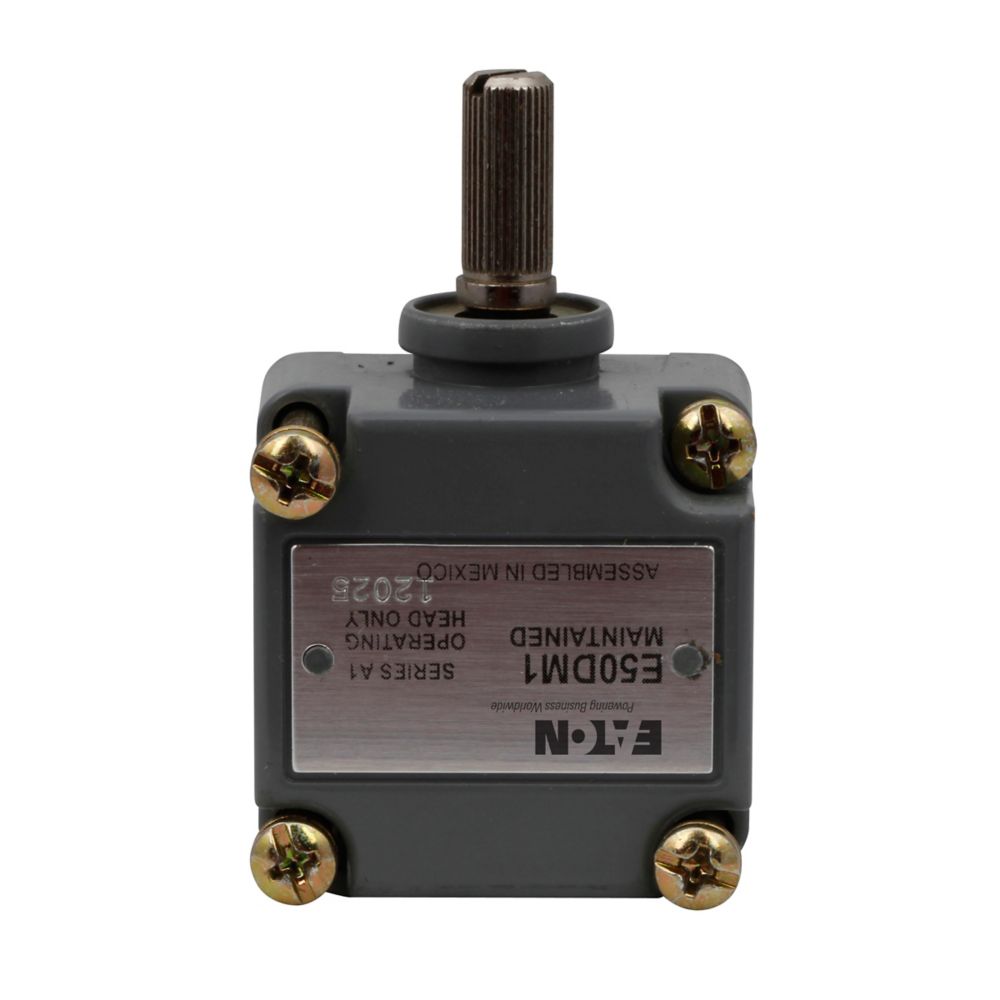

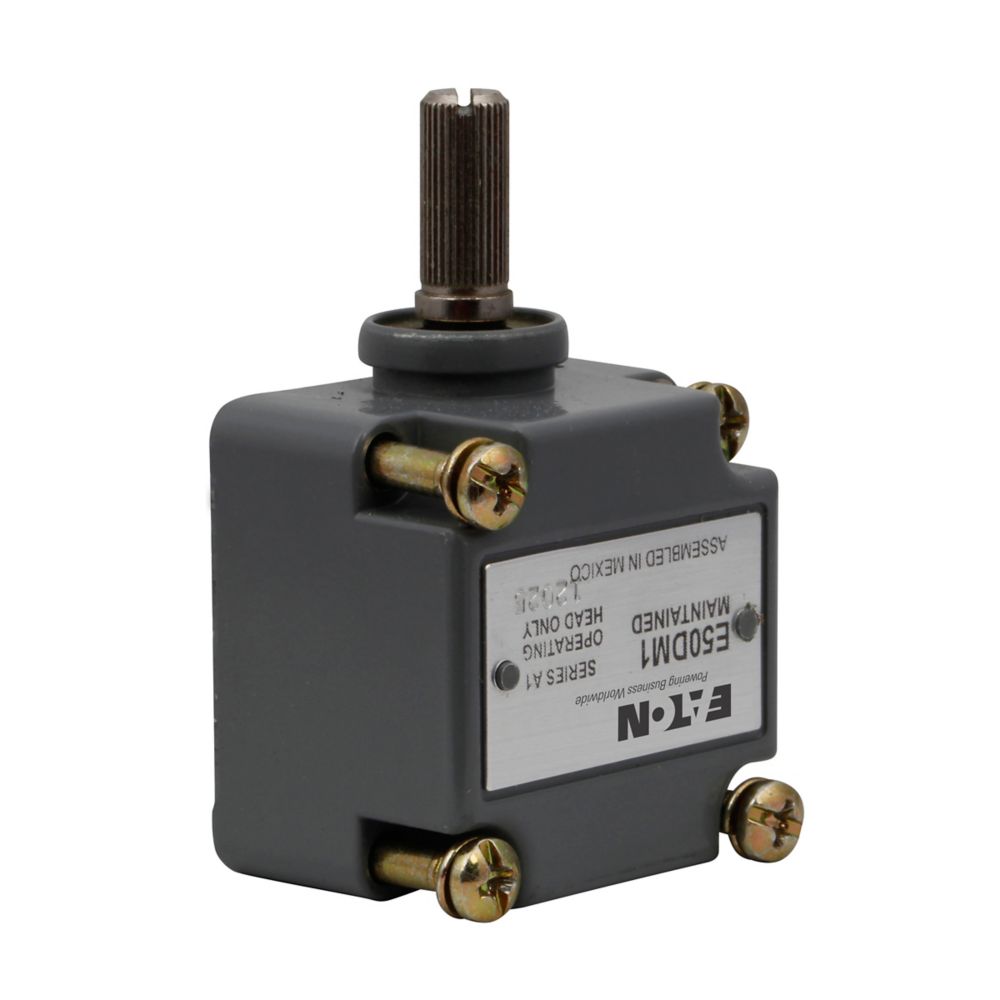

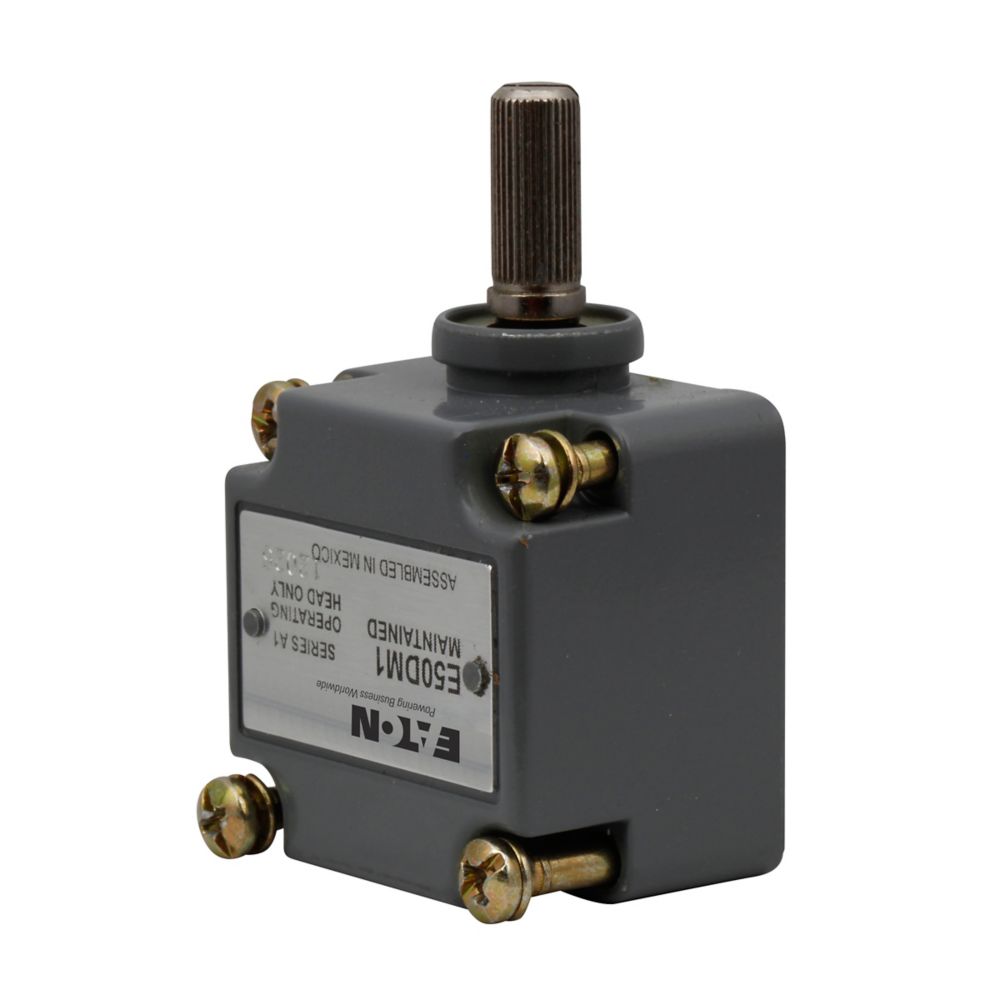

E50 Heavy Duty Limit Switch | Side Rotary Actuator | NEMA 1-6 & IP67 Rated | by Eaton
The E50 Heavy Duty Limit Switch features a side rotary actuator and a maintained two-position switch, making it ideal for industrial automation control systems. With a robust die cast zinc enclosure and a wide operating temperature range of -10°C to 50°C, this switch ensures reliable performance in various applications, including machinery safety and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: E50 Heavy Duty Limit Switch | Side Rotary Actuator | NEMA 1-6 & IP67 Rated | by Eaton
Brand: Eaton
SKU: E50DM1
Alternatively Known As: E50 NEMA Limit Switch, E50 Side Rotary Limit Switch, Heavy Duty Plug-in Limit Switch
Technical Specifications
- Actuator: Side rotary, maintained 2 position
- Operating temperature range: -10°C to 50°C (14°F to 122°F)
- Enclosure material: Die cast zinc
- Environmental rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Contact operation angle: 50 degrees
- Terminal type: Screw terminal
- Certifications: UL Recognized, CSA Certified, CE Marked
- Compliance: RoHS
- Dimensions (H x L x W): 62mm x 27mm x 39mm
- Weight: 0.1 kg
Key Features
- Heavy duty plug-in limit switch with side rotary actuator
- Maintained two-position switch with 50 degrees to operate contacts
- Wide operating temperature range from -10°C to 50°C (14°F to 122°F)
- Robust die cast zinc enclosure for durability
- Environmental ratings: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67
- Screw terminal connections for secure wiring
- Certified UL Recognized, CSA Certified, and CE Marked
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial control equipment to ensure compliance with safety standards and proper operation.
Applications
- Industrial automation control systems
- Machinery safety and position sensing
- Conveyor systems
- Manufacturing equipment
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Durable construction reduces replacement frequency and waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50 Heavy Duty Limit Switch E50DM1 is available for immediate purchase, ideal for industrial automation and machinery safety applications.
