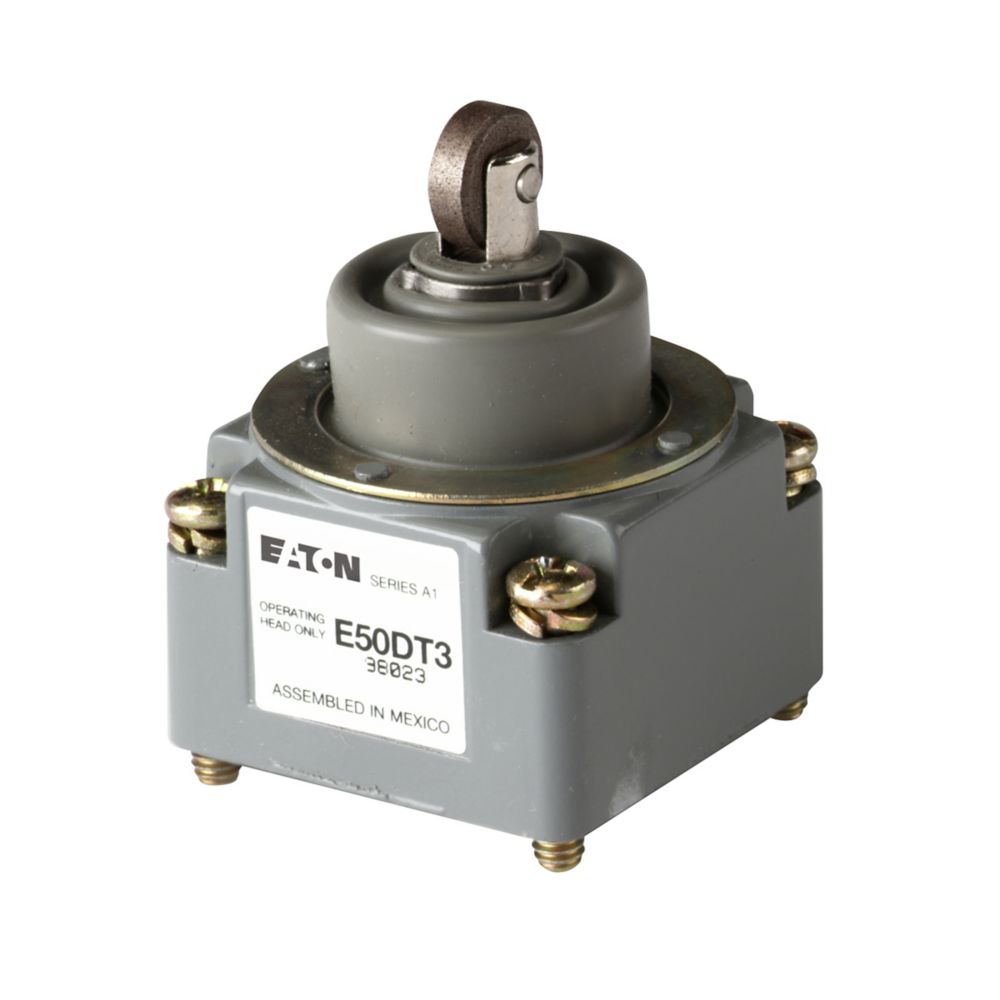

E50 Heavy Duty Limit Switch | Top Push Roller Actuator | NEMA 1-6P & IP67 Rated | by Eaton
The E50 Heavy Duty Limit Switch is designed for industrial automation control systems, featuring a top push roller actuator and a durable die cast zinc enclosure. With an environmental rating of NEMA 1, 3, 4, 6, and IP67, it operates effectively in various conditions, making it ideal for conveyor systems and machine safety applications. Certified to UL and CSA standards, this switch ensures reliable performance and compliance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: E50 Heavy Duty Limit Switch | Top Push Roller Actuator | NEMA 1-6P & IP67 Rated | by Eaton
Brand: Eaton
SKU: E50DT3
Alternatively Known As: E50 Limit Switch, Heavy Duty Limit Switch, Eaton E50DT3 Switch, Industrial Limit Switch
Technical Specifications
- Actuator: Top push roller
- Enclosure Material: Die cast zinc
- Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Terminals: Screw type
- Certifications: UL Listed, UL Recognized, CSA Certified, CE Marked
- Compliance: RoHS Compliant
- Dimensions (H x L x W): 45mm x 48mm x 39mm
- Weight: 0.1 kg
Key Features
- Heavy duty plug-in limit switch with top push roller actuator
- Die cast zinc enclosure for durability
- Wide environmental rating including NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67
- Operating temperature range from -10°C to 50°C (14°F to 122°F)
- Screw terminal connections for secure wiring
- Certified to UL, CSA standards and CE marked
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial control equipment to ensure compliance with safety standards and proper operation.
Applications
- Industrial automation control systems
- Conveyor systems
- Machine safety and position detection
- Manufacturing equipment
- Material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Durable die cast zinc housing extends product life reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50 Heavy Duty Limit Switch E50DT3 is available for immediate purchase, ideal for industrial automation and safety applications.
