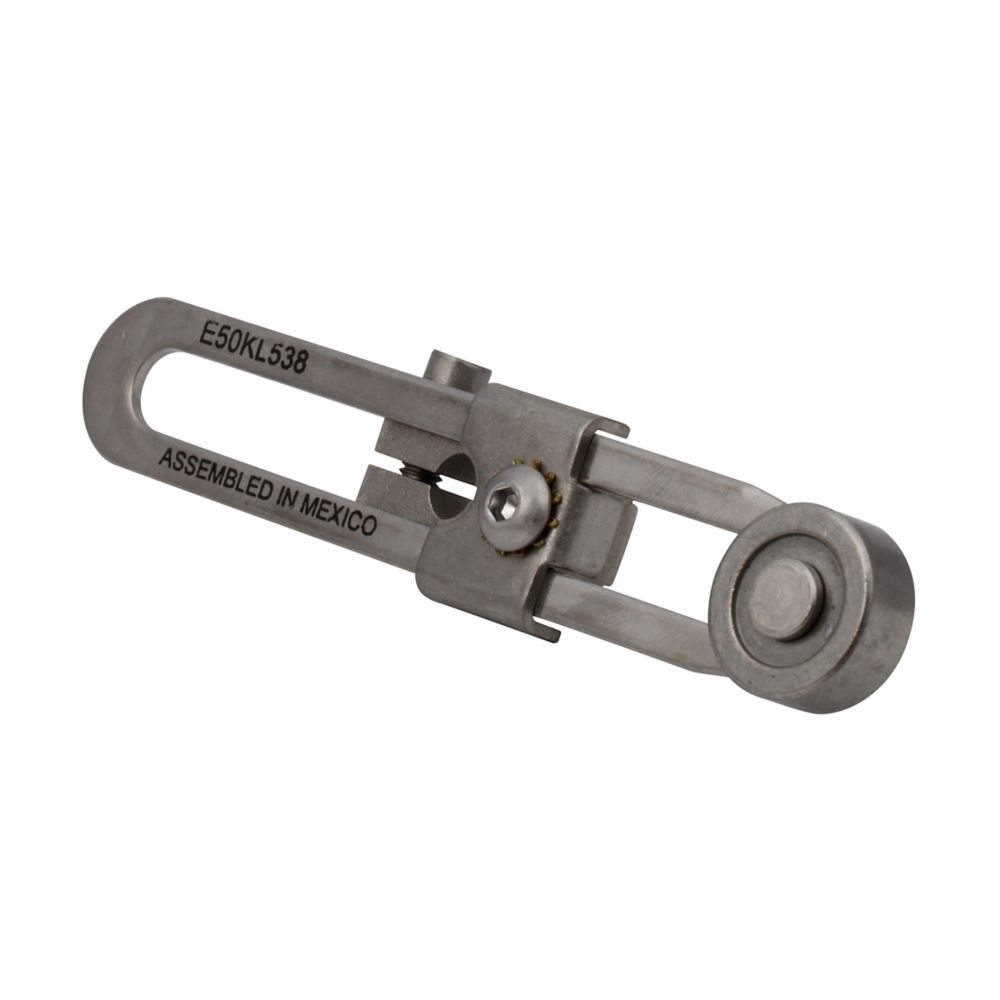

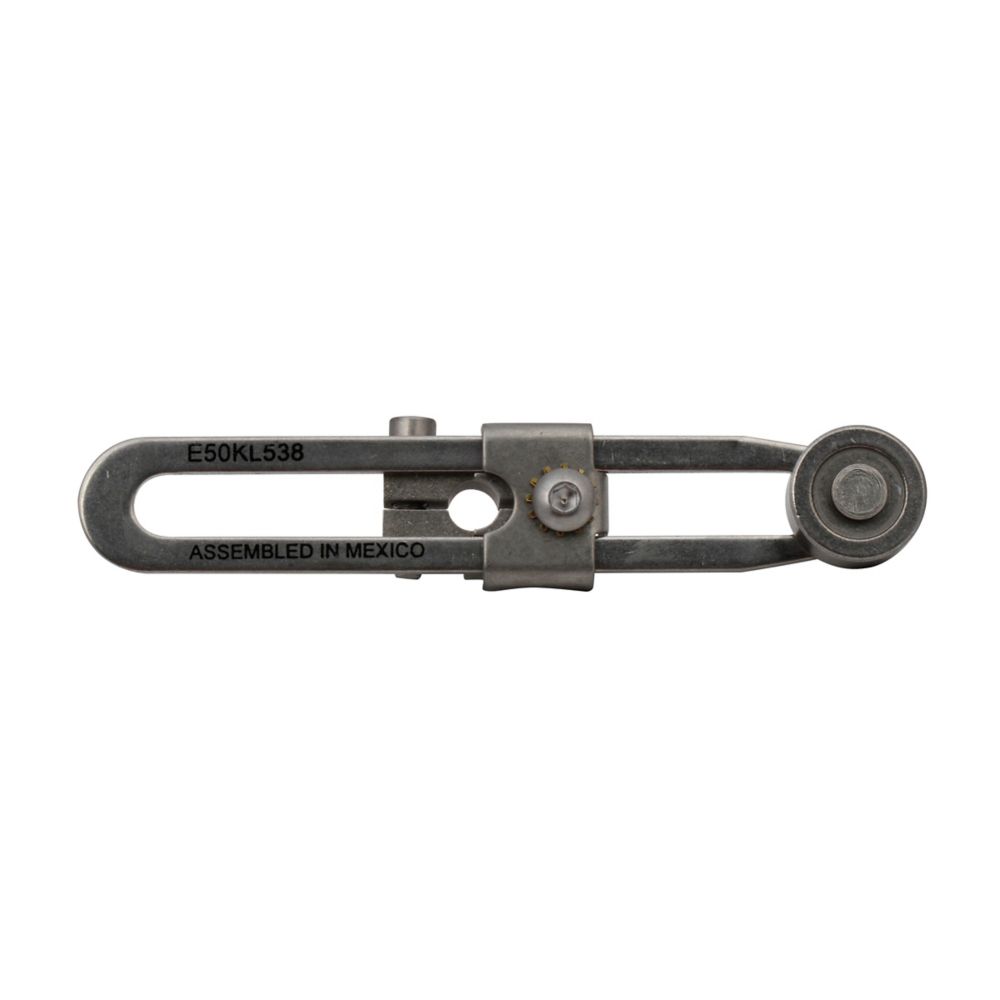

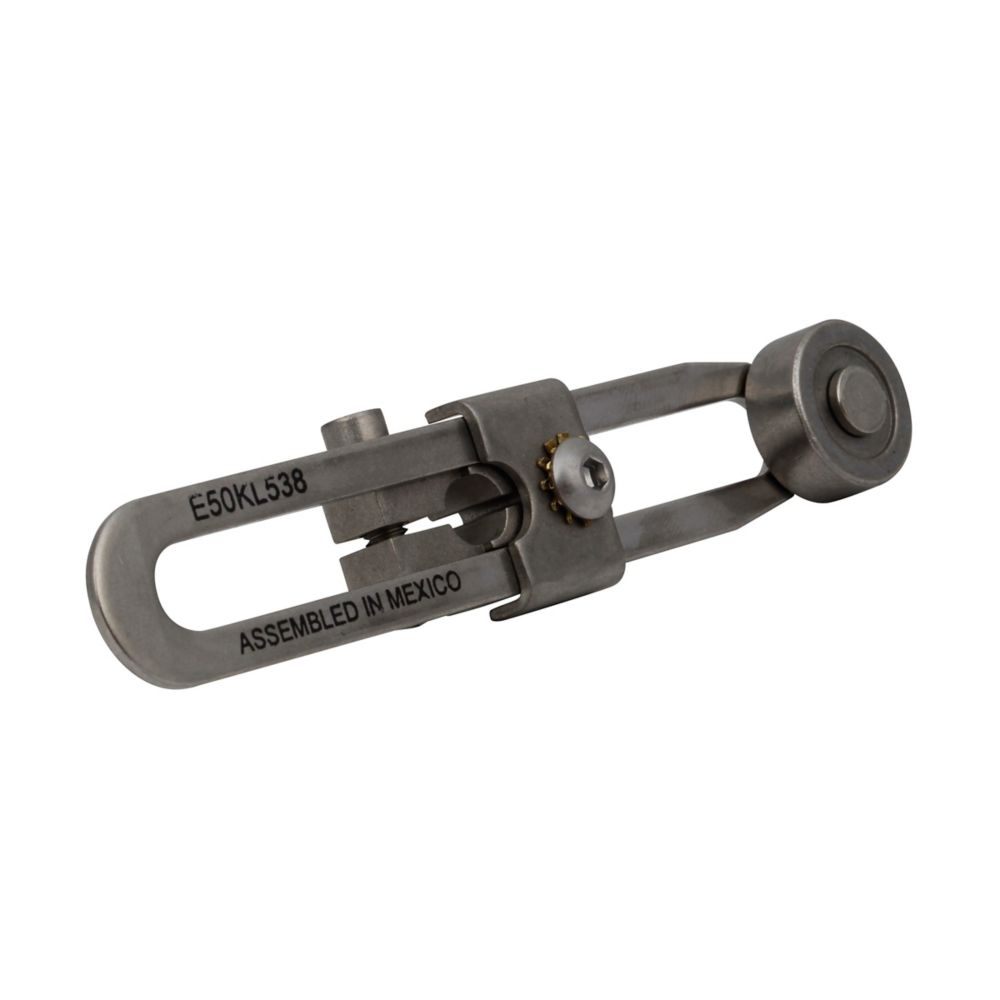

E50 Operating Lever | 3.75 Inch Adjustable Rotary Lever | NEMA Rated | by Eaton
The E50 Operating Lever is designed for reliable actuation in industrial machinery control systems. With a 3.75-inch adjustable rotary lever made from Type 303 stainless steel, it offers exceptional corrosion resistance and durability. Ideal for automation equipment, this lever operates effectively in harsh environments, featuring a wide temperature range from -10°C to 121°C and multiple NEMA environmental ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: E50 Operating Lever | 3.75 Inch Adjustable Rotary Lever | NEMA Rated | by Eaton
Brand: Eaton
SKU: E50KL538
Alternatively Known As: E50 Limit Switch Lever, E50 Rotary Lever, E50KL538 Operating Lever, NEMA Limit Switch Lever
Technical Specifications
- Lever Length: 3.75 inches (95 mm)
- Lever Material: Type 303 Stainless Steel
- Roller Diameter: 0.75 inch (19 mm)
- Roller Width: 0.32 inch (8 mm)
- Operating Temperature Range: -10°C to 121°C (14°F to 250°F)
- Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Certifications: UL Listed, CSA Certified, CE Marked
- Compliance: RoHS Compliant
- Dimensions (H x L x W): 21mm x 117mm x 19mm
- Weight: 0.1 kg
Key Features
- Adjustable rotary lever with 3.75 inch length
- Type 303 stainless steel lever for corrosion resistance
- Nylatron roller with 0.75 inch diameter and 0.32 inch width
- Wide operating temperature range from -10°C to 121°C (14°F to 250°F)

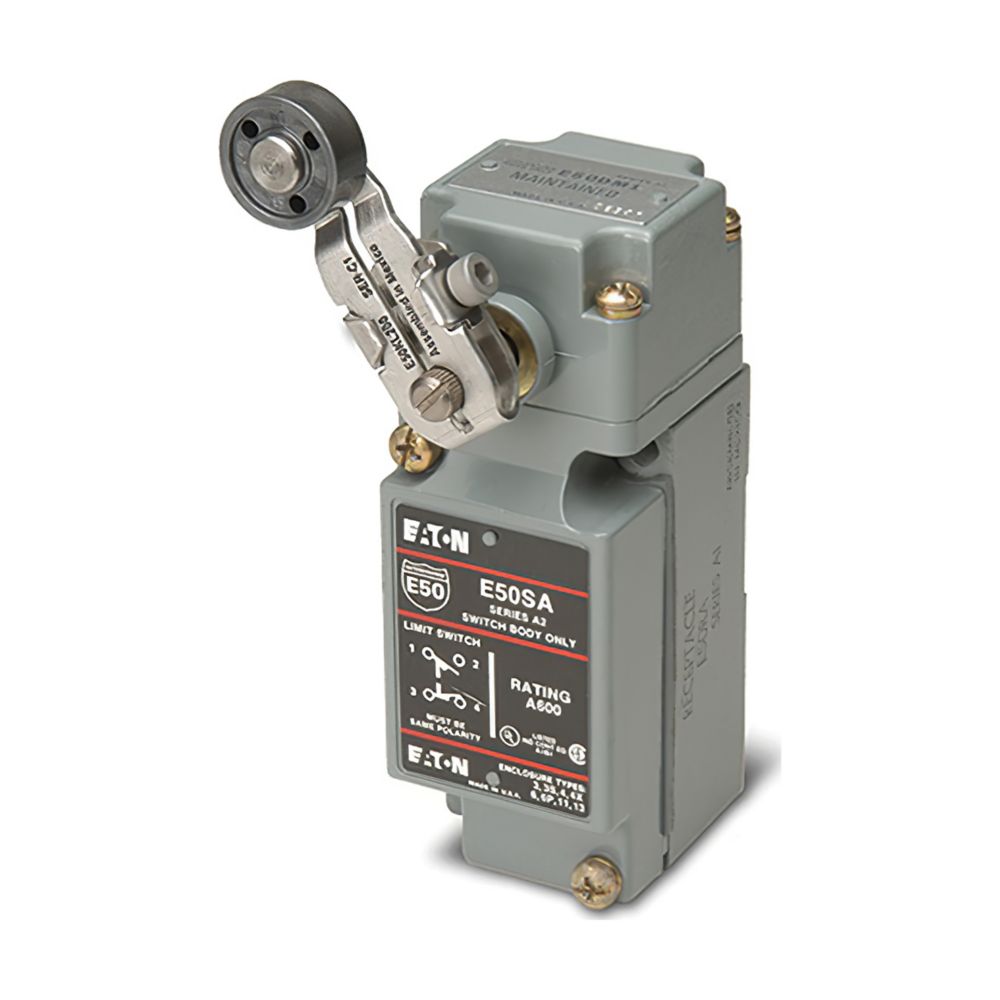

- Compatible with E50 series NEMA limit switches
- Robust metal construction suitable for harsh environments
- Environmental ratings include NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67
- Certified UL Listed, CSA Certified, CE Marked, and RoHS Compliant
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with NEMA limit switch systems to ensure proper adjustment and secure mounting.
Applications
- Industrial machinery control systems
- Automation equipment requiring limit switch actuation
- Heavy-duty environments needing reliable rotary lever operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable stainless steel and Nylatron materials extend product life reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50 NEMA heavy duty plug-in limit switch operating lever E50KL538 is available for immediate purchase, ideal for industrial and automation applications requiring durable limit switch actuation.
