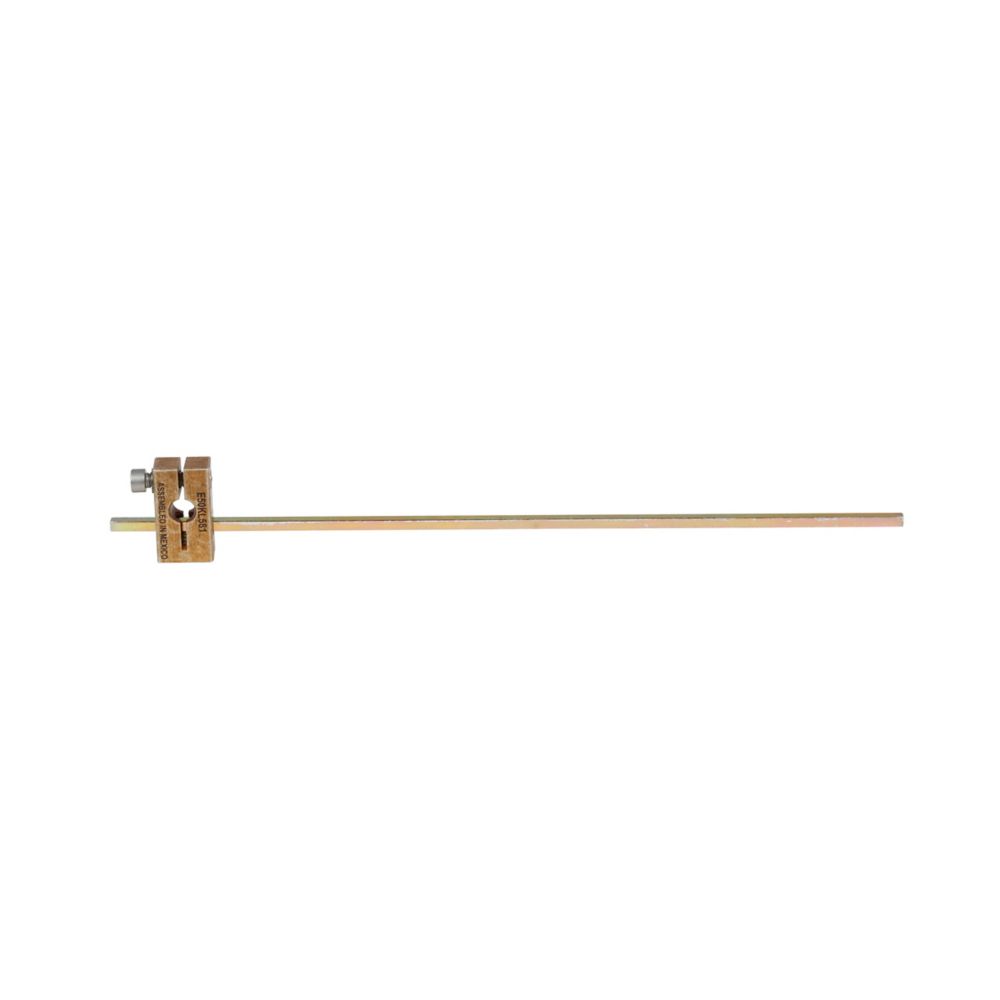

E50 Operating Lever | Heavy Duty Metal Construction | Adjustable Rod Actuator | NEMA & IP67 Rated | @Each by Eaton
The E50 Operating Lever is designed for industrial machinery control systems, featuring a heavy-duty metal construction and an adjustable rod actuator for versatile operation. With a wide environmental rating including NEMA 1, 3, 4, and IP67, it ensures reliable performance in various applications, making it ideal for automation equipment and heavy-duty electrical control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: E50 Operating Lever | Heavy Duty Metal Construction | Adjustable Rod Actuator | NEMA & IP67 Rated | @Each by Eaton
Brand: Eaton
SKU: E50KL581
Alternatively Known As: E50 Limit Switch Lever, E50 Rod Lever, E50KL581 Operating Lever, Heavy Duty Limit Switch Actuator
Technical Specifications
- Rod length: 8.75 inches (222 mm)
- Rod diameter: 0.12 inches (3 mm)
- Material: Steel
- Operating temperature range: -10°C to 121°C (14°F to 250°F)
- Torque rating: Minimum 2.2 in-oz return torque
- Environmental rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Certifications: UL Listed, CSA Certified, CE Marked
- Compliance: RoHS Compliant
- Dimensions (H x L x W): 10mm x 230mm x 28mm
- Weight: 0.14 kg
Key Features
- Heavy duty metal construction for durability
- Adjustable rod actuator for versatile operation
- Compatible with E50 series side rotary limit switches
- Wide environmental rating including NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67
- Operating temperature range from -10°C to 121°C (14°F to 250°F)
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with limit switch assemblies to ensure proper operation and safety.
Applications
- Industrial machinery control systems
- Automation equipment requiring limit switch actuation
- Heavy duty electrical control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant reducing hazardous substances
- Durable metal construction extends product life reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50 NEMA heavy duty plug-in limit switch operating lever E50KL581 is available for immediate purchase, ideal for industrial and automation control applications.
