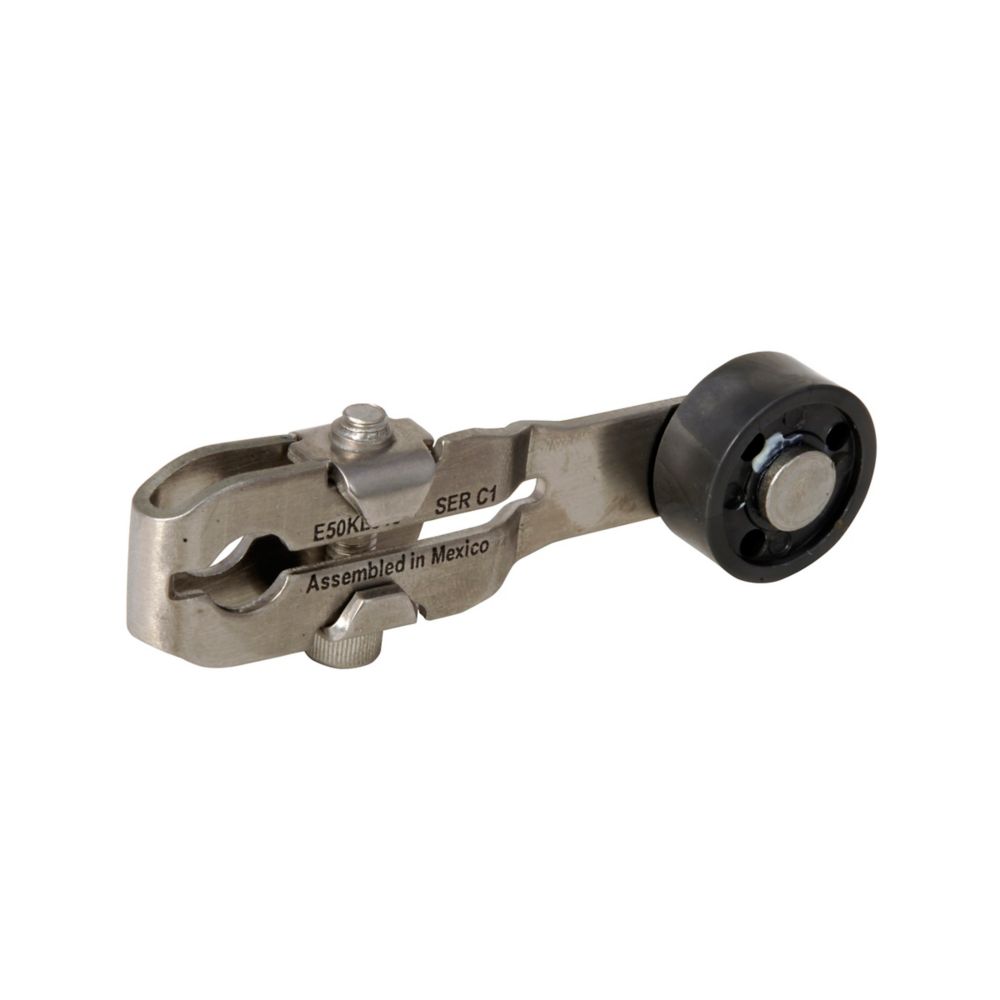

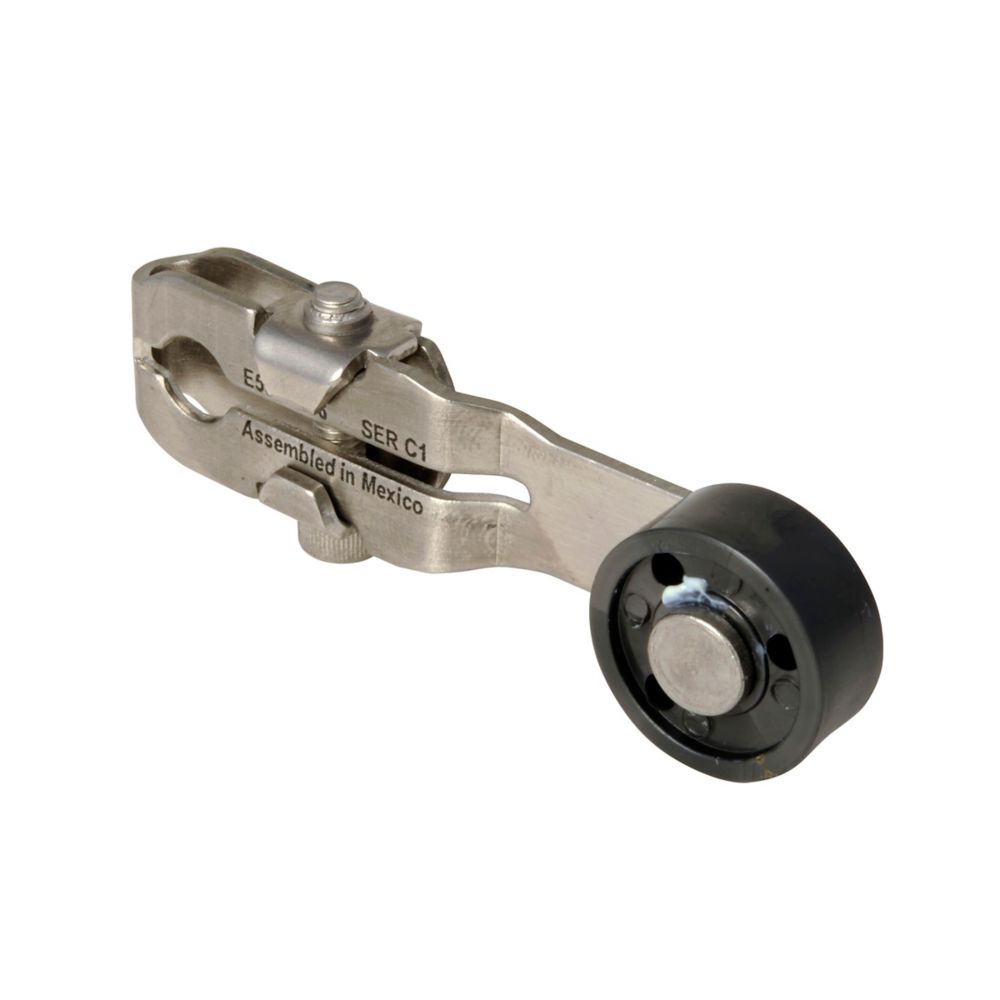

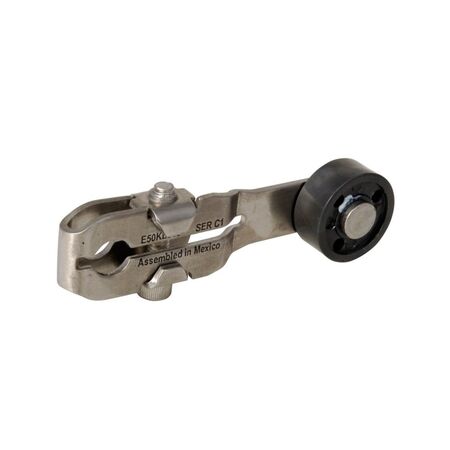

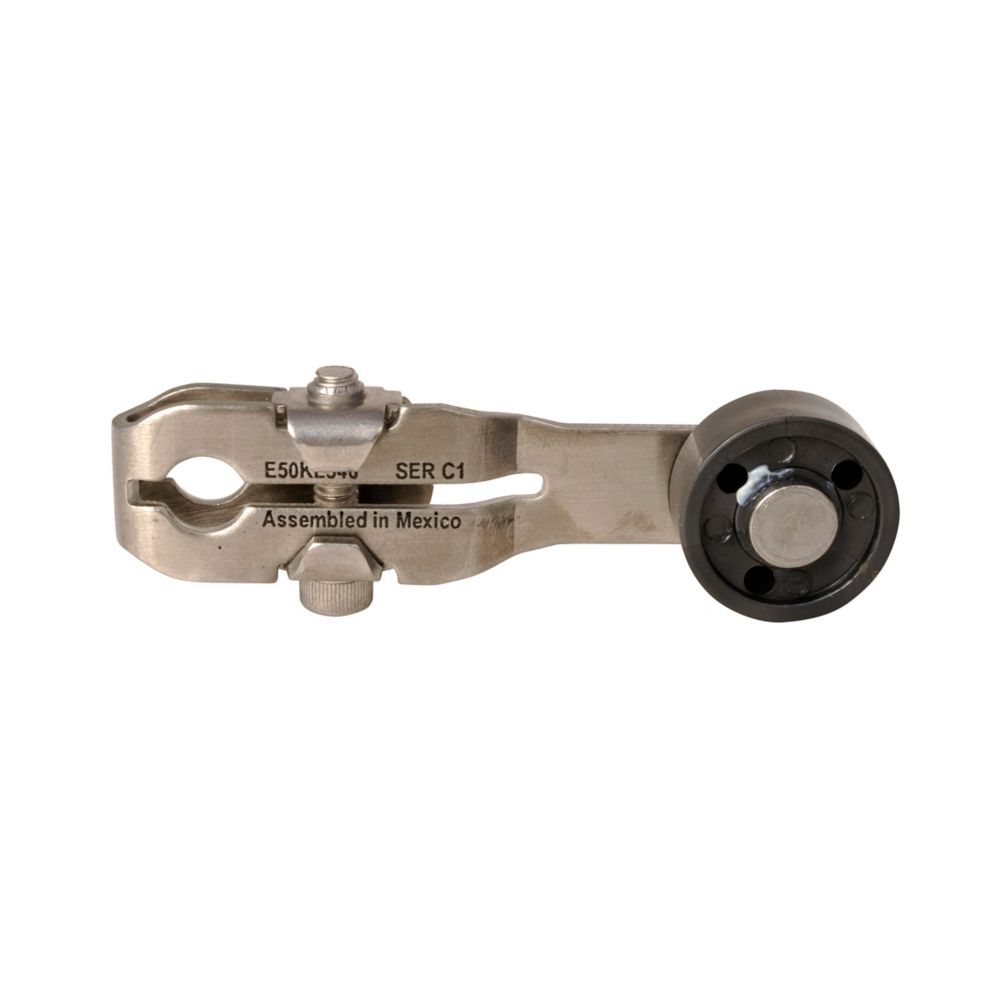

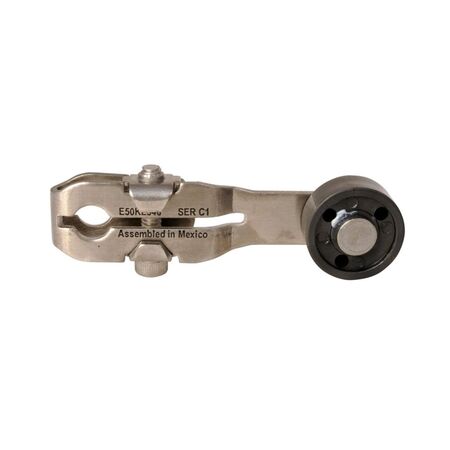

E50 Operating Lever | Stainless Steel Construction | Nylatron Roller | NEMA Rated | @Each by Eaton
The E50 Operating Lever is a heavy-duty plug-in limit switch operator designed for industrial machinery control systems. Featuring a robust stainless steel construction and a Nylatron roller with a 0.75-inch diameter, it operates effectively in temperatures ranging from -10°C to 121°C. With multiple NEMA ratings and certifications, this lever is perfect for automation equipment in demanding environments, ensuring reliable actuation and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Stainless steel lever with Nylatron roller
- Roller Diameter: 0.75 inch (19 mm)
- Roller Width: 0.32 inch (8 mm)
- Operating Temperature Range: -10°C to 121°C (14°F to 250°F)
- Torque Rating: 0.71 in-oz minimum return
- Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Certifications: UL Listed, CSA Certified, CE Marked
- Compliance: RoHS Compliant
- Dimensions (H x L x W): 15mm x 69mm x 19mm
- Weight: 0.1 kg
Key Features
- Heavy duty plug-in limit switch operator
- Rotary lever with stainless steel construction
- Nylatron roller with 0.75 inch diameter and 0.32 inch width
- Wide operating temperature range from -10°C to 121°C (14°F to 250°F)
- Environmental ratings including NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67
- Torque rating of 0.71 in-oz minimum return
- UL Listed, CSA Certified, CE marked, and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with limit switch assemblies to ensure proper operation and safety compliance.
Applications
- Industrial machinery control systems
- Automation equipment requiring limit switch operation
- Heavy duty environments needing reliable rotary lever actuation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable materials extend product life reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50 NEMA heavy duty plug-in limit switch operating lever E50KL546 is available for immediate purchase, ideal for industrial and automation applications requiring robust limit switch accessories.
