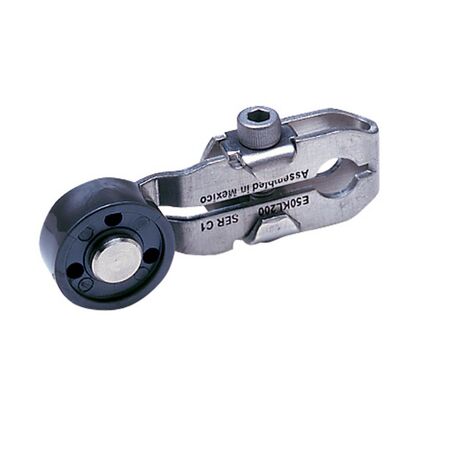

E50 Operating Levers | Type 303 Stainless Steel | Nylatron Roller | NEMA 1-6 & IP67 Rated | @Each by Eaton
E50 Operating Levers are designed for industrial machinery control systems, featuring a heavy-duty Type 303 stainless steel rotary lever and a durable Nylatron roller. With an environmental rating of NEMA 1, 3, 4, 6, and IP67, these levers operate effectively in harsh conditions, making them ideal for automation equipment and heavy-duty environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: E50 Operating Levers | Type 303 Stainless Steel | Nylatron Roller | NEMA 1-6 & IP67 Rated | @Each by Eaton
Brand: Eaton
SKU: E50KL200
Alternatively Known As: E50 NEMA Limit Switch Lever, Rotary Lever E50KL200, Eaton Limit Switch Operator Lever
Technical Specifications
- Material: Type 303 Stainless Steel lever, Nylatron roller
- Roller Diameter: 0.75 inch (19 mm)
- Roller Width: 0.32 inch (8 mm)
- Operating Temperature: -10°C to 121°C (14°F to 250°F)
- Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Certifications: UL Listed, CSA Certified, CE Marked
- Compliance: RoHS Compliant
- Dimensions (H x L x W): 17mm x 56mm x 19mm
- Weight: 0.1 kg
Key Features
- Heavy duty plug-in limit switch operator
- Type 303 stainless steel rotary lever
- Nylatron roller with 0.75 inch diameter and 0.32 inch width
- Wide environmental rating including NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67
- Operating temperature range from -10°C to 121°C (14°F to 250°F)
- UL Listed, CSA Certified, CE marked, and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial limit switch systems to ensure proper operation and safety.
Applications
- Industrial machinery control systems
- Automation equipment requiring limit switch actuation
- Heavy-duty environments needing reliable rotary lever operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable materials extend product life reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50KL200 NEMA Limit Switch Operating Lever is available for immediate purchase, ideal for industrial and automation applications requiring robust limit switch actuation.
