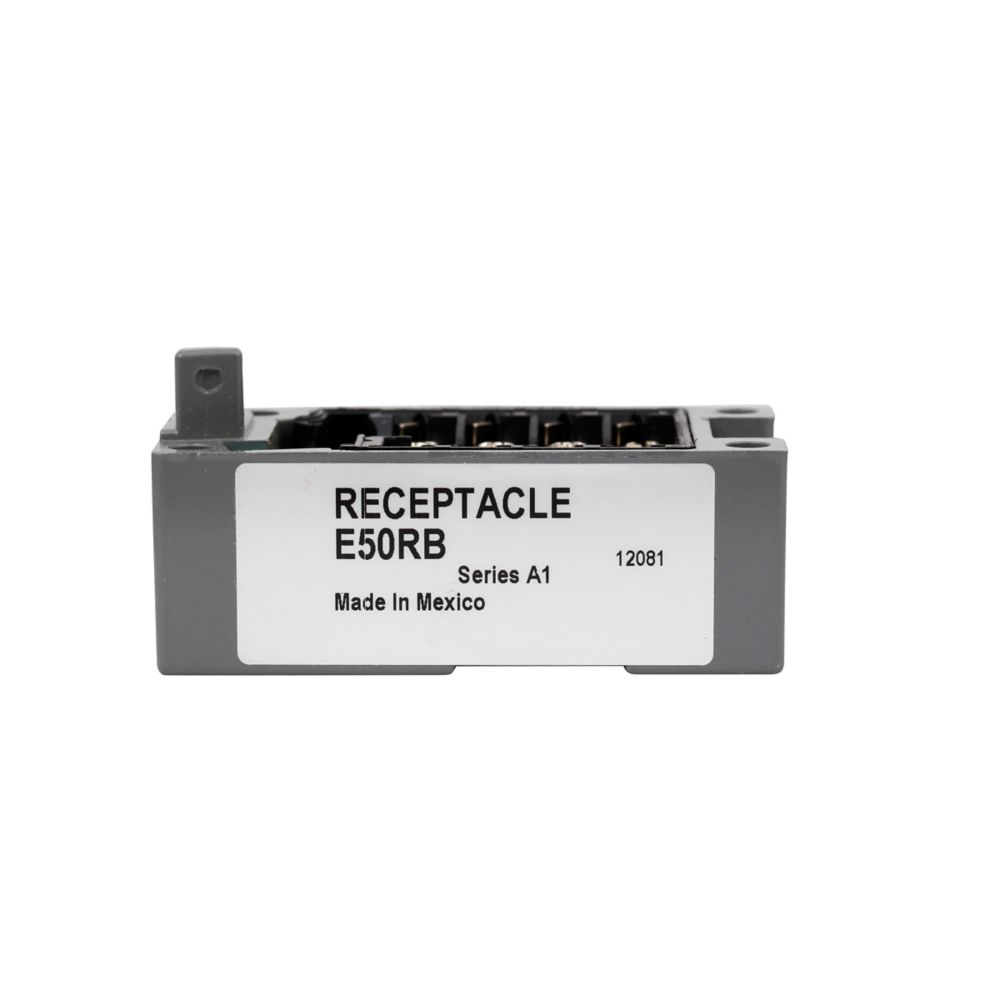

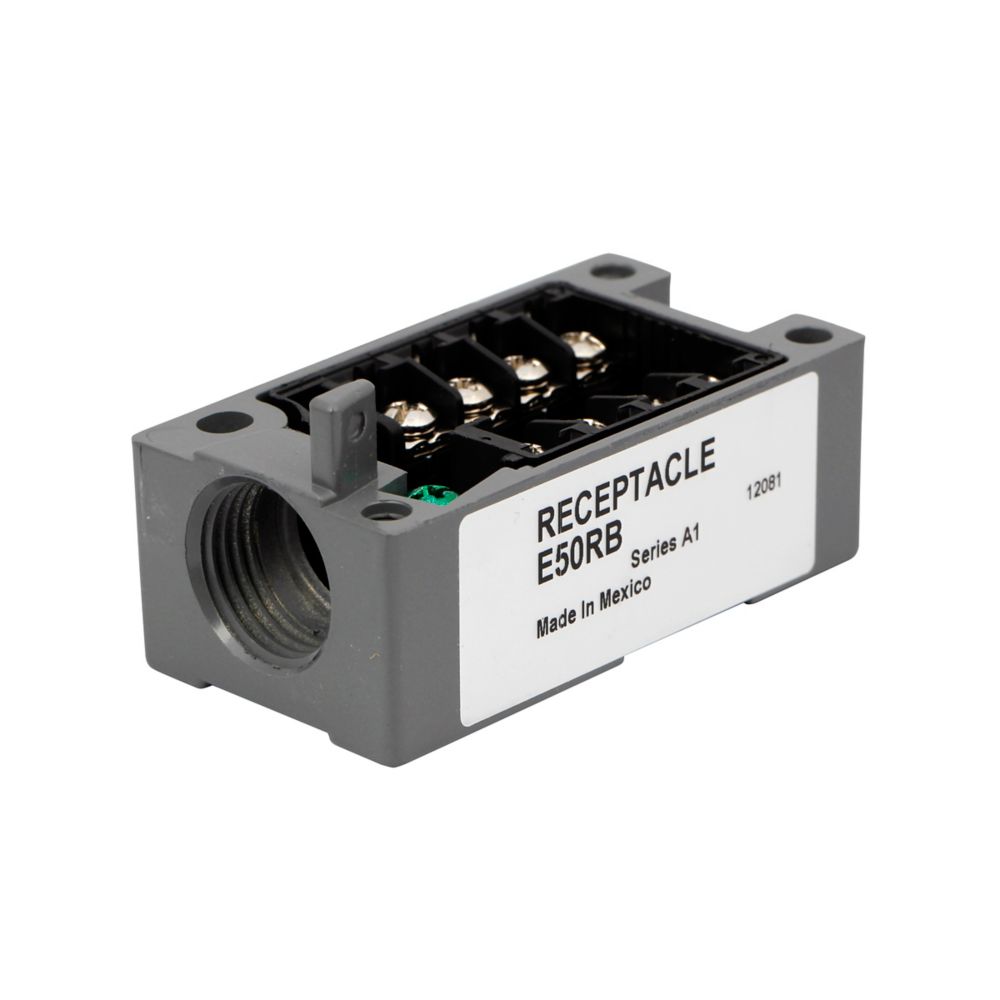

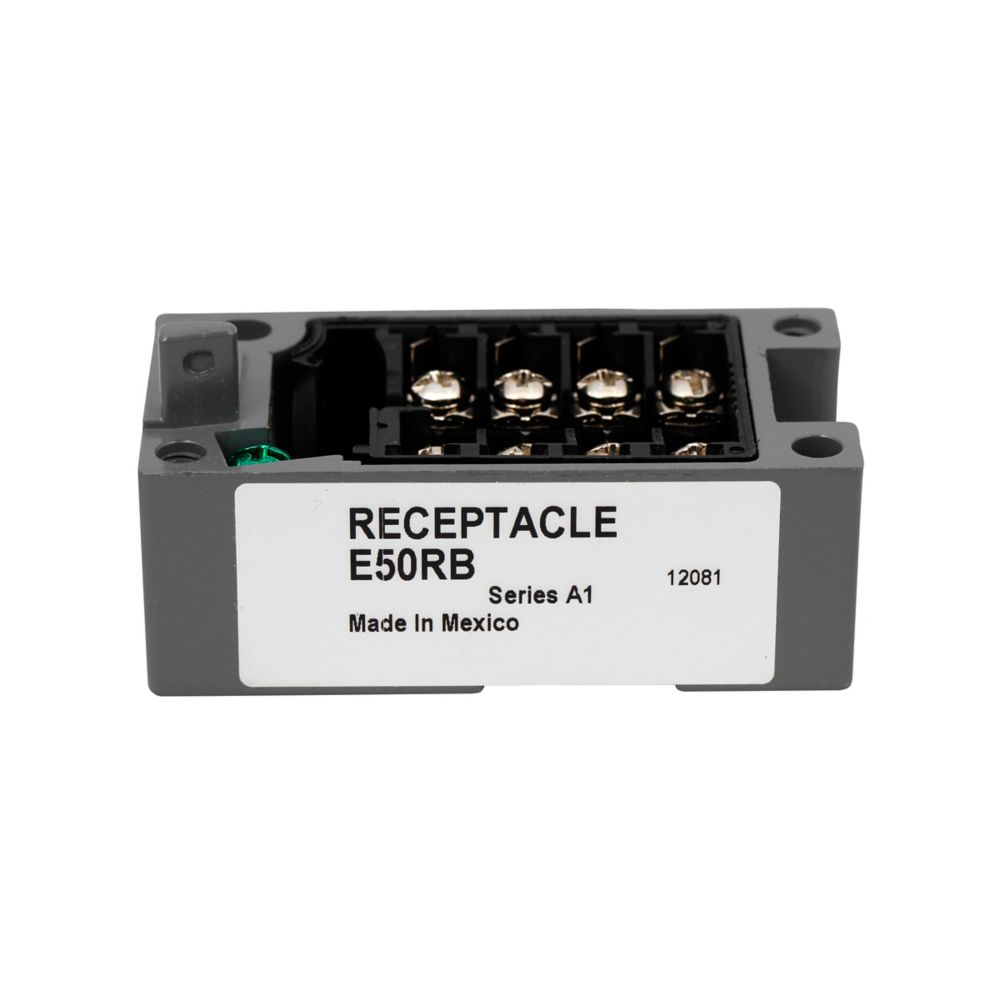

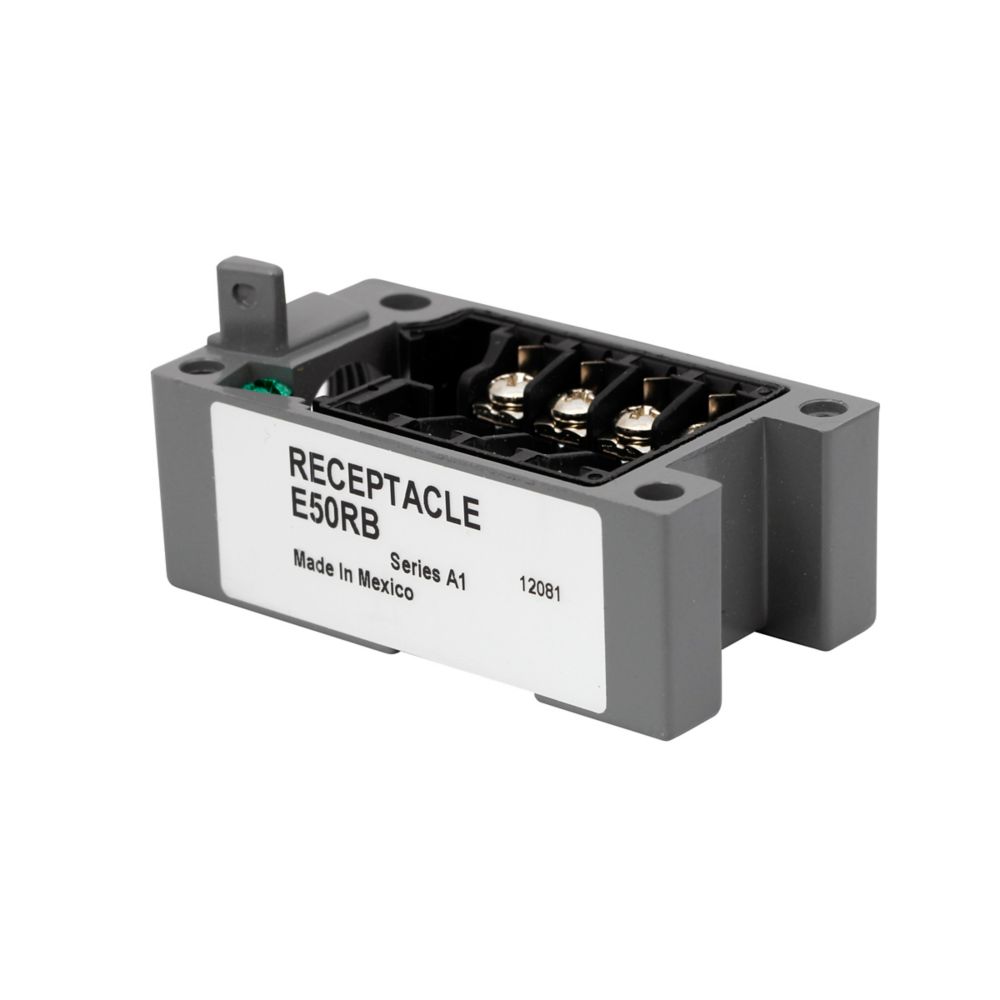

E50 Surface Mount Receptacle | Heavy Duty Design | NEMA 1, 3, 4, 6, IP67 Rated | @Each by Eaton
The E50 Surface Mount Receptacle is a heavy-duty plug-in limit switch receptacle designed for industrial control systems. With a durable die cast zinc enclosure and a wide operating temperature range of -40°F to 250°F, it ensures robust performance in demanding environments. Ideal for machinery and equipment requiring reliable, weatherproof electrical connections, this receptacle is UL Recognized and CSA Certified for safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: E50 Surface Mount Receptacle | Heavy Duty Design | NEMA 1, 3, 4, 6, IP67 Rated | @Each by Eaton
Brand: Eaton
SKU: E50RB
Alternatively Known As: E50 NEMA Limit Switch Receptacle, E50RB Plug-in Limit Switch, Heavy Duty Limit Switch Receptacle
Technical Specifications
- 2 pole (9-terminal) receptacle
- Operating temperature range: -40°F to 250°F (-40°C to 121°C)
- Connection type: Screw terminal
- Conduit connection: 1/2 NPT
- Enclosure material: Die cast zinc
- Environmental rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Switch type: Neutral position with 5° travel
- Dimensions (H x L x W): 27mm x 74mm x 39mm
- Weight: 0.1 kg
Key Features
- Heavy duty plug-in limit switch receptacle
- Die cast zinc enclosure for durability
- Screw terminal connection
- Surface mount installation
- Wide operating temperature range from -40°F to 250°F
- Environmental ratings: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67
- UL Recognized, CSA Certified, CE Marked, RoHS Compliant
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial control systems requiring heavy duty limit switch receptacles
- Environments needing robust, weatherproof electrical connections
- Machinery and equipment with surface mount switch requirements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant reducing hazardous substances
- Durable construction extends product life reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50 Surface Mount Receptacle is available for immediate purchase, ideal for industrial and commercial electrical control applications.
