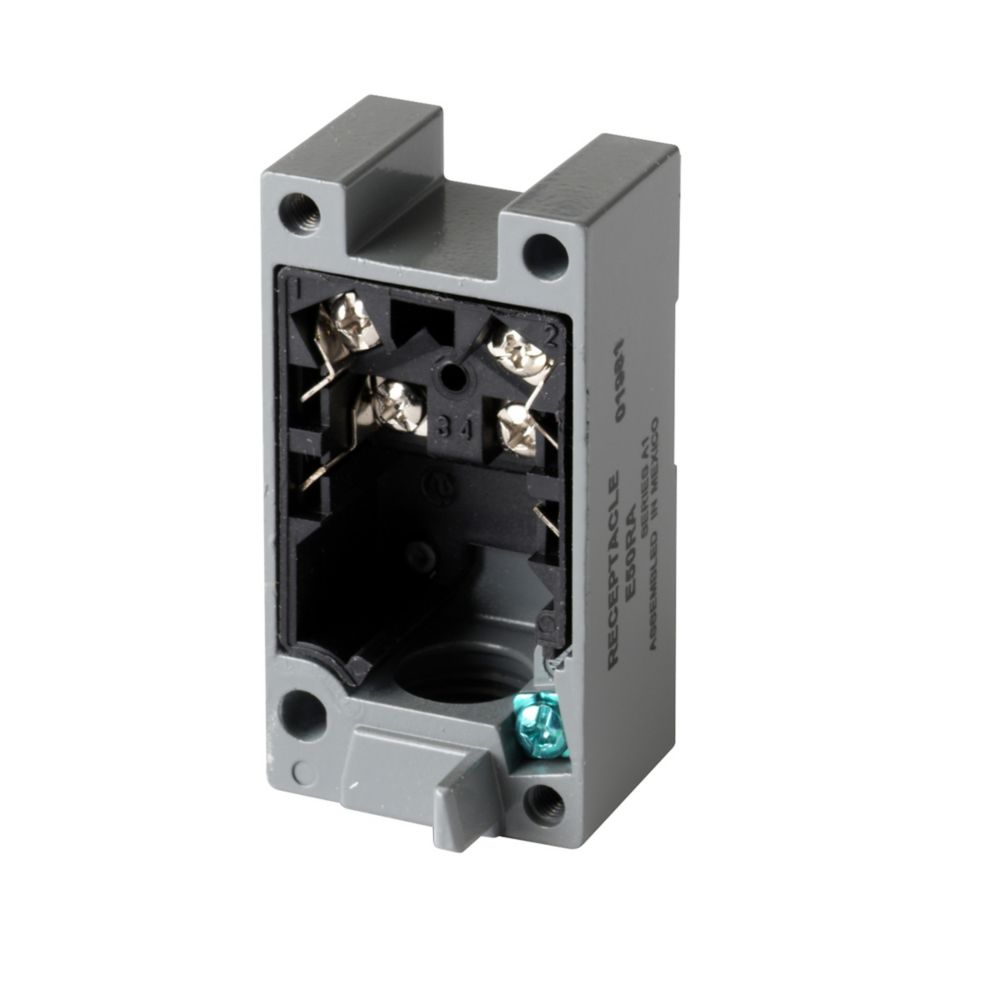

E50RA Imperial Thread Limit Switch Receptacle | NEMA 1-6P & IP67 Rated | Heavy Duty Die Cast Zinc | by Eaton
The E50RA Imperial Thread Limit Switch Receptacle is designed for robust industrial applications, featuring a single-pole, 5-terminal configuration and a heavy-duty die cast zinc enclosure. With an impressive operating temperature range of -40°F to 250°F and environmental ratings of NEMA 1, 3, 4, 6, and IP67, this receptacle is perfect for heavy-duty equipment and control systems in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: E50RA Imperial Thread Limit Switch Receptacle | NEMA 1-6P & IP67 Rated | Heavy Duty Die Cast Zinc | by Eaton
Brand: Eaton
SKU: E50RA
Alternatively Known As: E50 NEMA Limit Switch Receptacle, Eaton E50RA Limit Switch, Heavy Duty Limit Switch Plug-In
Technical Specifications
- Number of poles: Single-pole
- Terminals: 5
- Operating temperature range: -40°F to 250°F (-40°C to 121°C)
- Connection type: Screw terminal
- Conduit size: 1/2 NPT
- Switch type: Gravity return
- Environmental rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Enclosure material: Die cast zinc
- Certifications: UL Recognized, CSA Certified, UL Listed, CE Marked
- Dimensions (H x L x W): 27mm x 74mm x 39mm
- Weight: 0.1 kg
Key Features
- Single-pole, 5-terminal limit switch receptacle
- Heavy duty die cast zinc enclosure
- Screw terminal connection
- Gravity return switch type
- Wide operating temperature range from -40°F to 250°F (-40°C to 121°C)
- Environmental ratings: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67
- Mounting options: front and rear
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper environmental sealing.
Applications
- Industrial machinery control systems
- Heavy duty equipment requiring limit switch functionality
- Environments requiring robust, weatherproof electrical components
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable die cast zinc housing extends product life reducing waste
- High IP67 rating ensures protection against dust and water ingress, minimizing environmental damage
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50RA NEMA Heavy Duty Plug-In Limit Switch Receptacle is available for immediate purchase, ideal for industrial and heavy-duty electrical control applications.
