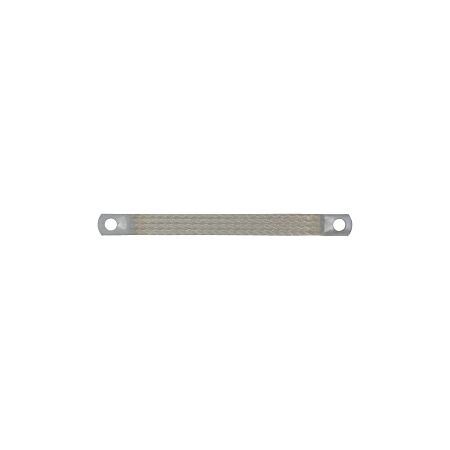

Earth Braid 150A 25mm² | 200mm Length | Tinned Copper by NHP
Earth braid with 150A rating and 25mm² cross-section—ideal for electrical installations. Built for flexibility and corrosion resistance, with tinned copper and connecting lugs for secure connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: nVent ERIFLEX Earth Braids 150A 25mm2 Length 200mm Hole Diameter 10.5mm
Brand: NHP
SKU: 556690
Alternatively Known As: Earth Braid, Earthing Strip, Flexible Earthing Conductor
Technical Specifications
- Rated Current: 150 A
- Conductor Material: Copper
- Braided: Yes
- Shape of Conductor: Flat
- Conductor Surface: Tinned
- Conductor Category: Class 5 = flexible
- Nominal Cross Section Conductor: 25 mm²
- Hole Diameter Connection: 10.5 mm
- Max Operating Temperature: 105 °C
- Insulated: No
- With Connecting Lugs: Yes
- Connection Lugs Drilled: Yes
- With Cable Lugs: Yes
- Dimensions (H x L x W): n/a mm x 200mm x 22mm
- Weight: 0.05 kg
Key Features
- Rated current of 150 A for reliable performance.
- Flat braided design for flexibility and ease of installation.
- Tinned copper conductor for enhanced corrosion resistance.
- Includes connecting lugs for secure connections.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Electrical installations requiring effective earthing solutions.
- Industrial applications where flexible earthing is necessary.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The nVent ERIFLEX Earth Braids 150A 25mm2 Length 200mm Hole Diameter 10.5mm is available now for immediate purchase. Ideal for electrical installations requiring effective earthing solutions.
