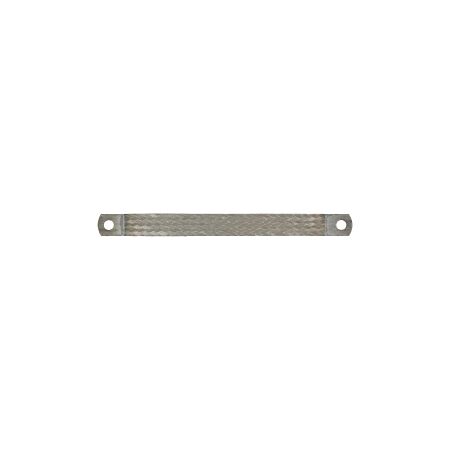

Earth Braid 290A 70mm² | 300mm Length | Tinned Copper | 12.5mm Hole by NHP
Earth braid with 290A rating and 70mm² cross-section—ideal for electrical installations. Built for flexibility and corrosion resistance, with tinned copper and 12.5mm hole diameter for secure connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: nVent ERIFLEX Earth Braids 290A 70mm2 Length 300mm Hole Diameter 12.5mm
Brand: NHP
SKU: 563420
Alternatively Known As: Earth Braid, Earthing Strip, Flexible Earthing Conductor
Technical Specifications
- Rated Current: 290 A
- Conductor Material: Copper
- Braided: Yes
- Shape of Conductor: Flat
- Conductor Surface: Tinned
- Conductor Category: Class 5 = flexible
- Nominal Cross Section Conductor: 70 mm²
- Hole Diameter Connection: 12.5 mm
- Max Operating Temperature: 105 °C
- Insulated: No
- With Connecting Lugs: Yes
- Connection Lugs Drilled: Yes
- With Cable Lugs: Yes
- Dimensions (H x L x W): 3.4mm x 300mm x 28mm
- Weight: 0.21 kg
Key Features
- Rated current of 290 A for high-performance applications.
- Flat braided design for flexibility and ease of installation.
- Tinned copper conductor for enhanced corrosion resistance.
- Includes connecting lugs for secure connections.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Electrical installations requiring effective earthing solutions.
- Industrial applications where flexible earthing is necessary.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The nVent ERIFLEX Earth Braids 290A 70mm2 Length 300mm Hole Diameter 12.5mm is available now for immediate purchase, ideal for electrical installations.
