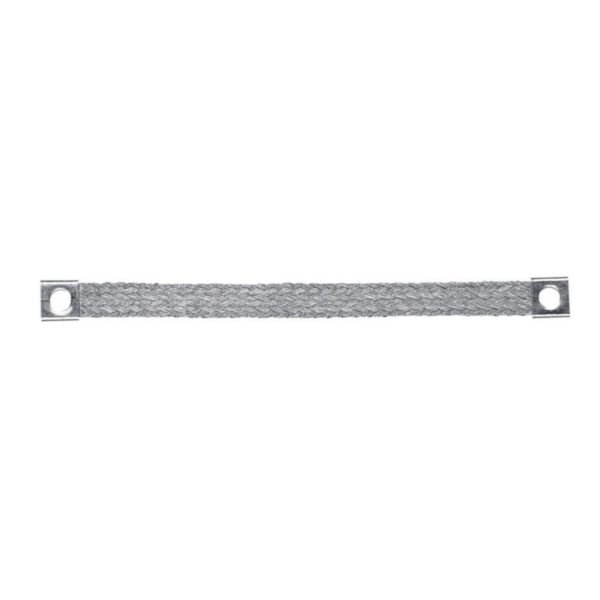

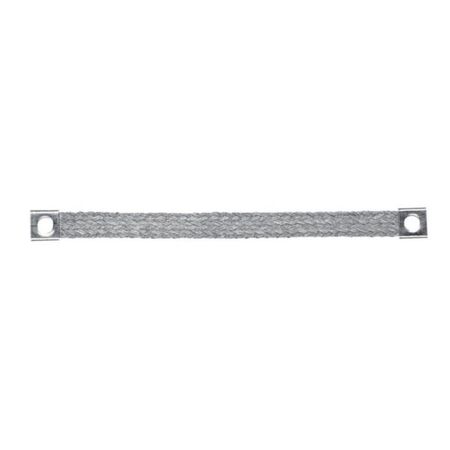

Earth Braid | Copper Conductor | Flexible Class 5 | 30 mm² | @Each of 1 | by Legrand
Earth braid with a copper conductor and tinned surface, designed for effective grounding applications. This flexible Class 5 flat braided conductor features a nominal cross section of 30 mm² and is ideal for use in industrial enclosures and electrical panels. Ensure safety and compliance with AS/NZS 3000 standards while minimizing environmental impact with its durable design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor Material: Copper
- Conductor Surface: Tinned
- Nominal Cross Section: 30 mm²
- Conductor Category: Class 5 (Flexible)
- Shape: Flat braided
- Length: 200 mm
- Cable Width Approximate: 20 mm
- Insulated: No
- Connection Lugs Drilled: Yes (8.5 mm holes)
- With Connecting Lugs: No
- With Cable Lugs: No
- Dimensions (H x L x W): 2mm x 200mm x 20mm
- Weight: 0.1 kg
Key Features
- Copper conductor with tinned surface for corrosion resistance
- Flexible Class 5 flat braided conductor
- Nominal cross section of 30 mm²
- Length of 200 mm with 8.5 mm diameter drilled holes for connection
- Non-insulated earth braid designed for grounding applications
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper grounding and compliance with electrical safety standards.
Applications
- Electrical grounding and earthing in industrial enclosures
- Protective conductor connections in Altis cabinets
- Use in electrical panels and switchgear for safety grounding
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable copper material ensures long service life reducing replacement waste
- Tinned surface enhances corrosion resistance, minimizing environmental impact from corrosion products
Warranty Information
Legrand standard warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Earth Braid - Capacity 30 mm² is available for immediate purchase, ideal for industrial and commercial electrical grounding applications.
