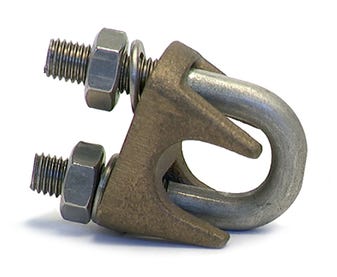

Earth Clamp for 19mm Rod | 16-120mm² Cable Range | High Copper Alloy & Corrosion Resistant by Cabac
The Cabac Earth Clamp 19mm Rod is designed for secure and reliable earthing connections, suitable for cables ranging from 16 to 120mm² and earth rods of 17-19mm diameter.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Earth Clamp 19mm ROD/16-120mm
Brand: Cabac
SKU: REP16-120
Alternatively Known As: Earth Rod Clamp, Grounding Clamp, Earthing Connector Clamp
Technical Specifications
- Material: High copper alloy casting
- Cable Range: 16-120mm²
- Rod Diameter Compatibility: 17-19mm
- U-bolt, nuts & spring washers: Stainless steel
- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- Single piece high copper alloy casting for durability and conductivity
- Contoured design to accept a wide range of earthing conductors
- Clamps earthing conductor directly to the earth rod
- Stainless steel U-bolt, nuts, and spring washers for corrosion resistance
- Suitable for cable range 16-120mm²
- Fits earth rods with diameter 17-19mm
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical grounding and earthing systems
- Industrial and commercial electrical installations
- Residential electrical safety grounding
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made with durable materials to ensure long service life and reduce replacement waste
- Corrosion-resistant components minimize environmental contamination
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Earth Clamp 19mm Rod for 16-120mm² cable is available for immediate purchase, ideal for electrical grounding and earthing applications.
