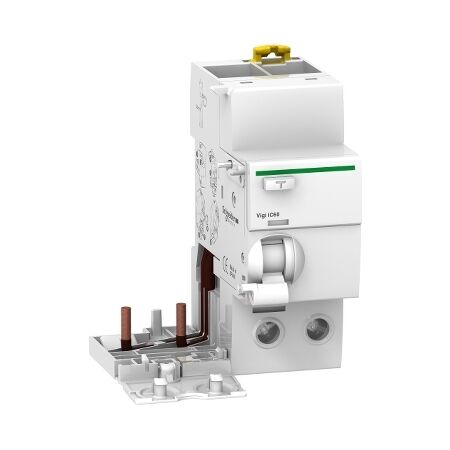

Earth Leakage Add-On Block 2P 63A | 300mA Sensitivity | Type A by Clipsal
Earth leakage add-on block with 63A current and 300mA sensitivity—ideal for small commercial installations. Built for enhanced safety, with instantaneous protection and compatibility with Acti9 iC60 ranges.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Earth leakage add-on block, 2P, 63A, 300mA, A type
Brand: Clipsal
SKU: A9V54263
Alternatively Known As: Residual Current Device, RCD, Earth Leakage Circuit Breaker, ELCB
Technical Specifications
- Rated current: 63 A
- Rated operational voltage: 230...415 V AC 50/60 Hz
- Earth-leakage sensitivity: 300 mA
- Type A earth-leakage protection class
- IP20 protection rating
- Rated insulation voltage: 500 V AC
- Rated impulse withstand voltage: 6 kV
- Pollution degree: 3
- Total power losses: 4.6 W
- Dimensions (H x L x W): 91mm x 73.5mm x 72mm
- Weight: 0.165 kg
Key Features
- Add-on residual current device for enhanced safety.
- Instantaneous earth-leakage protection.
- Compatible with Acti9 iC60 and Reflex iC60 ranges.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial installations requiring earth leakage protection.
Standards & Compliance
- Complies with EN/IEC 61009-1 and EN/IEC 61009-2-1 for safety and performance.
Environmental Benefits
- Green Premium product status indicating reduced environmental impact.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Earth Leakage Add-On Block is available now for immediate purchase. Ideal for small commercial applications requiring reliable earth leakage protection.
