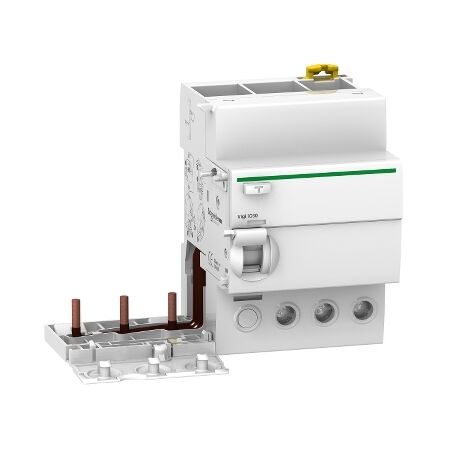

Earth Leakage Add-On Block 3P 63A | 300mA Sensitivity | A Type by Clipsal
Earth leakage add-on block with 3P and 63A capacity, offering 300mA sensitivity—ideal for small commercial installations. Built for enhanced safety, with compatibility for Acti9 iC60 and Reflex iC60 ranges.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Earth leakage add-on block, 3P, 63A, 300mA, A type
Brand: Clipsal
SKU: A9V54363
Alternatively Known As: Acti9 Vigi iC60, Earth Leakage Protection Device, Residual Current Device
Technical Specifications
- Rated current: 63 A
- Rated operational voltage: 230...415 V AC 50/60 Hz
- Earth-leakage sensitivity: 300 mA
- IP Rating: IP20 (modular enclosure IP40)
- Rated insulation voltage: 500 V AC
- Rated impulse withstand voltage: 6 kV
- Pollution degree: 3
- Total power losses: 6.9 W
- Dimensions (H x L x W): 91mm x 73.5mm x 117mm
- Weight: 0.21 kg
Key Features
- Add-on residual current device for enhanced safety.
- Instantaneous earth-leakage protection.
- Compatible with Acti9 iC60 and Reflex iC60 ranges.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial installations requiring earth leakage protection.
Standards & Compliance
- Complies with EN/IEC 61009-1 and EN/IEC 61009-2-1 for safety and performance.
Environmental Benefits
- Packaging made with recycled cardboard.
- No single-use plastic in packaging.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Earth Leakage Add-On Block is available now for immediate purchase. Ideal for small commercial installations requiring earth leakage protection.
