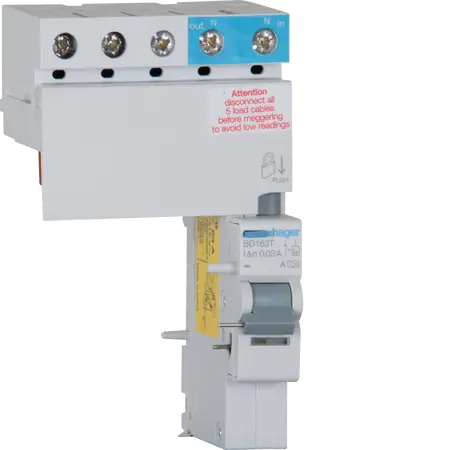

Earth Leakage Add-On Block 3P 63A | 30mA A Class | 1 Mod by Hager

BRAND: :hager

SKU: BD163T

$243.10 List price: $310.80

+ −

30 Days Return Delivery Options

Earth leakage add-on block with 3 poles and 63A current—ideal for residential, commercial, and industrial safety. Built for easy installation with screw terminals, offering 30mA residual current protection.

Description
Attachments

Product Name/Title: Earth leakage add-on-block 3P 63A 30mA A Class 1mod

Brand: Hager

SKU: BD163T

Alternatively Known As: Earth Leakage Circuit Breaker, Residual Current Device, RCD

Technical Specifications

Rated insulation voltage: 500 V
Rated impulse withstand voltage: 4000 V
Frequency: 50 Hz
Number of poles: 3
Neutral position: Right
Number of modules: 1
Dimensions (H x L x W): 121mm x 69mm x 71mm
Weight: 0.5 kg

Key Features

Rated operational voltage of 240 - 415 V.
Rated current of 63 A with a residual operating current of 30 mA.
Screw terminal connection for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Machinery and equipment protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Commitment to reducing carbon footprint and improving environmental performance.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager Earth Leakage Add-On Block 3P 63A 30mA A Class is available now for immediate purchase. Ideal for enhancing electrical safety in various applications.

BD163T (BD163T, 122 Kb) [Download]

PEP_HAGE-01158-V01.01-EN.pdf (PEP_HAGE-01158-V01.01-EN.pdf, 667 Kb) [Download]

reach_declaration_BD163T.pdf (reach_declaration_BD163T.pdf, 103 Kb) [Download]

RoHS-declaration-BD163T.pdf (RoHS-declaration-BD163T.pdf, 33 Kb) [Download]

(XP1_BD_TPN_6B5021D_WEB.pdf, 4,642 Kb) [Download]

(BX163T_ADDONBLOCKS.pdf, 317 Kb) [Download]

(DECLARATION_19_1421_01_19.pdf, 88 Kb) [Download]
