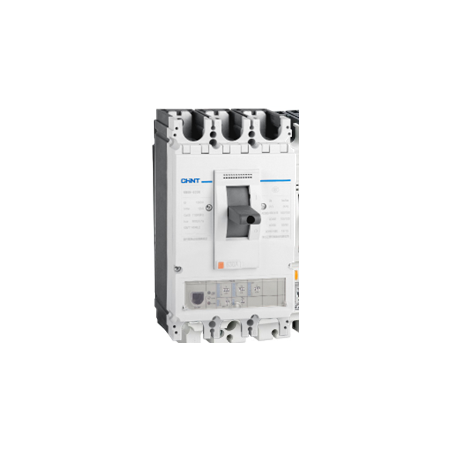

Earth Leakage MCCB 4P 125A 250A Frame NXMLE Chint

BRAND: CABAC
SKU: 411776
$1,039.80 List price: $1,386.50
+ −
30 Days Return Electricians Unlock Trade Access
Chint NXMLE-250S earth leakage MCCB 4P 125A features 250A frame, integrated earth leakage protection, and moulded case design. Ideal for sub-mains and feeders.

Alternatively Known As: CHINT NXMLE-250S/4300A 125A C Residual Current Circuit Breaker, Earth Leakage MCCB, Residual Current MCCB

Technical Specifications
  • Model: NXMLE-250S/4300A 125A C
  • Rated Current: 125A
  • Frame Size: 250AF
  • Number of Poles: 4P
  • Rated Operational Voltage: 380/400/415V AC
  • Frequency: 50/60Hz
  • Breaking Capacity: 35kA
  • Service Breaking Capacity: 18kA
  • Residual Current Settings: 100/200/300mA
  • Protection Delay: 0.1/0.2/0.3 seconds
  • Protection Functions: Earth leakage, overload and short circuit
  • Trip Mechanism: Thermal-magnetic
  • Operation: Manual toggle handle
  • Mounting: Fixed surface mounting
  • Compliance Basis: IEC/EN 60947-2
  • Dimensions (H x L x W): 170mm x 140mm x 98mm
  • Weight: 3 kg
Key Features
  • Integrated residual current protection in a moulded case circuit breaker
  • Four-pole switching for three-phase and neutral circuits
  • 250A frame with a 125A rated current
  • 35kA ultimate short-circuit breaking capacity
  • Selectable residual current sensitivity of 100, 200 or 300mA
  • Thermal-magnetic protection against overload and short circuit
  • Suitable for sub-mains, feeders and commercial or industrial distribution boards
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable switchboard requirements.
Applications
  • Sub-main circuit protection
  • Commercial and industrial feeder protection
  • Low-voltage distribution boards
  • Three-phase systems requiring earth leakage protection
  • Industrial and commercial power distribution installations
Standards & Compliance
  • AS/NZS IEC 60947.2 for low-voltage circuit breakers
  • AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
  • Moulded-case construction provides a durable service life, reducing replacement waste
  • Metal terminals and internal conductive components can be recovered through appropriate electrical equipment recycling
  • Integrated protection can help limit equipment damage and associated material waste following leakage or overcurrent faults
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
