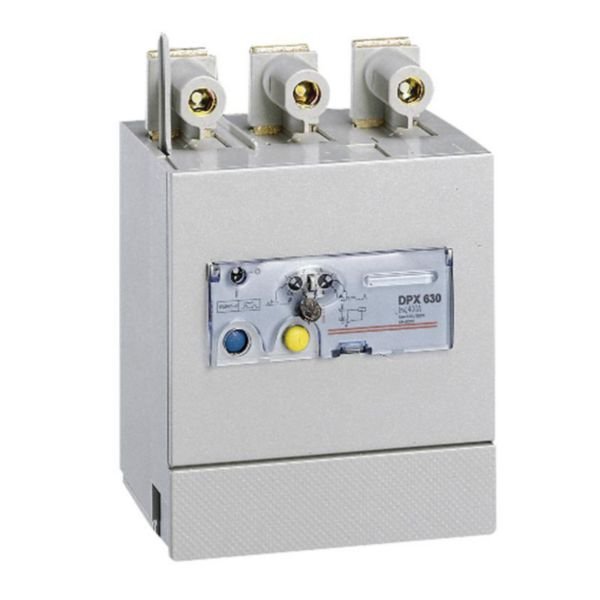

Earth Leakage Module 3 Poles | 400A Rated Current | Adjustable Sensitivity & Time Delay | @Each of 1 | by Legrand
The Earth Leakage Module 3 Poles is designed for DPX³ 630 circuit breakers, featuring a rated current of 400A and adjustable sensitivity settings from 0.03A to 3A. Ideal for electrical switchboards and power cabinets, this module enhances safety by preventing earth leakage faults, making it essential for industrial and commercial electrical distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Earth Leakage Module 3 Poles | 400A Rated Current | Adjustable Sensitivity & Time Delay | @Each of 1 | by Legrand
Brand: Legrand
SKU: 026060
Alternatively Known As: Earth Leakage Relay Module, Residual Current Device Module, 3 Pole Earth Fault Module
Technical Specifications
- Nominal current: 400 A
- Number of poles: 3
- Rated fault current adjustable from 0.03 A to 3 A
- Adjustable time delay up to 3000 ms
- Nominal voltage: 230-500 V AC
- Leakage current type: Type A
- Equipped with test and reset push-buttons
- Dimensions (H x L x W): 120mm x 70mm x 90mm
- Weight: 1.5 kg
Key Features
- 3-pole earth leakage module compatible with DPX³ 630 and DPX³-I 630 circuit breakers
- Adjustable and sealable sensitivity settings: 0.03 A, 0.3 A, 1 A, 3 A
- Adjustable time delay settings: 0, 0.3, 1, 3 seconds
- Equipped with test and reset push-buttons
- Nominal voltage range: 230 V to 500 V AC
- Mounted underneath the circuit breaker for compact installation
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX³ 630 circuit breakers.
Applications
- Electrical switchboards and power cabinets
- Industrial and commercial electrical distribution systems
- Protection of electrical circuits against earth leakage faults
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety by preventing earth leakage faults, reducing risk of electrical fires
- Supports energy efficiency by ensuring proper circuit protection and minimizing electrical losses
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects and performance issues.
Available Now
The Legrand Earth Leakage Module 3 Poles 400A for DPX³ 630 Circuit Breaker is available for immediate purchase, ideal for enhancing safety in industrial and commercial electrical switchboards.
