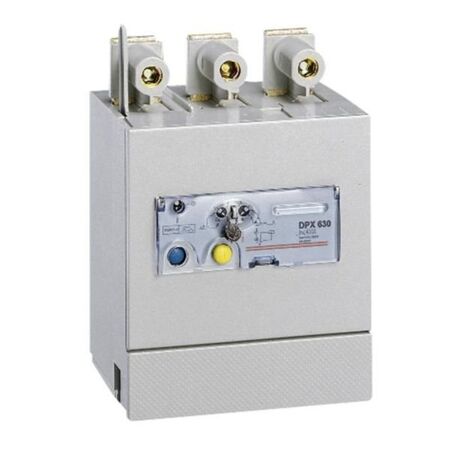

Earth Leakage Module 3 Poles 630A Rated Current Adjustable Sensitivity & Delay Legrand

BRAND: Legrand
SKU: 26064
$2,047.80 List price: $2,551.80
1 EA ($2,047.80 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The Earth Leakage Module 3 Poles is designed for DPX³ 630 circuit breakers, featuring a rated current of 630A and adjustable sensitivity settings from 0.03A to 3A.
Technical Specifications
  • Nominal current: 630 A
  • Rated fault current adjustable from 0.03 A to 3 A
  • Adjustable delay time up to 3000 ms
  • Number of poles: 3
  • Leakage current type: Type A
  • Nominal voltage: 230-500 V AC
  • Equipped with test and reset push-buttons
  • Dimensions (H x L x W): 150mm x 120mm x 100mm
  • Weight: 1.5 kg
Key Features
  • 3 poles earth leakage module compatible with DPX³ 630 and DPX³-I 630 circuit breakers
  • Adjustable and sealable sensitivity settings: 0.03 A, 0.3 A, 1 A, 3 A
  • Adjustable time delay settings: 0, 0.3, 1, 3 seconds
  • Equipped with test and reset push-buttons
  • Nominal voltage range: 230 V to 500 V AC
  • Mounted underneath the circuit breaker
  • Remote earth fault signalling contact
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX³ 630 circuit breakers.
Applications
  • Electrical switchboards and power cabinets
  • Industrial and commercial electrical installations
  • Protection of electrical circuits against earth leakage faults
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Enhances electrical safety by preventing earth leakage faults, reducing risk of electrical fires and equipment damage
  • Supports energy efficiency by ensuring safe operation of electrical systems
Warranty Information

Standard Legrand warranty applies, typically 2 years against manufacturing defects.

Available Now

The Legrand Earth Leakage Module 3 Poles 630A for DPX³ 630 Circuit Breaker is available for immediate purchase, ideal for enhancing safety in industrial and commercial electrical switchboards.

Technical Guide: Coordination between protection devices (EXB15015_TG_Coordination_EN.pdf, 25,131 Kb) [Download]

LE07066AC (LE07066AC.pdf, 898 Kb) [Download]

ex223001_0179 (ex223001_0179.pdf, 81 Kb) [Download]
