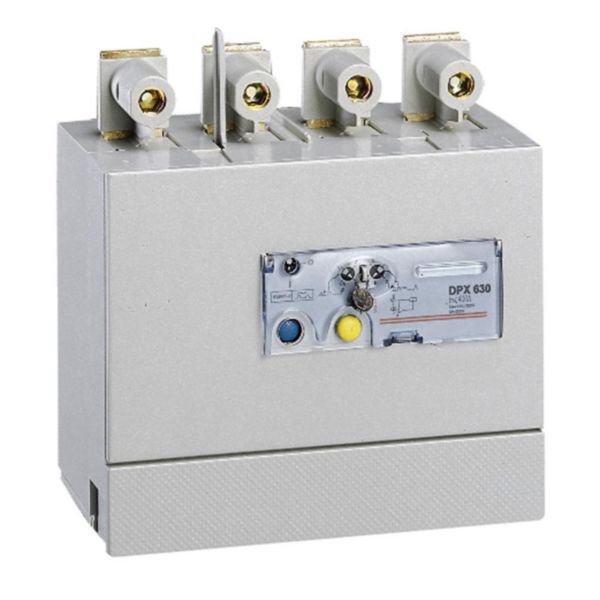

Earth Leakage Module 4 Poles | 400A Rated Current | Adjustable Sensitivity & Time Delay | by Legrand
The Earth Leakage Module 4 Poles is designed for DPX³ 630 circuit breakers, featuring a rated current of 400A and adjustable sensitivity settings from 0.03A to 3A. Ideal for industrial and commercial electrical distribution systems, this module enhances safety by preventing earth leakage faults, reducing the risk of electrical fires and equipment damage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Earth Leakage Module 4 Poles | 400A Rated Current | Adjustable Sensitivity & Time Delay | by Legrand
Brand: Legrand
SKU: 026061
Alternatively Known As: Earth Leakage Relay Module, Residual Current Device Module, 4 Pole Earth Leakage Module, DPX³ Earth Leakage Module
Technical Specifications
- Nominal current: 400 A
- Number of poles: 4
- Rated fault current adjustable between 0.03 A and 3 A
- Adjustable time delay up to 3000 ms
- Nominal voltage: 230-500 V~
- Leakage current type: Type A
- Equipped with test and reset push-buttons
- Dimensions (H x L x W): 120mm x 100mm x 150mm
- Weight: 1.5 kg
Key Features
- 4 poles earth leakage module compatible with DPX³ 630 and DPX³-I 630 circuit breakers
- Adjustable and sealable sensitivity settings: 0.03 A, 0.3 A, 1 A, 3 A
- Adjustable time delay settings: 0, 0.3, 1, 3 seconds
- Equipped with test and reset push-buttons
- Nominal voltage range: 230V~ to 500V~
- Mounted underneath the circuit breaker
- Remote earth fault signalling contact
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX³ 630 circuit breakers.
Applications
- Electrical switchboards and power cabinets
- Industrial and commercial electrical distribution systems
- Protection of electrical circuits against earth leakage faults
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances electrical safety by preventing earth leakage faults, reducing risk of electrical fires and equipment damage
- Supports energy-efficient electrical system protection
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Earth Leakage Module 4 Poles 400A for DPX³ 630 Circuit Breaker is available for immediate purchase, ideal for enhancing safety in industrial and commercial electrical switchboards.
