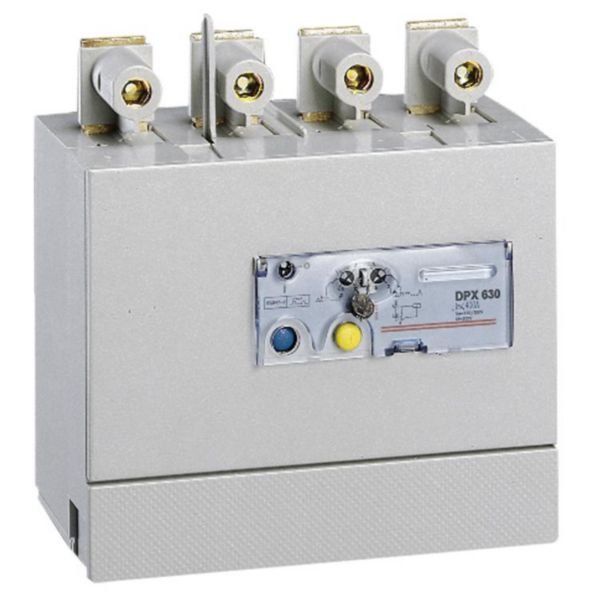

Earth Leakage Module 4 Poles | 630A Rated Current | Adjustable Sensitivity & Delay | by Legrand
The Earth Leakage Module 4 Poles is designed for DPX³ 630 circuit breakers, featuring a rated current of 630A and adjustable sensitivity settings from 0.03A to 3A. Ideal for electrical switchboards and industrial applications, this module enhances safety by preventing earth leakage faults and includes test and reset push-buttons for easy operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Earth Leakage Module 4 Poles | 630A Rated Current | Adjustable Sensitivity & Delay | by Legrand
Brand: Legrand
SKU: 026065
Alternatively Known As: Earth Leakage Relay Module, Residual Current Module, 4 Pole Earth Leakage Device, DPX³ Earth Leakage Module
Technical Specifications
- Nominal voltage: 230-500 V AC
- Nominal current: 630 A
- Rated fault current adjustable from 0.03 A to 3 A
- Max delay time: 3000 ms
- Adjustable delay settings: 0, 0.3, 1, 3 seconds
- Number of poles: 4
- Leakage current type: Type A
- Equipped with test and reset push-buttons
- Mounting position: underneath the circuit breaker
- Dimensions (H x L x W): 120mm x 100mm x 150mm
- Weight: 1.5 kg
Key Features
- 4-pole earth leakage module compatible with DPX³ 630 and DPX³-I 630 circuit breakers
- Adjustable and sealable sensitivity settings: 0.03 A, 0.3 A, 1 A, 3 A
- Adjustable time delay settings: 0, 0.3, 1, 3 seconds
- Equipped with test and reset push-buttons
- Nominal voltage range: 230 V to 500 V AC
- Nominal current rating: 630 A
- Remote earth fault signalling contact included
- Switch for mechanical and insulation tests
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX³ 630 circuit breakers.
Applications
- Electrical switchboards and power cabinets
- Industrial and commercial electrical distribution systems
- Protection of electrical circuits against earth leakage faults
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enhances electrical safety by preventing earth leakage faults, reducing risk of electrical fires and equipment damage
- Supports energy efficiency by ensuring safe operation of electrical systems
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Earth Leakage Module 4 Poles 630A for DPX³ 630 Circuit Breaker is available for immediate purchase, ideal for enhancing safety in industrial and commercial electrical switchboards.
