Home/Electrical/Switchgear/Residual Current Devices/Earth Leakage Relay 2081 | 0.03-5A Adjustable | Panel Mount | Alarm Function by NHP

Trade Discount 25%

IME Earth Leakage Relay 2081 Mining Kit Panel Mount Relay and Test Unit 110V AC 0.03 to 5A

Earth Leakage Relay 2081 | 0.03-5A Adjustable | Panel Mount | Alarm Function by NHP

BRAND: NHP

SKU: DSRM110VC

$2,197.20 List price: $2,917.60

+ −

30 Days Return Delivery Options

Earth leakage relay with 0.03-5A adjustable current range and alarm function—ideal for mining and industrial safety monitoring. Built for enhanced electrical protection, with panel mount design and IP40/IP20 protection.

Description
Attachments

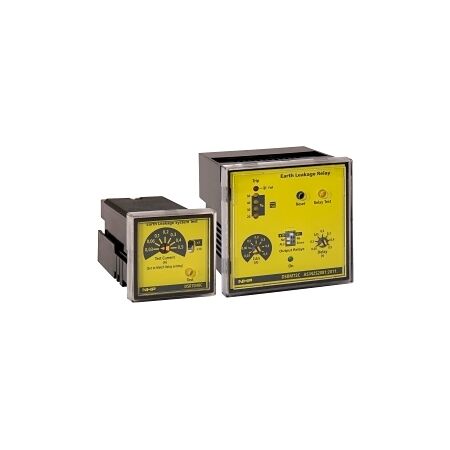

Product Name/Title: IME Earth Leakage Relay 2081 Mining Kit Panel Mount Relay and Test Unit 110V AC 0.03 to 5A

Brand: NHP

SKU: DSRM110VC

Alternatively Known As: Earth Leakage Relay, Residual Current Relay, Mining Relay

Technical Specifications

Voltage Type: AC
Rated Control Supply Voltage: 97-127 V
Rated Frequency: 47-63 Hz
Number of Contacts: 2 change-over contacts
Rated Burden: 2.5 VA
Adjustable Current Range: 0.03-5 A
Min Delay on Energization: 0.05 s
Max Delay on Energization: 0.5 s
Power Consumption: 3.5 W
Transformer Connection: Yes
With Alarm Function: Yes
Operating Temperature: -5 to 60 °C
Housing Material: Polycarbonate (PC)
Dimensions (H x L x W): 80mm x 120mm x 100mm
Weight: 1.5 kg

Key Features

Adjustable current range from 0.03 to 5 A.
IP40 front side protection and IP20 rear side protection.
Surface and panel mounting options available.
Alarm function for enhanced safety monitoring.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Mining: Safety monitoring in mining operations
Industrial: Protection in industrial electrical systems
Commercial: Use in commercial buildings for electrical safety

Standards & Compliance

Complies with relevant Australian safety standards for electrical devices.

Environmental Benefits

Designed to enhance electrical safety and prevent hazards.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The IME Earth Leakage Relay 2081 Mining Kit Panel Mount Relay and Test Unit 110V AC is available now for immediate purchase. Ideal for mining and industrial applications, ensuring safety and reliability.

Non-Returnable & Non-Cancellable

DSRM110VC-AU-Earth-Leakage-Relay-Mining-Datasheet.pdf (DSRM110VC-AU-Earth-Leakage-Relay-Mining-Datasheet.pdf, 336 Kb) [Download]
