IME Earth Leakage Relay 2081 Mining Panel Mount 48 x 48mm Test Unit 110V Ac 0 03Ma 5A

Earth Leakage Relay 2081 | 48x48mm Panel Mount | 110V AC | Adjustable 0.03-5A by NHP

BRAND: NHP

SKU: DSRTD48C110

$712.60 List price: $946.20

+ −

30 Days Return Delivery Options

Earth leakage relay with adjustable 0.03-5A current range and 48x48mm panel mount—ideal for mining and industrial safety. Built for reliable protection, with IP40 front protection and automatic reset function.

Description
Attachments

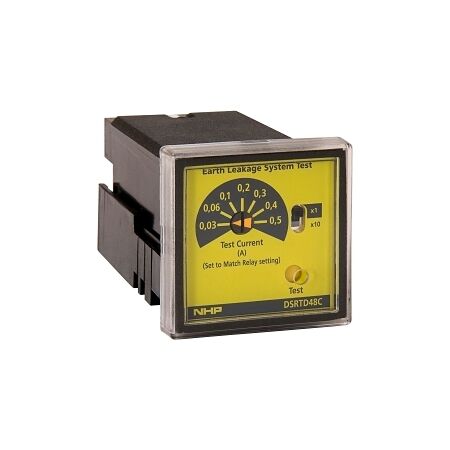

Product Name/Title: IME Earth Leakage Relay 2081 Mining Panel Mount 48 x 48mm Test Unit 110V Ac 0 03Ma 5A

Brand: NHP

SKU: DSRTD48C110

Alternatively Known As: Earth Leakage Relay, Residual Current Monitoring Relay

Technical Specifications

Voltage Type for Actuating: AC
Rated Control Supply Voltage: 97-127 V
Rated Frequency: 47-63 Hz
Rated Voltage: 97-127 V
Type of Electric Connection: Other
Adjustable Current Range: 0.03-5 A
Reset Function: Automatic No
Transformer Connection: Yes
Mounting Method: Surface and panel mounting
Housing Material: Polycarbonate (PC)
Degree of Protection IP Front Side: IP40
Degree of Protection IP Rear Side: IP20
Operating Temperature: -5-60 °C
Dimensions (H x L x W): 48mm x 81mm x 48mm
Weight: 0.5 kg

Key Features

Adjustable current range from 0.03 to 5 A.
Surface and panel mounting options available.
IP40 rated for front side protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Mining: Suitable for use in mining operations to ensure safety against earth leakage.
Industrial: Ideal for industrial applications requiring reliable earth leakage protection.

Standards & Compliance

Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.

Environmental Benefits

Enhances safety in mining operations, reducing the risk of electrical hazards.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The IME Earth Leakage Relay 2081 Mining Panel Mount is available now for immediate purchase, ideal for mining and industrial applications.

DSRTD48C110-AU-Earth-Leakage-Relay-Mining-Datasheet.pdf (DSRTD48C110-AU-Earth-Leakage-Relay-Mining-Datasheet.pdf, 379 Kb) [Download]
