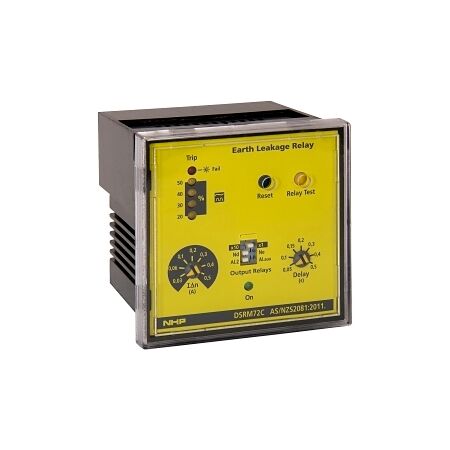

Earth Leakage Relay 72x72mm 24V 5A Grey NHP

BRAND: IME
SKU: DSRM72C24
$1,862.90 List price: $2,321.50
+ −
30 Days Return Electricians Unlock Trade Access
NHP Earth Leakage Relay features 5A rating and IP40 rating. Suited for AU switchboard circuit protection.
Technical Specifications
  • Voltage Type for Actuating: DC
  • Rated Control Supply Voltage: 20-26 V
  • Rated Frequency: 47-63 Hz
  • Number of Contacts: 2 (Change Over Contact)
  • Rated Burden: 2.5 VA
  • Power Consumption: 3.5 W
  • Adjustable Delay on Energization Time: 0.05 s to 0.5 s
  • Housing Material: Polycarbonate (PC)
  • Operating Temperature: -5 to 60 °C
  • Dimensions (H x L x W): 72mm x 75mm x 72mm
  • Weight: 0.5 kg
Key Features
  • Adjustable current range from 0.03 to 5 A.
  • IP40 front side protection and IP20 rear side protection.
  • Surface and panel mounting options available.
  • Alarm function included for enhanced safety.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Mining: Suitable for use in mining operations to ensure safety against earth leakage.
  • Industrial: Ideal for various industrial applications requiring reliable earth leakage protection.
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Enhances safety in mining operations, reducing the risk of electrical hazards.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The IME Earth Leakage Relay 2081 Mining Panel Mount is available now for immediate purchase, ideal for mining and industrial applications.

DSRM72C24-AU-Earth-Leakage-Relay-Mining-Datasheet.pdf (DSRM72C24-AU-Earth-Leakage-Relay-Mining-Datasheet.pdf, 403 Kb) [Download]
