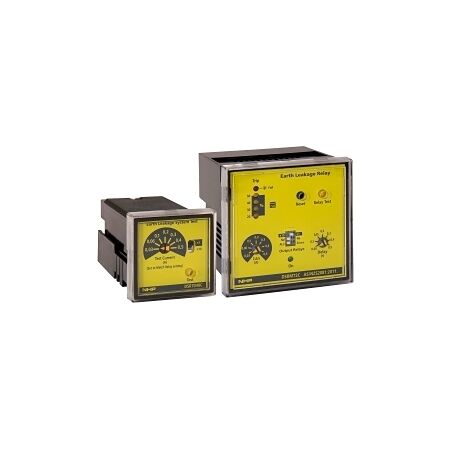

Earth Leakage Relay 97-127V 5A Grey NHP
NHP Earth Leakage Relay features 5A rating and IP40 rating. Suited for AU switchboard circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage Type: AC
- Rated Control Supply Voltage: 97-127 V
- Rated Frequency: 47-63 Hz
- Number of Contacts: 2 change-over contacts
- Rated Burden: 2.5 VA
- Adjustable Current Range: 0.03-5 A
- Min Delay on Energization: 0.05 s
- Max Delay on Energization: 0.5 s
- Power Consumption: 3.5 W
- Transformer Connection: Yes
- With Alarm Function: Yes
- Operating Temperature: -5 to 60 °C
- Housing Material: Polycarbonate (PC)
- Dimensions (H x L x W): 80mm x 120mm x 100mm
- Weight: 1.5 kg
Key Features
- Adjustable current range from 0.03 to 5 A.
- IP40 front side protection and IP20 rear side protection.
- Surface and panel mounting options available.
- Alarm function for enhanced safety monitoring.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Mining: Safety monitoring in mining operations
- Industrial: Protection in industrial electrical systems
- Commercial: Use in commercial buildings for electrical safety
Standards & Compliance
- Complies with relevant Australian safety standards for electrical devices.
Environmental Benefits
- Designed to enhance electrical safety and prevent hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The IME Earth Leakage Relay 2081 Mining Kit Panel Mount Relay and Test Unit 110V AC is available now for immediate purchase. Ideal for mining and industrial applications, ensuring safety and reliability.
Non-Returnable & Non-Cancellable
