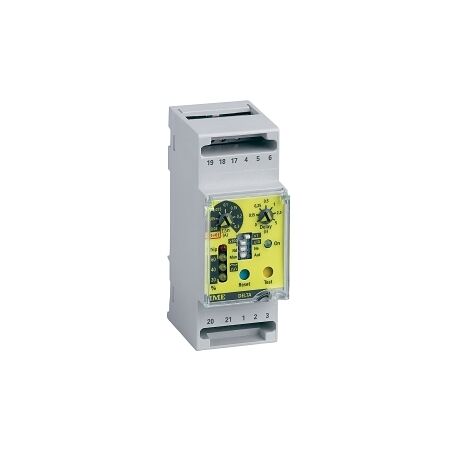

IME Earth Leakage Relay DIN Mount 2Pole 1 Changeover Contact 24 to 150V DC

Earth Leakage Relay DIN Mount | 24-150V DC | 2Pole 1 Changeover | IP20 by NHP

BRAND: NHP

SKU: RD3AF1H

$1,661.70 List price: $2,206.60

+ −

30 Days Return Delivery Options

Earth leakage relay with 24-150V DC range and 2Pole 1 changeover contact—ideal for industrial, commercial, and residential safety. Built for easy DIN rail mounting, with automatic reset and alarm functions for enhanced protection.

Description
Attachments

Product Name/Title: IME Earth Leakage Relay DIN Mount 2Pole 1 Changeover Contact 24 to 150V DC

Brand: NHP

SKU: RD3AF1H

Alternatively Known As: Earth Leakage Relay, Residual Current Relay, RCD Relay

Technical Specifications

Voltage Type for Actuating: DC
Rated Control Supply Voltage: 20-150 V
Rated Frequency: 47-63 Hz
Number of Contacts: 1 Changeover Contact
Rated Burden: 2.5 VA
Type of Electric Connection: Screw connection
Max Permitted Delay on Energization Time: 5 s
Power Consumption: 2 W
Transformer Connection: Yes
Degree of Protection: IP20
Operating Temperature: -10 to 55 °C
Dimensions (H x L x W): 89mm x 66mm x 35mm
Weight: 0.5 kg

Key Features

DIN rail mounting for easy installation.
Adjustable current range from 0.03 to 30 A.
Automatic reset function for convenience.
Alarm function for enhanced safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Machinery and equipment protection
Commercial: Electrical installations requiring earth leakage protection
Residential: Safety in home electrical systems

Standards & Compliance

Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The IME Earth Leakage Relay DIN Mount is available now for immediate purchase. Ideal for industrial, commercial, and residential applications requiring earth leakage protection.

RD3AF1H-AU-Earth-Leakage-Relay-DIN-Datasheet.pdf (RD3AF1H-AU-Earth-Leakage-Relay-DIN-Datasheet.pdf, 267 Kb) [Download]
