Earth Leakage Relay Panel Mount | 48x48mm | 240V AC | 1 Changeover Contact by NHP
Earth leakage relay with 48x48mm panel mount and 240V AC operation—ideal for industrial, commercial, and residential safety. Built for reliable protection, with adjustable current range and automatic reset function.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

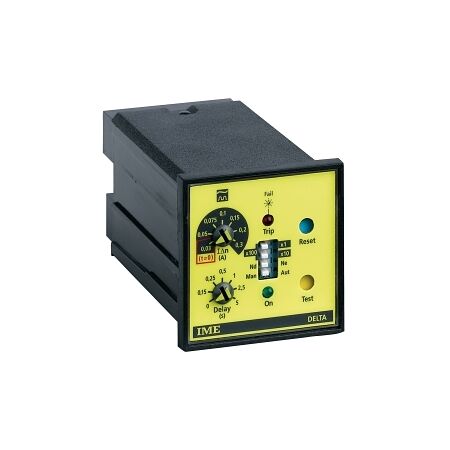

Product Name/Title: IME Earth Leakage Relay Panel Mount 48 x 48mm 1 Changeover Contact 240V AC
Brand: NHP
SKU: RD1DF14
Alternatively Known As: Earth Leakage Relay, Residual Current Relay, RCD Relay
Technical Specifications
- Voltage Type for Actuating: AC
- Rated Control Supply Voltage: 204-264 V
- Rated Frequency: 47-63 Hz
- Number of Contacts: 1 Changeover Contact
- Rated Burden: 2.5 VA
- Rated Voltage: 204-264 V
- Type of Electric Connection: Other
- Max Permitted Delay on Energization Time: 5 s
- Power Consumption: 2 W
- Transformer Connection: Yes
- With Alarm Function: Yes
- Operating Temperature: -5 to 50 °C
- Dimensions (H x L x W): 48mm x 113mm x 48mm
- Weight: 0.5 kg
Key Features
- Adjustable current range from 0.03 to 30 A.
- Automatic reset function for convenience.
- Surface and panel mounting options available.
- IP40 front protection and IP20 rear protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment protection
- Commercial: Electrical installations requiring earth leakage protection
- Residential: Safety in home electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The IME Earth Leakage Relay Panel Mount is available now for immediate purchase, ideal for ensuring safety in electrical systems.
