Earth Rod Box Polycrete | 40mm Cable Entry | High Chemical Resistance | Durable Design by Cabac

BRAND: CABAC
SKU: ERB2
$764.80 List price: $925.60
+

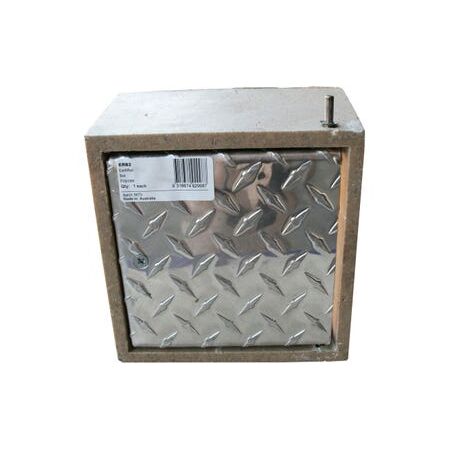

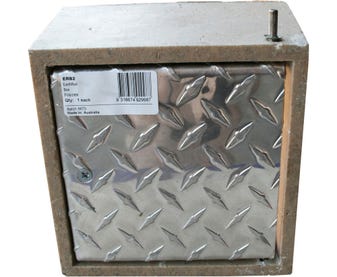

The Cabac Earth Rod Connection Box Polycrete with Aluminium Lid provides a durable and chemically resistant solution for electrical earthing connections, suitable for harsh environments.

Product Name/Title: EarthRod Box Polycrete w alumin lids

Brand: Cabac

SKU: ERB2

Alternatively Known As: Earth Rod Box, Earth Rod Connection Pit, Polycrete Earth Box, Earthing Connection Box

Technical Specifications
  • Material: Polymer concrete body with aluminium lid
  • Cable Entry Diameter: 40mm at back of body
  • Dimensions: 200mm (L) x 220mm (W) x 150mm (H)
  • Hinged aluminium lid size: 170mm x 170mm
  • High electrical resistivity and low porosity
  • Dimensions (H x L x W): 150mm x 200mm x 220mm
  • Weight: 5 kg
Key Features
  • Polymer concrete pit construction offers excellent strength to weight ratio
  • Excellent electrical resistivity and low porosity
  • High resistance to chemicals, weathering, and biological attack
  • 40mm diameter cable entry at back of body
  • Hinged aluminium lid for secure closure
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
  • Electrical earthing and bonding systems
  • Industrial and commercial electrical installations
  • Outdoor and underground electrical grounding
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable polymer concrete reduces need for frequent replacements
  • Resistant to environmental degradation, minimizing waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The Cabac Earth Rod Connection Box Polycrete with Aluminium Lid is available now for immediate purchase. Ideal for electrical earthing and bonding applications in industrial and commercial settings.
