Trade Discount 17%

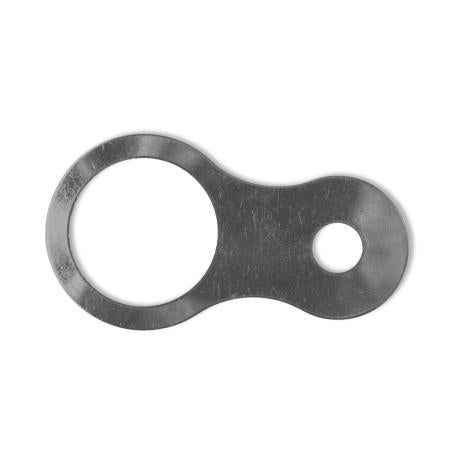

Earth Tag Nickel Plated Brass | Fits M40 Threaded Cable Gland | 7-13.5mm Bolt Hole | by Wattmaster
The Earth Tag Nickel Plated Brass is designed to fit M40 threaded cable glands, ensuring secure earth continuity for electrical installations. With a bolt hole size of 7-13.5mm and a unique ET82 design featuring a 20° bend at the neck, this tag is perfect for industrial and commercial applications, providing reliable grounding and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Earth Tag Nickel Plated Brass | Fits M40 Threaded Cable Gland | 7-13.5mm Bolt Hole | by Wattmaster
Brand: Wattmaster
SKU: ALCET40
Alternatively Known As: Earth Tag for Cable Gland, Nickel Plated Earth Tag, M40 Earth Tag, Cable Gland Earth Connector
Technical Specifications
- Material: Nickel plated brass
- Fits: M40 threaded cable gland
- Bolt hole size: 7-13.5mm
- Design: ET82 with 20° bend at neck
- Dimensions (H x L x W): 10mm x 50mm x 40mm
- Weight: 0.1 kg
Key Features
- Functions as a means of connection around the cable gland
- Guarantees earth continuity between the electrical apparatus and the cable gland
- Made from durable nickel plated brass
- Bolt connection hole size varies from 7-13.5mm
- ET82 model supplied with 20° bend at neck for ease of installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper earth continuity and compliance with electrical safety standards.
Applications
- Electrical installations requiring secure earth continuity
- Industrial and commercial cable gland assemblies
- Electrical apparatus grounding
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Nickel plating provides corrosion resistance, extending product life and reducing waste
- Supports safe electrical grounding, preventing electrical faults and hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Earth Tag Nickel Plated Brass for M40 Threaded Cable Gland is available for immediate purchase, ideal for electrical grounding applications in industrial and commercial settings.
